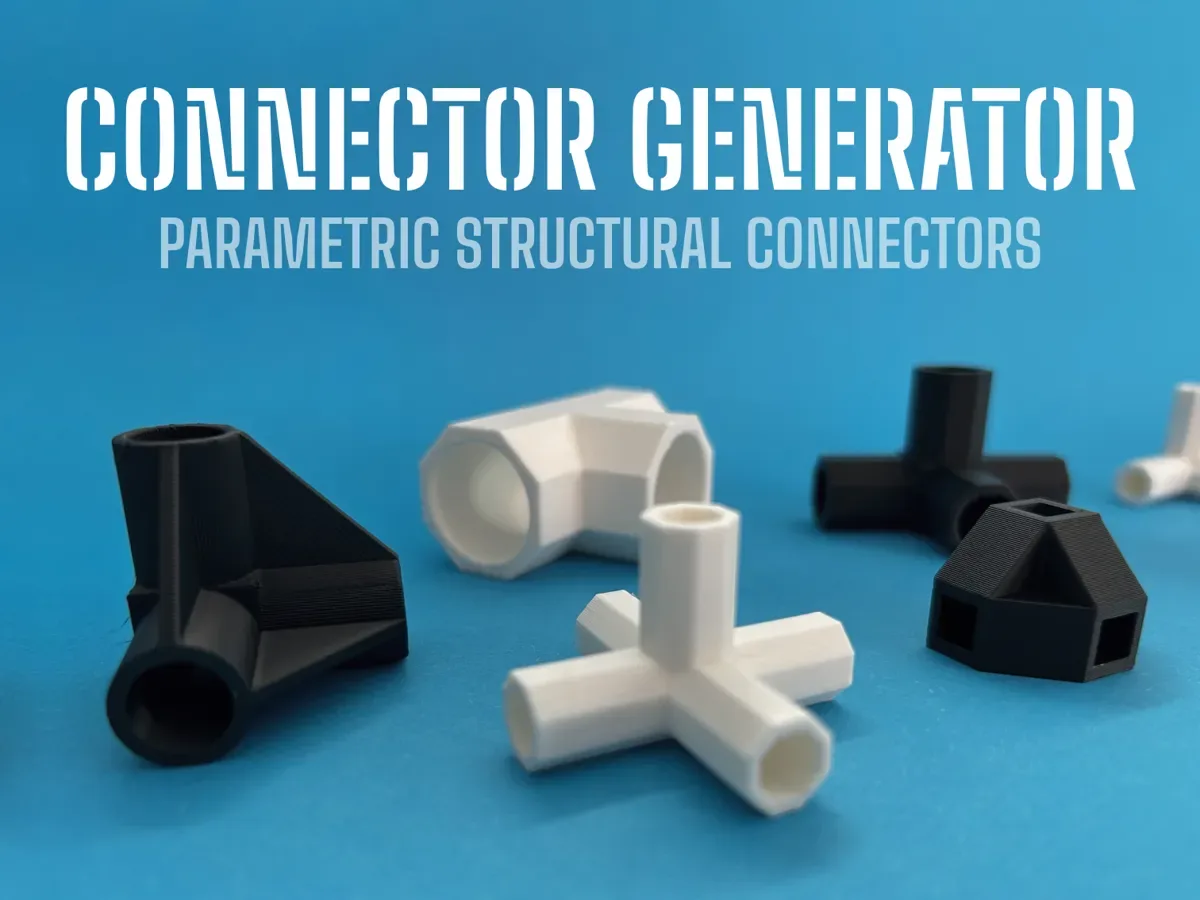

Connector Generator - Parametric Connectors

Designer

koolm

Designer relation

Followed

Kategori

Hobby & DIY

Licens

Standard Digital File License

$ ↺

Se platformens konkrete vilkår.

Designer commercial

MakerWorld Commercial License

Først set

2026-07-15 10:58

Sidst set

2026-07-15 10:58

Tags

connector connectors tube pin beam hose wire openscad generator corner structure structural stack connect extend gardening building support reinforce pvc pipe tent fit fitting adapter modular custom customize

Beskrivelse

Looking for Custom Connectors? Look no further. This OpenSCAD script allows you to generate a wide variety of parametric connectors with fully customizable geometry. Whether you need round, square, or octagonal connectors, this script lets you design precise, modular joints for structural assemblies, toys, PVC fittings, DIY builds, and more. Click on Customize to open the generator. Using Bambu Studio or Bambu Handy? Visit Makerworld.com to customize this model. 🚀 Quick Start Create your connector in no-time. Here’s how to get started: Define Your Connector Set up the core structure by choosing the arm shape (round, square, or octagonal), selecting the number of arms, and adjusting their size, length, and wall thickness. The hub shape can match the arms or be customized separately. Customize Advanced Options Fine-tune the internal hole shape and adjust clearance for precise fits. Control the starting orientation (upright or flat) and tweak arm rotation angles in the X & Y directions. If needed, enable support structures between arms with adjustable thickness and taper. Export & Print Once customized, export your model for slicing and printing. Your connector is now ready for assembly! ⭐ Features Fully Customizable Easily adjust every aspect for precise structural fits. Versatile Design Create multi-arm connectors in various shapes, sizes, and orientations. Reinforcement support Add optional supports between arms for extra strength and durability. Precision Modeling Generates clean, accurate geometry for reliable connections. 🛠️ Changelog v1.1 Added support for variable arm sizes. v1.2 (NEW) Added hub stop option to limit tube insertion depth. Fixed decimal values for variable arm sizes and angles. Reworked support geometry to use explicit arm directions. Added support web placement for angled arms. 📜 Maker Scripts
