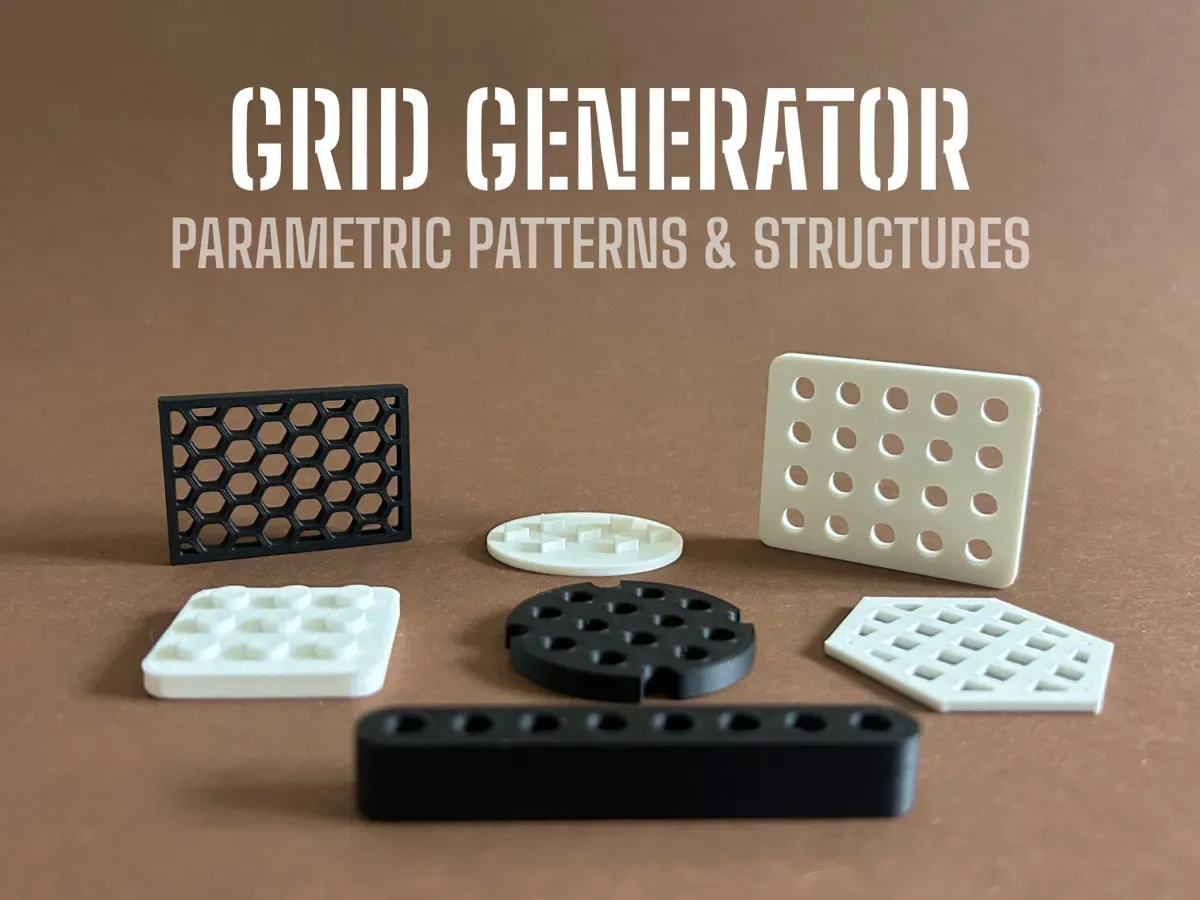

Grid Generator - Parametric Patterns & Structures

Designer

koolm

Designer relation

Followed

Kategori

Art

Licens

Standard Digital File License

$ ↺

Se platformens konkrete vilkår.

Designer commercial

MakerWorld Commercial License

Først set

2026-07-15 10:58

Sidst set

2026-07-15 10:58

Tags

grid grids pattern shapes generator openscad custom walls panels coaster honeycomb hex storage bits structural

Beskrivelse

Looking for Parametric Grids? Look no further. This OpenSCAD script generates customizable grid patterns with a variety of shapes and configurations. Whether you need honeycomb panels, perforated sheets, ventilation grids, or decorative coasters, this tool provides full control over rows, columns, spacing, and boolean operations to create the perfect pattern for your needs. Click on Customize to open the generator. Using Bambu Studio or Bambu Handy? Visit Makerworld.com to customize this model. 🚀 Quick Start 1. Configure Your Grid Define the rows and columns to structure your pattern. Choose from various shapes like rectangles, hexagons, or ellipses. The mode parameter controls how the pattern interacts with the base — cut out, emboss, or merge seamlessly. 2. Customize the Base & Pattern Select a base shape, adjust its thickness, frame, and rounding. Modify the pattern's depth, elevation, and rotation to refine your design. 3. Render & Export Once customized, generate the grid and export it for slicing. Use the default print profile settings or fine-tune your slicer settings for optimal results. Then, print your grid and enjoy! ⭐ Features Fully Customizable Adjust grid size, shape, spacing, and depth to create unique patterns. Multiple Pattern Types Choose from rectangles, ellipses, hexagons, octagons, pentagons, and triangles for endless design possibilities. Flexible Base Options Configure base shape, thickness, frame, and corner rounding to match your needs. Boolean Operations Use subtract, union, or intersect modes to cut out, merge, or overlay patterns seamlessly. 📜 Maker Scripts
