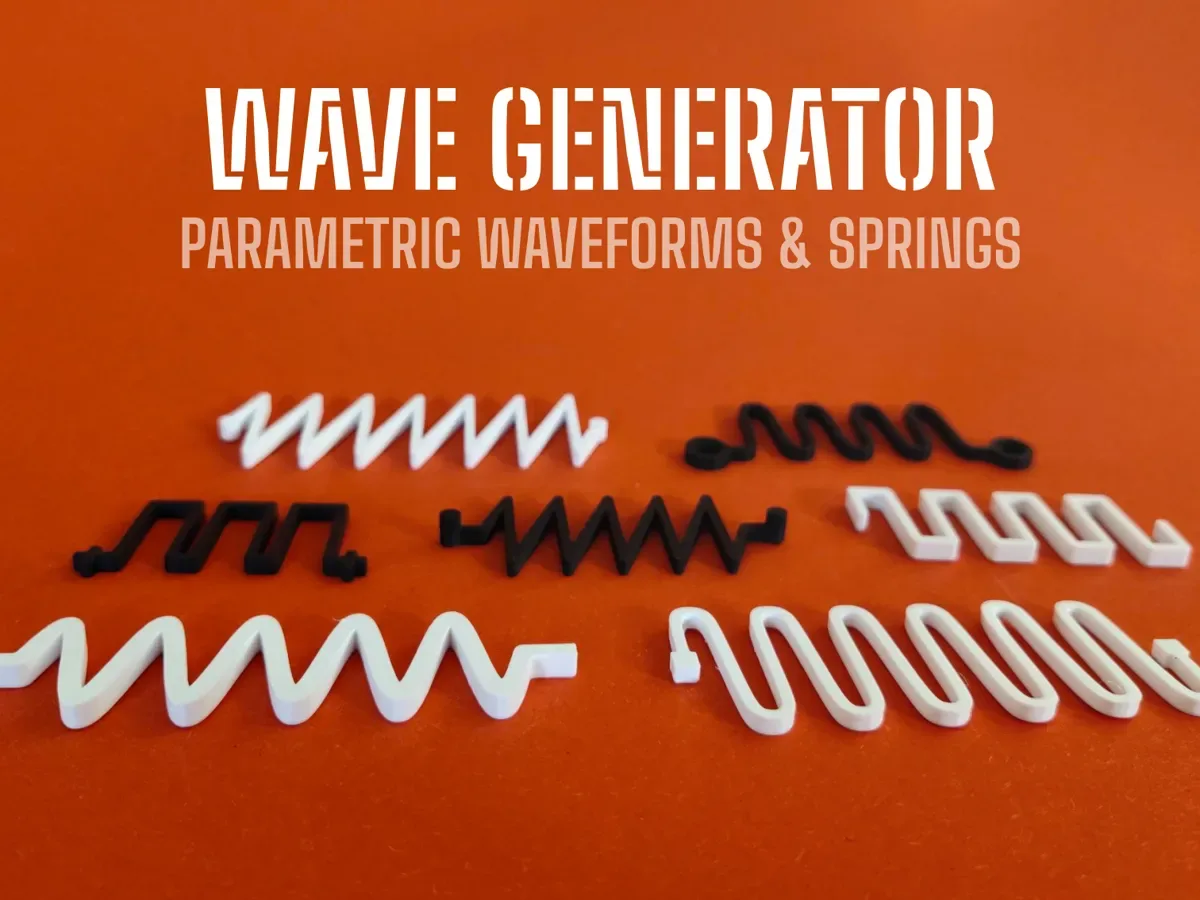

Wave Generator - Parametric Waveforms & Springs

Designer

koolm

Designer relation

Followed

Kategori

Education

Licens

Standard Digital File License

$ ↺

Se platformens konkrete vilkår.

Designer commercial

MakerWorld Commercial License

Først set

2026-07-15 10:58

Sidst set

2026-07-15 10:58

Tags

waves waveform signal spring coil generator openscad custom customize amplitude frequency sound sine square sawtooth triangle pulse wave phase interference springs

Beskrivelse

Looking for Waveforms? Look no further. This OpenSCAD script generates parametric waveforms based on the mathematical principles. Whether you need smooth sine waves, sharp square waves, or custom pulse patterns, this tool gives you full control over natural parameters like amplitude, frequency, and phase to design waves tailored to your needs. Perfect for functional springs, mechanical designs, signal processing, education, and artistic purposes, this script transforms pure math into physical form - making wave theory both practical and tangible. Click on Customize to open the generator. Using Bambu Studio or Bambu Handy? Visit Makerworld.com to customize this model. 🚀 Quick Start 1. Select Wave Parameters Define the key parameters for your waveform: Amplitude: Controls the height of the wave from peak to trough. Frequency: Determines the number of full wave cycles within the total length. Length: Sets the total horizontal span of the waveform. Thickness: Defines the stroke width of the wave path. 2. Customize Your Wave Fine-tune your wave with versatile options: Wave Type: Choose from sine, square, triangle, sawtooth, or pulse waveforms. Phase Offset: Adjusts the wave’s starting position for alignment. Delta: Softens square wave transitions for rounded corners. Interference: Adds constructive or destructive wave interference for complex patterns. Duty Cycle: Controls high-state duration for pulse waves. 3. Render and Export Once customized, generate the wave and export it for slicing. Use the recommended print profile (0.16mm High Quality) or fine-tune your slicer settings for optimal results. Then, print your custom wave and enjoy! ⭐ Features Fully Customizable Easily adjust amplitude, frequency, phase, and interference for precise waveform control. Multiple Wave Types Generate sine, square, triangle, sawtooth, and pulse waves with adjustable smoothing and duty cycles. Precision Modeling Produces mathematically accurate waveforms. Attachment & Endcaps Customize wave endings with built-in endcaps and extension options for seamless integration. 📜 Maker Scripts Boost Me (for free) Your support helps me maintain and create new Maker Scripts. Thank you! Boost
