Pulley Generator - Parametric Timing Belt Pulleys

Designer

koolm

Designer relation

Followed

Kategori

Hobby & DIY

Licens

Standard Digital File License

$ ↺

Se platformens konkrete vilkår.

Designer commercial

MakerWorld Commercial License

Først set

2026-07-15 10:58

Sidst set

2026-07-15 10:58

Tags

pulley pulleys timing belt parametric openscad generator mxl l 40dp hdt gt2 t5 t10 synchronous custom customize bore flange hub screw keyway 轴 power-transmission

Beskrivelse

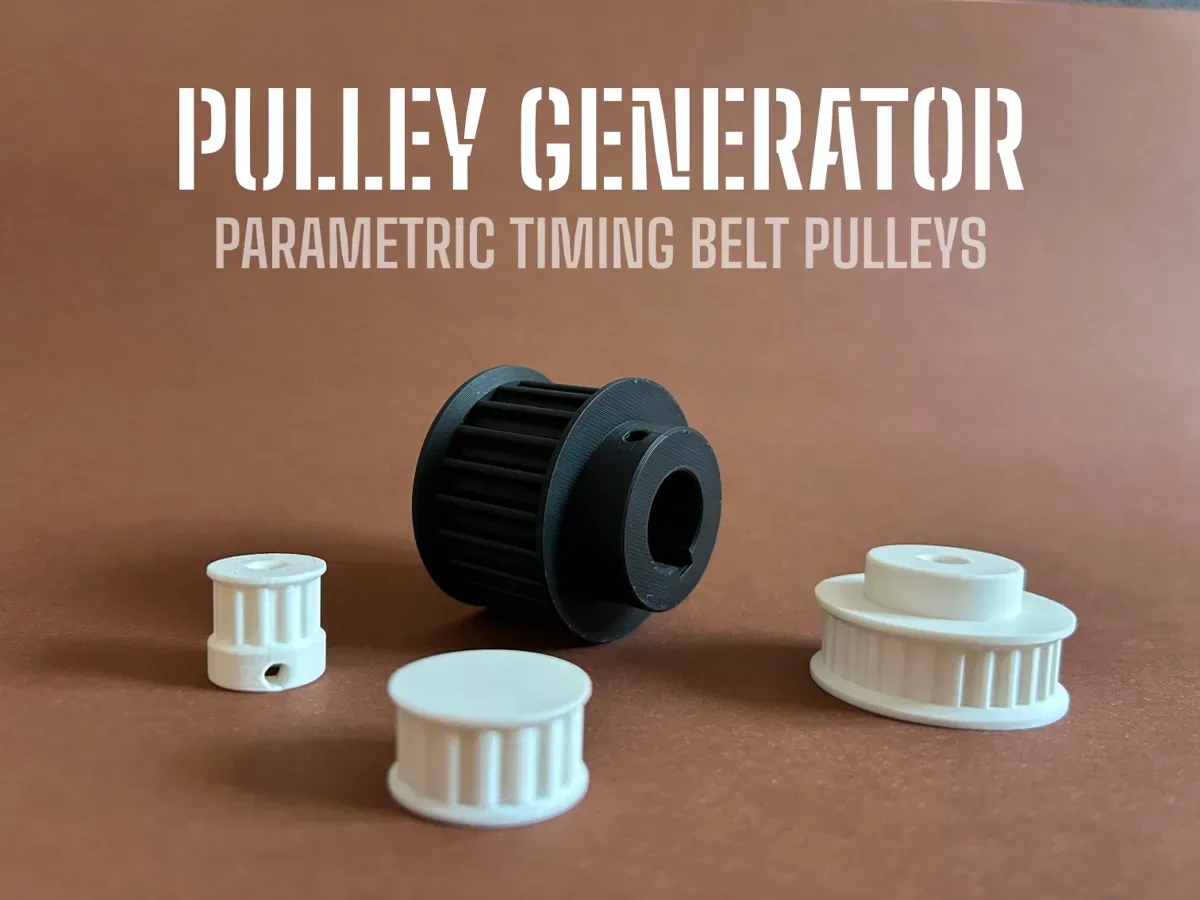

Looking for Timing Pulleys? Look no further. This OpenSCAD script allows you to generate a wide variety of parametric timing pulleys with customizable profiles, dimensions, and hub configurations. Supporting industry-standard belt types such as MXL, XL, L, GT2, HTD, T-series, and more, this script is perfect for designing custom drive systems, robotics, automation projects, and 3D-printed mechanisms. Click on Customize to open the generator. Using Bambu Studio or Bambu Handy? Click here to customize the model on Makerworld.com. 🚀 Quick Start 1. Select a Pulley Type Choose from a variety of timing belt profiles. Adjust key parameters like tooth count and pulley width to match your belt specifications. 2. Customize Your Pulley Each pulley type offers configuration options: Flange Configuration: Choose whether your pulley has no flanges, a top flange, or both flanges for belt retention. Adjust flange height, thickness, and taper to suit your needs. Bore Type: Select the bore type, including cylindrical, keyway, D-bore, or hex, and customize its dimensions for a precise fit. Hub & Mounting: Opt to include a hub for additional shaft support. Configure set screws with adjustable diameter, position, and count to ensure secure attachment. 3. Render and Export Once customized, generate the pulley and export it for slicing and printing. Enjoy! ⭐ Features Multiple Belt Profiles Supports industry-standard timing belt profiles, including GT2, HTD, T-series, XL, L, and more. Customizable Geometry Fine-tune multiple aspects of the pulley like its dimensions, hub, retainers, bore and mounting options. Precision Modeling Built to match real-world timing belt pulley standards while maintaining clean geometry. 3D Printing Ready Tooth clearance is automatically set. Screw holes feature a teardrop shape for improved printability. 🛠️ Changelog v1.1 Added option to override keyway size for custom dimensions. Added support for UTS (inch-based) screws, including #4 to 3/4" sizes. Enhanced screw hole placement with adjustable count, angle, and offset. 📜 Maker Scripts Boost Me (for free) Your support helps me create and maintain Maker Scripts. Thank you! Boost
