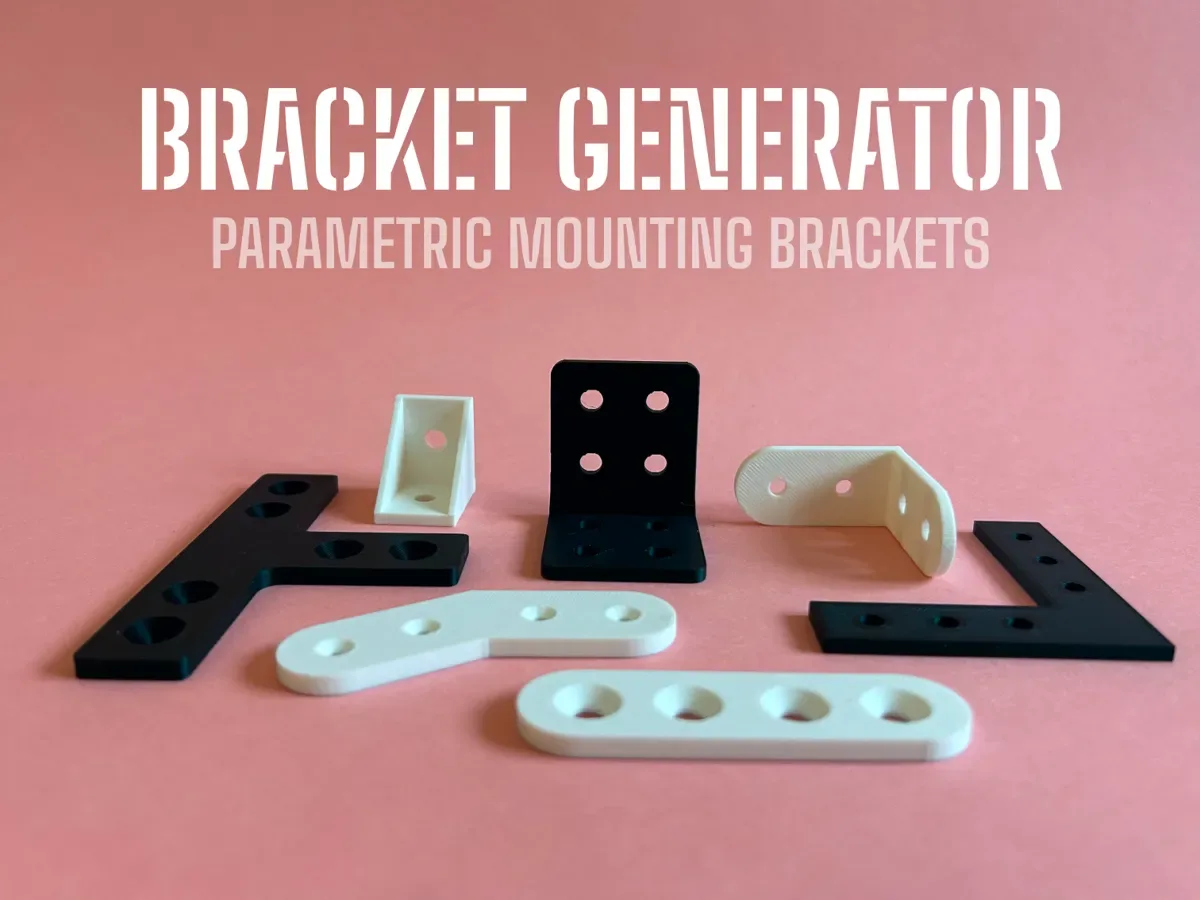

Bracket Generator - Parametric Mounting Brackets

Designer

koolm

Designer relation

Followed

Kategori

Hobby & DIY

Licens

Standard Digital File License

$ ↺

Se platformens konkrete vilkår.

Designer commercial

MakerWorld Commercial License

Først set

2026-07-15 10:58

Sidst set

2026-07-15 10:58

Tags

bracket brackets mount mounting connect reinforce openscad generator angle bracket corner bracket flat bracket l-bracket y-bracket surface joint angle screw screws holes grid iso uts counterbore thread support flange corner connector

Beskrivelse

Looking for Mounting Brackets? Look no further. This OpenSCAD script allows you to generate a wide variety of parametric mounting brackets with fully customizable geometry and configurations. Whether you need Angle, Corner, Flat, T-, L- or Y-brackets, this script lets you design brackets tailored to your specific needs. Perfect for prototyping, assembly projects, and DIY construction. Click on Customize to open the generator. 🚀 Quick Start 1. Select Bracket Type Choose the bracket type that suits your project needs: Angle Bracket: Adjustable angle for corner or structural supports. Flat Bracket: Connects flat surfaces. T-Bracket: Joins surfaces perpendicularly for T-shaped connections. 2. Customize Your Bracket Tailor your bracket with these options: Dimensions: Adjust Thickness, Width, Length, and Interior Angle. Edges & Corners: Add Rounding for smooth edges or Fillet Radius for stronger joints. Screw Holes: Define flexible Hole Grid patterns with adjustable rows, columns, and staggered layouts for each bracket arm. Customize spacing, offset, and screw types (ISO/UTS). Optionally set Counterbore and Threading for a perfect fit. Support Structures: Reinforce Angle Brackets with Flanges, adjustable for Taper and Thickness. 3. Render and Export After customization, optionally adjust settings in the Render section: FDM Optimization – Adjusts orientation and adds teardrop shapes for cleaner screw holes in 3D printing (if needed). Mirror Model – Easily create mirrored versions for symmetrical installations. Once ready, export your model for slicing and printing. Your bracket is then ready for installation! ⭐ Features Parametric Customization Fine-tune every aspect of the bracket for precise mounting and structural integrity. Versatile Design Create Angle, Corner, Flat, T-, Y- and L-Brackets, and everything in between. Precision Modeling Produces clean geometry and accurate measurements. FDM Optimization Designed with 3D printing in mind. 🛠️ Changelog v1.1 Added the ability to specify screw hole placement. v1.2 (NEW) Added three-way fillets for T-bracket arm corners with variable angles. Added straight bracket type for single-piece perforated strips and plates. 📜 Maker Scripts Boost Me (for free) Your support helps me maintain and create new Maker Scripts. Thank you! Boost
