Belt Generator - Parametric Timing Belts

Designer

koolm

Designer relation

Followed

Kategori

Hobby & DIY

Licens

Standard Digital File License

$ ↺

Se platformens konkrete vilkår.

Designer commercial

MakerWorld Commercial License

Først set

2026-07-15 10:58

Sidst set

2026-07-15 10:58

Tags

belt belts timing belt parametric openscad generator mxl xl l 40dp t5 t10 gt2 at5 htd tooth teeth double sided loop straight synchronous synchronous belt customize custom

Beskrivelse

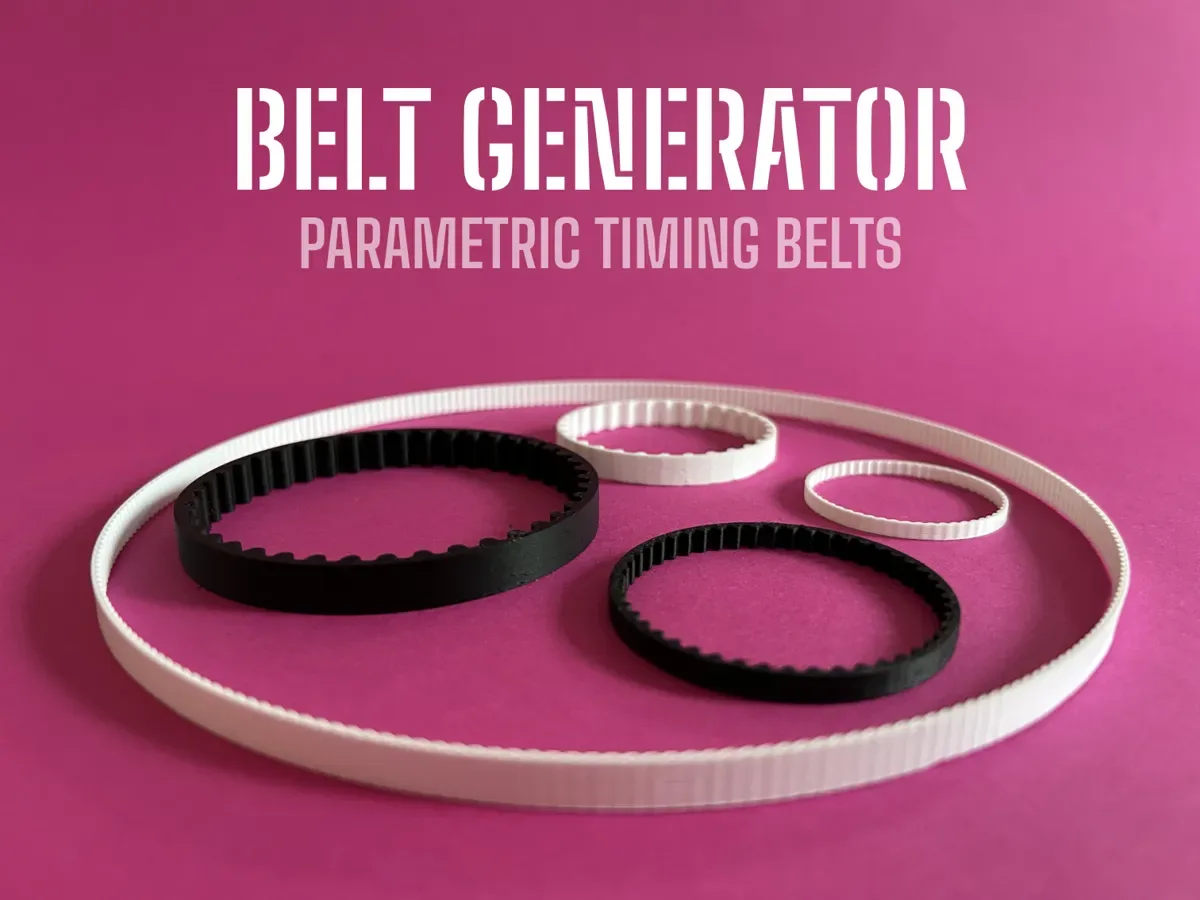

Looking for Timing Belts? Look no further. This OpenSCAD script allows you to generate a wide variety of parametric timing belts with customizable profiles, dimensions, and tooth configurations. Supporting industry-standard belt types such as MXL, XL, L, GT2, HTD, T-series, and more, this script is perfect for designing custom drive systems, 3D-printed mechanisms, robotics, and automation projects. All attached print profiles were generated using the Belt Generator and are configured to match the specifications of the timing belts available in the Bambu Store. Note that some belts (tiny ones) may not be ideal for printing. Click on Customize to open the generator. Using Bambu Studio or Bambu Handy? Click here to customize the model on Makerworld.com. 🚀 Quick Start 1. Select a Belt Type Choose from a variety of timing belt profiles, including MXL, XL, GT2, HTD, and T-series. Adjust key parameters like number of teeth, width, and tooth placement (inside, outside, or both sides). 2. Customize Your Belt Each belt type comes with flexible options: Belt Shape: Choose between loop (closed) or straight (open). Pitch & Backing: Override standard values to customize tooth spacing and backing thickness. Teeth Configuration: Select if teeth should be on the inside, outside, or both sides of the belt. Standard values follow industry specifications, but custom overrides allow for unique designs or make them easier to print. 3. Render and Export Generate the belt and export it for slicing. It is recommended to print with TPU for flexibility and durability. Use the recommended print profile settings or fine-tune for your specific needs. ⭐ Features Multiple Belt Types Supports a wide range of timing belt profiles, including GT2, HTD, T-series, XL, and more. Customizable Geometry Fine-tune belt width, pitch, backing thickness, and tooth configuration for precise control. Precision Modeling Built to match real-world timing belt profiles while maintaining clean geometry. 📜 Maker Scripts Boost Me (for free) Your support helps me maintain and create new Maker Scripts. Thank you! Boost
