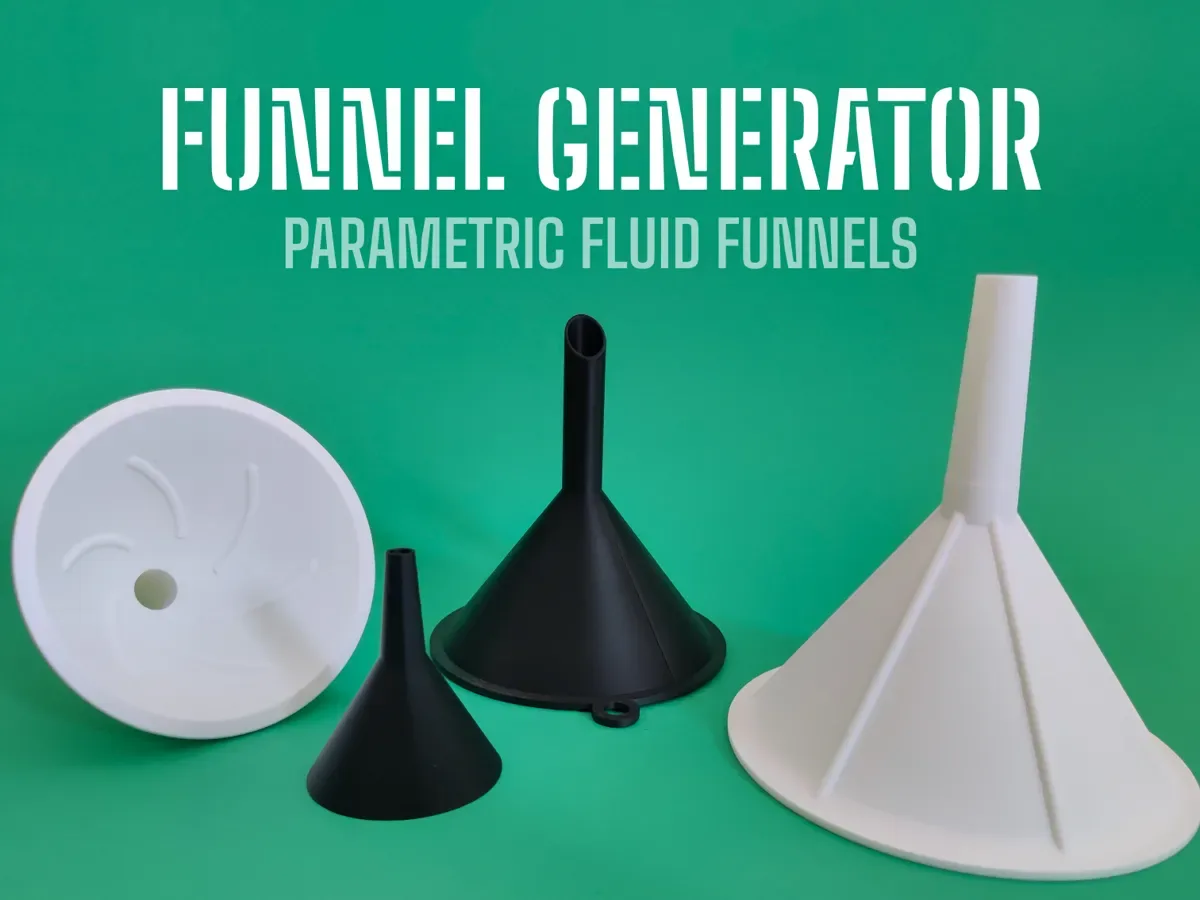

Funnel Generator - Parametric Fluid Funnels

Designer

koolm

Designer relation

Followed

Kategori

Tools

Licens

Standard Digital File License

$ ↺

Se platformens konkrete vilkår.

Designer commercial

MakerWorld Commercial License

Først set

2026-07-15 10:58

Sidst set

2026-07-15 10:58

Tags

funnel funnels fluid generator openscad parametric customize custom fast air gap speed channel fins spiral liquid flow vortex air outlet turbo spout keychain loop hole

Beskrivelse

Looking for Funnels? Look no further. This OpenSCAD script allows you to generate fully parametric funnels with customizable geometry and features. Whether you need a simple kitchen funnel, a fast-pouring workshop funnel, or a lab funnel with air vents and fins, this script lets you design funnels tailored to your needs. Click on Customize to open the generator. 🚀 Quick Start Create your funnel in no-time. Here’s how to get started: Define Your Funnel Set the overall size by adjusting funnel diameter, height, and wall thickness. Fine-tune the spout length, taper, and tip cut angle to control flow. All dimensions are in millimeters. Customize Your Funnel Enable a brim for extra stability, add a hanging loop for storage, or activate exterior channels to improve pouring speed. For extra control, add internal fins to guide flow and reduce turbulence. Export & Print Once customized, generate the funnel and export it for slicing. Choose PETG for chemical resistance or food-safe filaments for kitchen use. Increasing wall loops reduces infill in tight areas, giving stronger, faster prints with smoother walls. ⭐ Features Fully Customizable Easily configure every aspect of the funnel, from spout shape to vent channels. Speed Channels Add exterior channels to prevent vacuum seals and improve fluid flow. Interior Fins Optional fins guide liquids, reduce swirling, and help with filtering. Precision Modeling Generates clean geometry and accurate dimensions for reliable prints. 🛠️ Changelog v1.1 Fixed brim fillet scaling to avoid rounding assertions. Clarified that loop hole size is a diameter. 📜 Maker Scripts
