Strong Rugged Case

Designer

FlorinV

Designer relation

Followed

Kategori

Tools

Licens

Standard Digital File License

$ ↺

Se platformens konkrete vilkår.

Designer commercial

Patreon

Først set

2026-07-15 10:58

Sidst set

2026-07-15 10:58

Tags

box rugged case storage pen holder tools custom customizable multicolor noams AMS keychain pen pencil school print in place printin place parametric customiazble

Beskrivelse

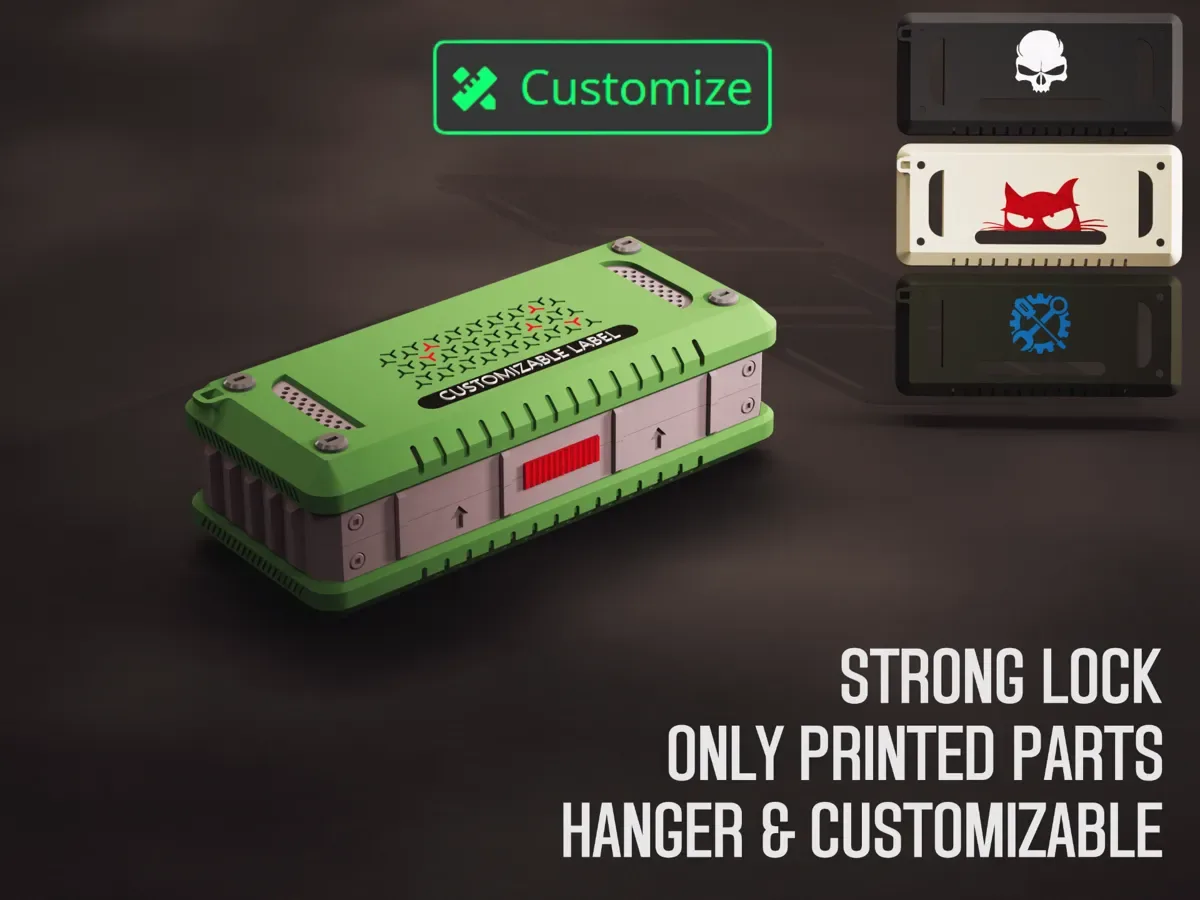

Check out my new 4th of July Glasses I wanted to design a case that is uses only 3d printed parts. No metallic screws, magnets etc. At, the same time, I didn't wanted to make any compromises for this one. ( still strong, reliable locking mechanism and customizable ) Key features: * strong build and simple print with NO Supports. * strong and reliable locking mechanism using only 3d printed parts. This has a very satisfying click. * print-in-place hinges. * replaceable/changeable top/bottom covers for great color customization. * many optional top covers available in second profile. ( blank, skull, angry cat, tools logo ) * no AMS required for multicolor print ( except the small cover details, which require 3 color changes only ) The top/bottom covers and the screws are printed separately, so you can use different colors than the base case. The label is also printed separately and you can do only one filament change for the top text on the label. * hanger for keychain/strap/label or whatever you want to attach to this case (for fun or utility). Tested with a 3kg weight, even shaking the weight and holding the case horizontally (smallest resistance). Please check the small gif attached. * Inside space: 175.8 mm x 68.4mm x 46 mm. * Inside space of A1 Mini Version: 165.8mm x 68.4mm x 23 mm. Assembly notes: * This is the exploded view of the complete model (side view) Another exploded view of the parts, for better understanding: Customizing Label text: In Bambu Studio, after you open my main profile, go to plate 5 (LABEL), select “text_shape”, right click on it and press “Edit Text”. A popup will be displayed and you can change the text font, size thickness etc. You can set the filament you want for this “text_shape” and the printer will only need one filament change. You can do it with AMS or Without AMS, by pausing the print when the text starts and do a manual filament change (one time). STEPS: * insert the “locking button” into the bottom case and press it firmly. Try to press vertically and it will make a satisfying click when correctly inserted. * add the label to the top cover and slide in the cover over to top part of the case. * slide in the bottom cover over the bottom part of the case. * Add the screws by carefully screw them clockwise. Be sure you insert them flat (not at angle). Don't force them (overtight) at the end, the covers will stay in place even without these screws. CUSTOMIZE THE BLANK COVERS WITH VECTORS: -Open the covers profile, and go the the blank cover. -Right click on “top cover - blank” and select “add modifier” → “SVG” -Load up the SVG file you want -Change the depth of the vector to 1mm and be sure to look under the plate, to see the front of the cover. You want to move the vector and position it on the face of the cover, not the interior (if you move it from above the plate) -Scale down/up the vector, arrange it as you wish, but be sure to have the depth not too big (i suggest 1mm, as I said above) -Then, on the object list, right click on the newly added SVG (vector) to select another filament (to have a different color) SIZE CUSTOMIZABLE VERSION: Initially i didn't planned to make this case size customizable, so I had to redo from scratch all the case in order to provide this kind of customization. Therefore, the size customizable case is a bit different in design, with some improved small things, basically it's a different model that looks similar. You can customize: length, width, height and label height. (and of course you can add whatever text you want on the label in Bambu studio) THE DIMENSIONS REFER TO THE INTERIOR OF THE GENERATED BOX. Because this is a rather complex model, with many dependencies, PLEASE CHECK CAREFULLY THE GENERATED PARTS before printing, to be sure there is nothing strange in any parts generated. If you see something wrong, try to reopen the customizing window and set again your final values. After you download the customized model, you will have to arrange the parts on
