Gridfinity stackable case - magnetic lock

Designer

FlorinV

Designer relation

Followed

Kategori

Tools

Licens

Standard Digital File License

$ ↺

Se platformens konkrete vilkår.

Designer commercial

Patreon

Først set

2026-07-15 10:58

Sidst set

2026-07-15 10:58

Tags

case lock container box storage magnetic organizer accesories tools gridfinity separator A1 mini printer stackable stack parts

Beskrivelse

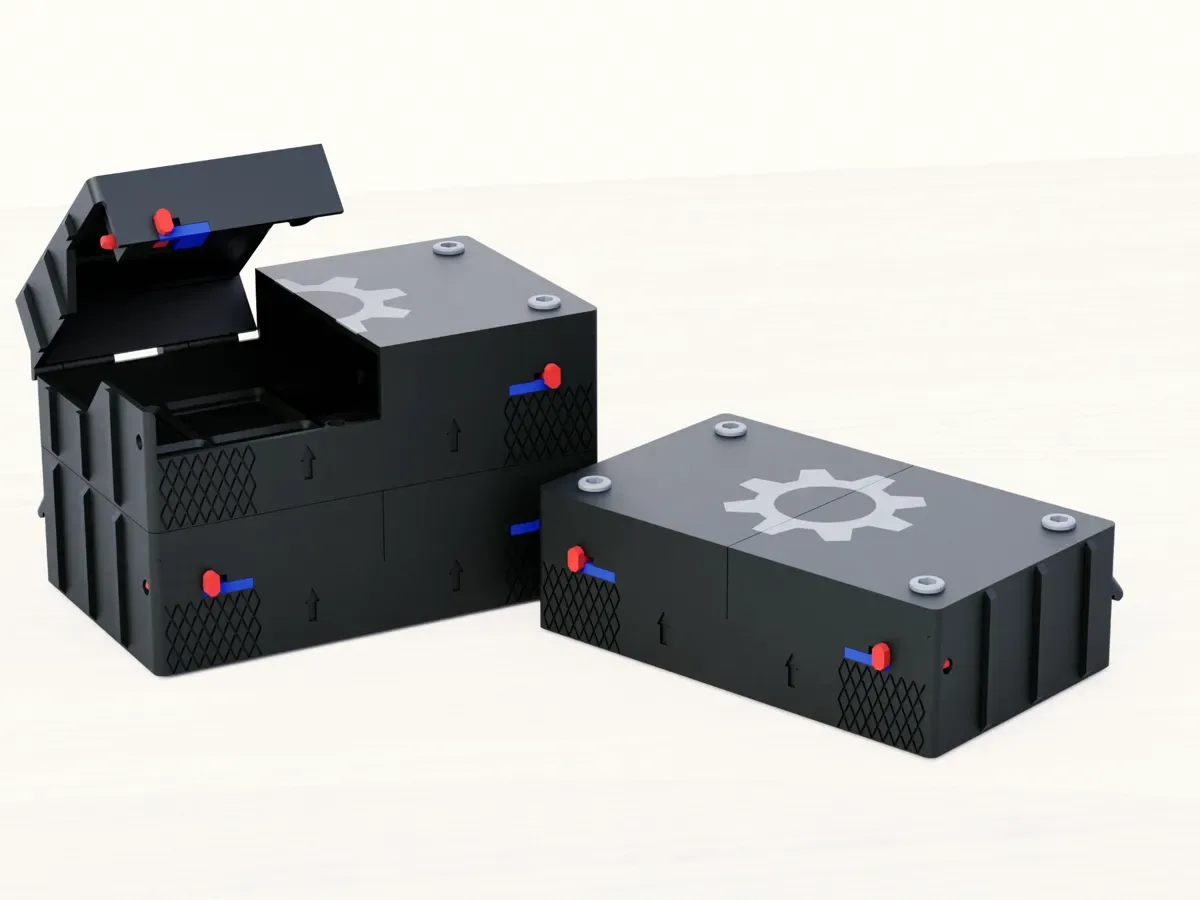

Check out my new 4th of July Glasses CASE Details: *Space for 4x2 gridfinity boxes, 6 units height. *There are 2 lids with separate locking mechanism for each one. *The lids have the matching gridfinity lip to be sure parts are not getting out if you all the height. *Strong build with sturdy print in place hinge. No hardware needed for the hinge. *The case has a two part lid and each one can be opened separately. *Magnetic lock mechanism on each lid. No springs needed, only magnets. Please check the gif animation and or images for details. *All you need to build this are 8 magnets of 6x2mm (4 are mandatory and 4 optional) and some glue. *The case has included brim for the corners (mouse ears - to better prevent corner lifting) *There are 2 case designs (one with gear logo and a blank one) *The screws, are optional and if you want to use them, they go on top of the case and is used to be able to stack the case one over the other and also as an ornament. You can use a drop of glue to fix them in place. You can use any gridfinity generator to create whatever container you want for this storage box, or use one of the many already existing ones. For A1/A1mini hotend holder, I've used this model: https://makerworld.com/en/models/510943#profileId-427026 This hotend holder is only 3 units in height, so you can store one in top of another in this case. (the case is 6 units height) For Hex bits holder, I've used this model: https://makerworld.com/en/models/523666#profileId-440287 This hex bit holder when had bits in it, occupies 4 units, so you can have other 2 units containers under them. Assembly: For assembly, you need to pay attention to the magnets orientation, please don't rush and follow the images for assembly. For the lock mechanism, the magnets should reject each other. Everything should fit easily. Locking mechanism should work easily (there are tolerances build in) but if it's not easily locking automatically, please move manually the pin in both directions for some time, to smooth it out. Boost Me (for free) Any review / comment or boost is greatly appreciated! Thank you ! 🌍✌️ Boost You can check all my models → here. Or check my collection of my best models: https://makerworld.com/en/collections/1921582-my-best-models
