Parametric Side Release Buckle 10 60Mm

Designer

feeltn

Designer relation

Ingen

Kategori

Tools

Licens

Standard Digital File License

$ ↺

Se platformens konkrete vilkår.

Designer commercial

None

Først set

2026-07-09 12:56

Sidst set

2026-09-15 20:28

Tags

buckle side release side-release buckles quick release snap fit backpack strap webbing paracord clip parametric customizable OpenSCAD replacement part outdoor gear Quick Release Buckle Belt Buckle Replacement parts External equipment

Beskrivelse

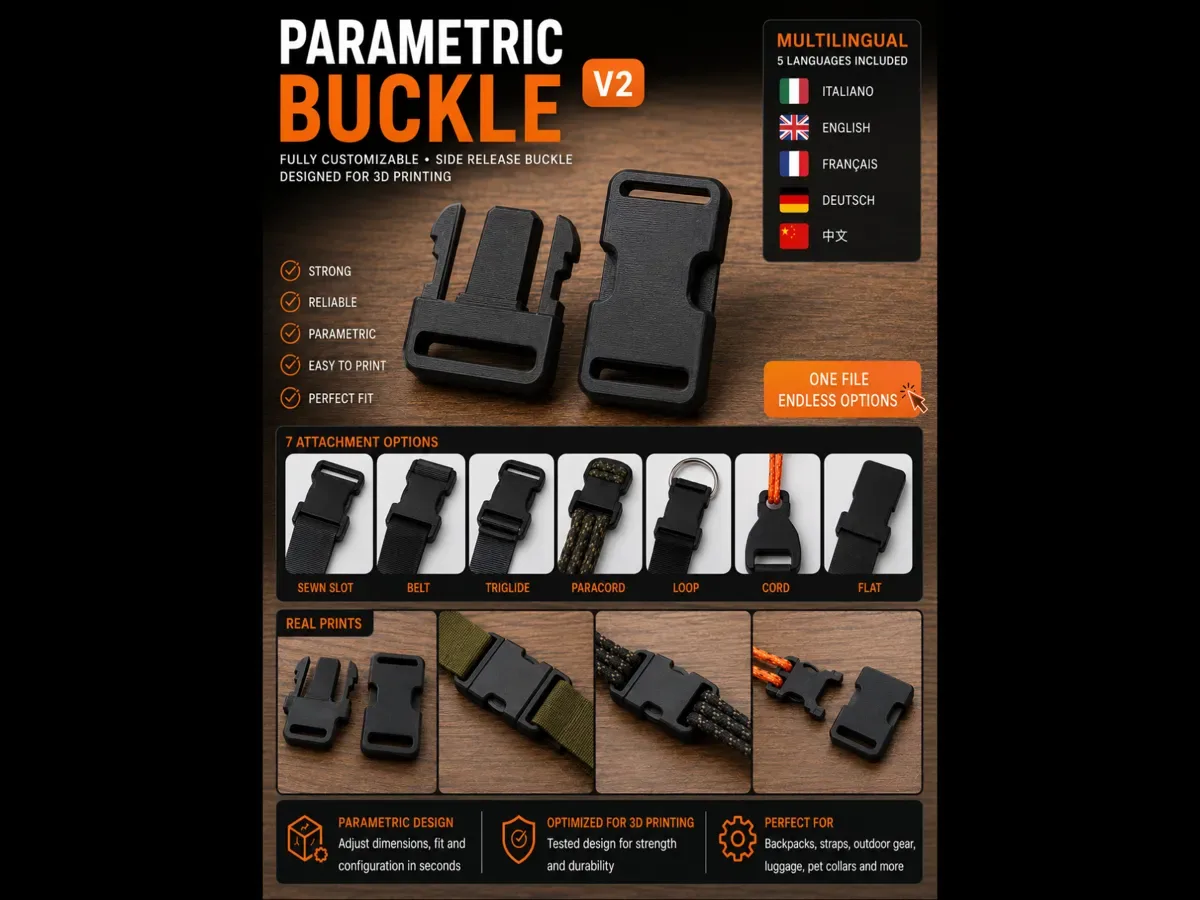

English Hi everyone, I've published V3 with new features and improvements — link here: Thanks for the feedback https://makerworld.com/it/models/3097190-parametric-side-release-buckle-v3#profileId-3490697 Chinese (Simplified) Hi everyone, I've published V3 with new features and improvements — link here: Thanks for the feedback https://makerworld.com/it/models/3097190-parametric-side-release-buckle-v3#profileId-3490697 Boost Me (for free) Boost 🇬🇧 ENGLISH Title Parametric Side-Release Buckle V2 — Custom strap buckle 10–60 mm, 7 attachment styles, OpenSCAD Customizer Description A fully parametric side-release buckle designed for 3D printing Customize it directly in the MakerWorld / OpenSCAD customizer to fit straps, webbing, cords, paracord, loops or flat mounting tabs — no CAD software required This model generates a real two-part buckle: male part with flexible snap arms and rigid center guide; female part with side-release windows Main features 7 attachment styles, independently selectable for each side Choose a different tail style for the male and female parts: sewn slot belt pass-through adjustable tri-glide paracord holes, 2 or 4 holes closed loop / D-ring style single cord hole solid flat tab The tail shape automatically adapts to the selected attachment type: narrow rounded shape for cord use, full-width body for webbing, shaped tails for loops, paracord and flat mounting Wide size range Designed for webbing widths from 10 mm to 60 mm, with adjustable overall thickness from 5 mm to 14 mm Rigid center guide tongue — V2 The male part includes a rigid central guide tongue that helps insertion, reduces lateral wobble and protects the flexible arms from over-bending On very narrow buckles, the guide is automatically disabled if there is not enough physical space Improved snap-fit durability V2 includes several geometry improvements: rounded arm roots to reduce stress concentration; chamfered and rounded entry mouth for smoother insertion; side windows sized so the arms can relax when locked; adjustable latch geometry and arm stiffness One-parameter fit tuning The most important parameter is clearance Recommended starting point: default: 0.35 tighter fit: 0.25 – 0.30 looser fit: 0.40 – 0.45 Print, test, then fine-tune only this value first Safe parametric sliders Critical parameters are internally limited to keep the geometry printable If a limit is reached, OpenSCAD shows a NOTE in the console Multilingual customizer labels The customizer labels are shown in 5 languages: Italian / English / French / German / Chinese IT / EN / FR / DE / 中文 Set part = "guide" to display a translated parameter legend directly in the 3D preview Modern printable design V2 has a smoother commercial look with: rounded top edges; slightly barreled female body sides; shaped attachment tails; flat bottom for reliable bed adhesion Printing instructions Print the parts flat on the bed, exactly as generated in the both layout This is important because the snap arms flex in the XY plane, so the stress stays within the printed layers Do not print the buckle upright, otherwise the arms may break along the layer lines Recommended settings: no supports required; PETG or PLA+ recommended; ABS / ASA for outdoor or hotter environments; 0.2 mm layer height; 3 perimeters; 25–40% infill For this model, perimeters matter more than infill Included files Full parametric OpenSCAD source file; ready-to-print STL pair for 25 mm webbing: male part with sewn slot; female part with tri-glide attachment V2 changelog Compared to the previous version, V2 adds: rigid center guide tongue; improved side-release fit; rounded arm roots; smoother chamfered mouth; shaped tails for different attachment styles; rounded commercial appearance; improved side window geometry so the arms can relax when locked; safer automatic parameter limits Chinese (Simplified) Title Parametric Side-Release Buckle V2 — 10–60 mm webbing, 7 attachment styles, OpenSCAD Customizer Description A fully parame
