Beam Generator - Parametric Beams, Bars & Extrudes

Designer

koolm

Designer relation

Followed

Kategori

Hobby & DIY

Licens

Creative Commons Attribution NonCommercial ShareAlike Creative Commons Attribution-Noncommercial-Share Alike

$ ↺ SA

Attribution påkrævet; kommerciel brug er ikke tilladt; ShareAlike gælder for afledte værker.

Designer commercial

MakerWorld Commercial License

Først set

2026-07-15 10:58

Sidst set

2026-07-15 10:58

Tags

beam bar pipe extrusion structure parametric customize generator openscad cross section profile 挤出 engineering construction steel woodworking timber alluminium channel industrial i beam l beam z beam u beam t slot 2020 3030 4040 rectangle polygon ellipse hollow tube

Beskrivelse

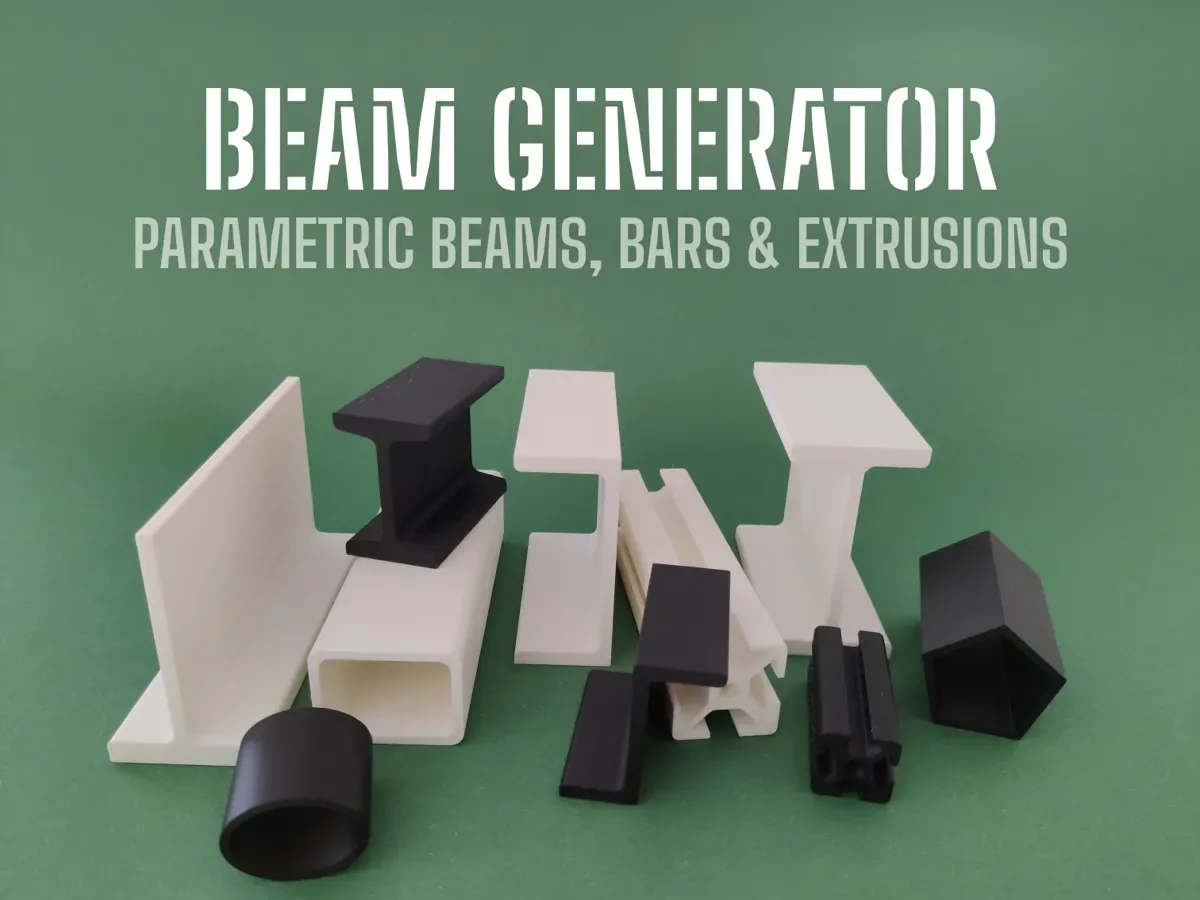

Looking for Beams? Look no further. This OpenSCAD script lets you generate a wide range of parametric beams, bars, and extrusions — all fully customizable using real engineering parameters. From classic I-beams and channels to aluminum T-slot profiles, this tool makes it easy to configure and adapt cross-sections for your projects. Perfect for structural modeling, mechanical design, woodworking, or architectural applications. Click on Customize to open the generator. 🚀 Quick Start 1. Select Your Profile Pick a cross-section (I, T, L, U, Z, rectangular, polygonal, elliptical, or aluminum T-slot) and set your beam length. 2. Customize Dimensions Each profile has its own parameter group. Adjust height, width, thickness, radii, slopes, and more to suit your needs. All dimensions are in millimeters. 3. Render & Export Finalize and prepare your beam: Fine-tune resolution and color in Render settings (optional). Export to your slicer and auto-orient the model. Print, simulate, or integrate into your assemblies! 🎉 ⭐ Features Fully Parametric Every dimension and detail can be customized for exact requirements. Engineering Accuracy Uses natural section parameters (h, b, tw, tf, r1, r2, slopes) familiar from technical drawings. Wide Range of Sections I, T, L, U, Z, rectangular, polygonal, elliptical, and aluminum T-slot extrusions. Standards-Friendly Designed to replicate profiles from DIN, EN/Euronorm, ASTM/AISC, JIS, GB, and more. 🛠️ Changelog v1.1 (NEW) Added support for measuring polygon diameters across corners or flats. 📜 Maker Scripts Boost Me (for free) Your support helps me create more open source Maker Scripts. Thank you! Boost
