Ramp Generator - Parametric Ramps, Shims & Wedges

Designer

koolm

Designer relation

Followed

Kategori

Tools

Licens

Standard Digital File License

$ ↺

Se platformens konkrete vilkår.

Designer commercial

MakerWorld Commercial License

Først set

2026-07-15 10:58

Sidst set

2026-07-15 10:58

Tags

ramp wedge shim stand riser parametric customize generator openscad ribbed stepped flat incline hollow pattern lattice mesh angled raise leveling slope

Beskrivelse

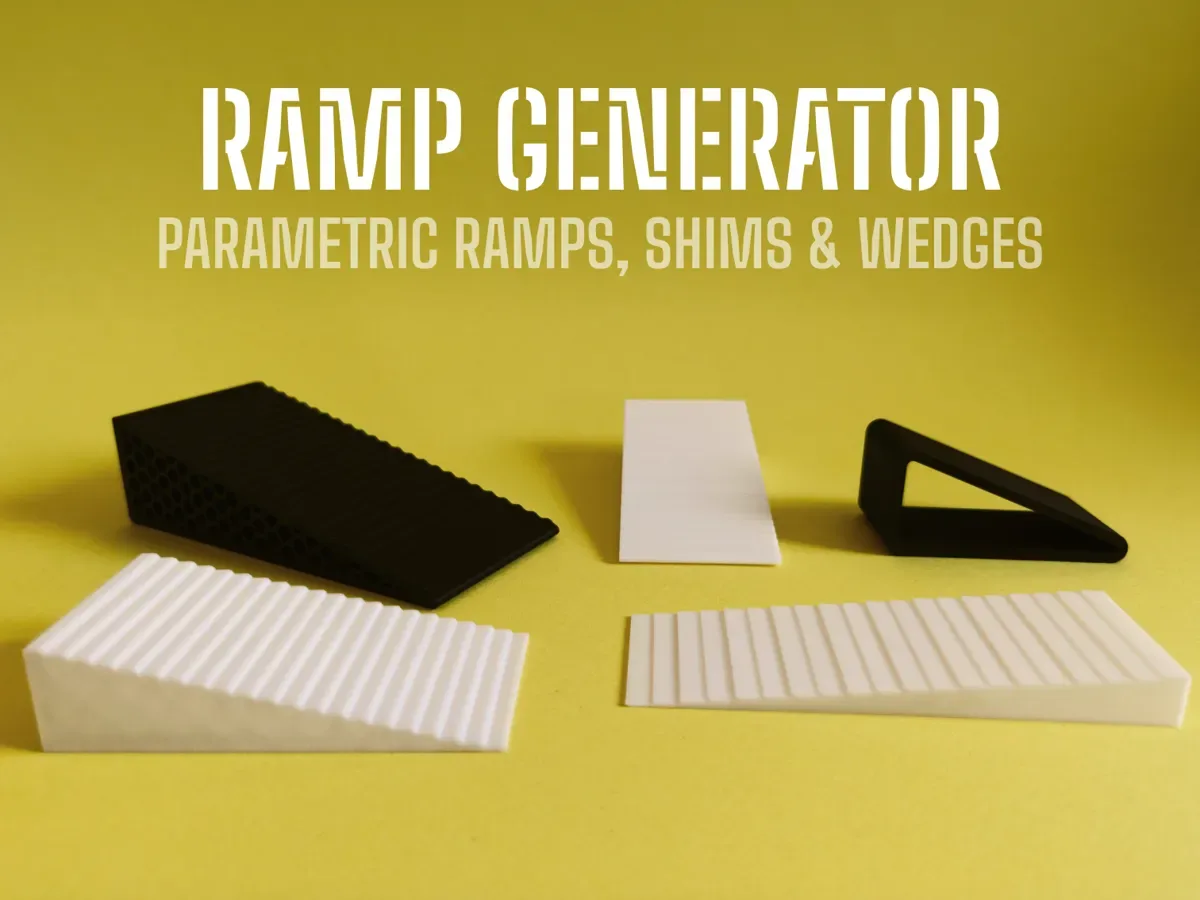

Looking for Ramps? Look no further. This OpenSCAD script lets you generate fully parametric ramps and wedges with configurable dimensions, slope, rounded corners, and surface finish. Whether you need a doorstop, riser, shim, leveling block, fixture, or custom ramp, this generator gives you complete control. Choose between flat, stepped, or ribbed top surfaces, and optionally hollow the model with lightweight lattice patterns to reduce material usage. Click on Customize to open the generator 🚀 Quick Start 1. Set Your Ramp Dimensions Choose the overall width, length, and height of the ramp. You can also enable angle-based sizing to automatically calculate the final height from the desired slope angle. 2. Customize the Surface Choose the surface that best fits your application: Flat: smooth incline. Stepped: stair-step incline. Ribbed: textured incline. Rounded corners can also be added for a cleaner appearance and improved handling. 3. Add a Hollow Interior Remove material by enabling a hollow interior. Optionally add internal cutout patterns and customize the wall thickness, cell size, spacing, staggering, and rotation to achieve the right balance between strength and weight. 4. Render and Export Generate the ramp at the desired resolution and export it for slicing and printing. Use the print orientation option to rotate the model onto its side for a cleaner and easier print. ⭐ Features Fully Parametric Design Adjust width, length, height, angle, and corner rounding to create exactly the ramp you need. Multiple Surface Styles Generate flat, stepped, or ribbed ramps from the same model. Optional Lightweight Hollowing Add patterned internal cutouts to reduce filament usage while maintaining strength. 3D Printing Ready Includes quality presets, color preview, and optional print-friendly orientation. 📜 Maker Scripts Boost Me (for free) Your support helps me create and maintain Maker Scripts. Thank you! Boost
