VentForge - Parametric Vents & Covers

Designer

Rasvodin

Designer relation

Ingen

Kategori

Household

Licens

Standard Digital File License

$ ↺

Se platformens konkrete vilkår.

Designer commercial

MakerWorld Commercial License

Først set

2026-07-10 08:57

Sidst set

2026-07-19 08:00

Tags

grille vent air vent drain exhaust cap cover roster custom customize generator openscad parametric slats mesh pattern pipe fit wall insert mount screw water liquid air airflow ventilation protective decorative design airgrid airventilation diy fanduct fan ventilation cover louvered vent backdraft damper damper access panel rain shield weatherproof utility room workshop vent insect mesh mosquito net duct cover round duct rectangular duct

Beskrivelse

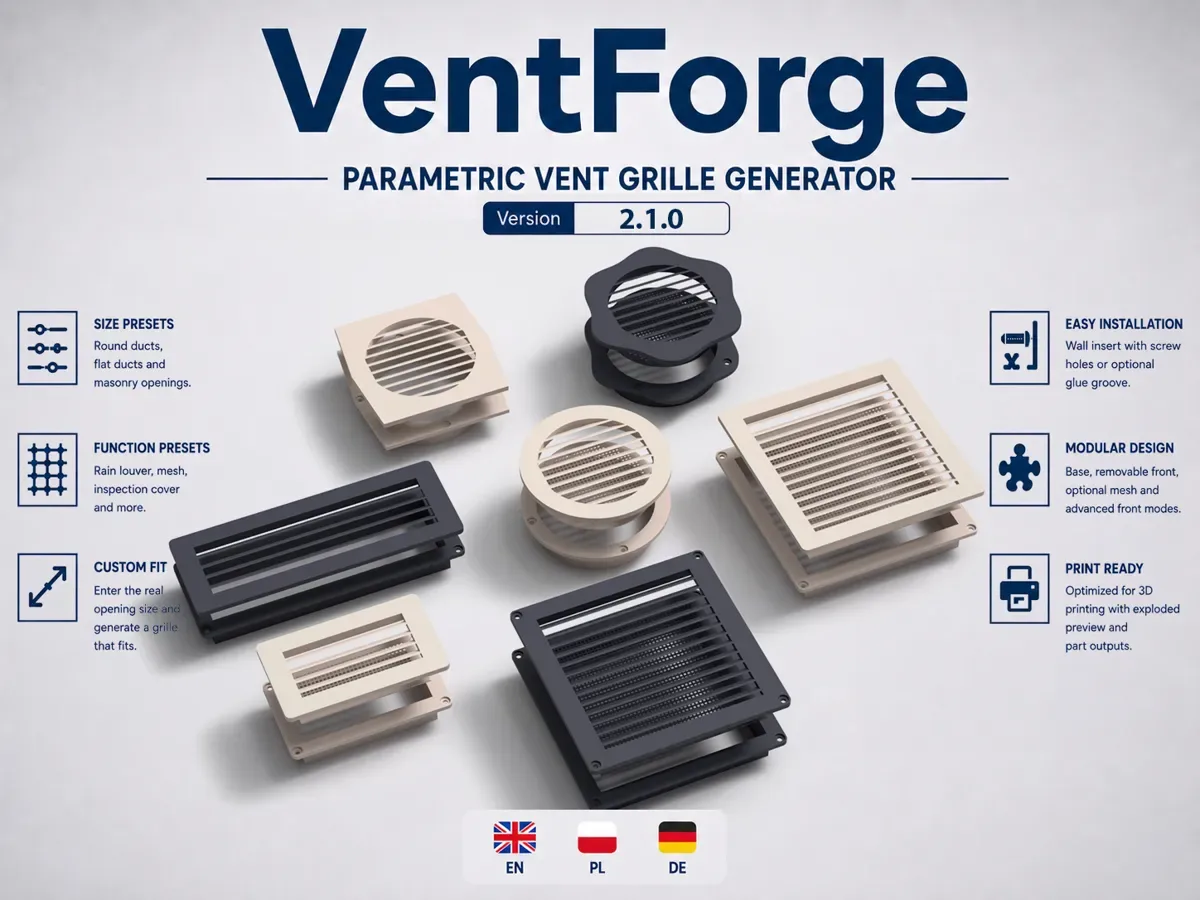

Membership Join my Membership to support future models and unlock commercial selling rights for physical prints from my models and generators. Join VentForge - Parametric Vents & Covers Version: 2.1.0 VentForge is a customizer for printable vent grilles, vent covers, wall inserts, inspection covers, mesh inserts, and experimental backdraft shutter fronts. It is useful when a ready-made store grille does not fit your wall opening, duct, workshop vent, cabinet vent, utility room, garage, shed, or custom project. Boost Me (for free) If VentForge helped you make a custom vent grille that actually fits your wall opening, a Boost would really help this generator reach more makers and support future improvements. Boost Backdraft shutter front ✨ What It Makes 🌧️ Rain louver vent grilles 🕸️ Printed insect mesh inserts 🔲 Solid slicer-infill mesh plates 🧰 Inspection / access covers ↩️ Experimental backdraft shutter fronts 🧱 Wall inserts for rectangular or round openings 🔩 Screw-mounted or glue-mounted variants ⚙️ Main Customization Rectangular or round wall opening Standard size presets for common ducts and masonry shafts Functional presets for grille, mesh, cover, shutter, glue mount, and airflow tests Frame shapes: rectangle, oval, circle, hexagon, octagon, and flower Sharp, rounded, or chamfered rectangle corners Optional custom outside front size or custom left/right/top/bottom front margins Asymmetric front margins for custom cover shapes. Best with rectangle, oval, hexagon, and octagon; always check the preview before printing. Screw holes from 2 to 8, with adjustable position Louver angle, spacing, count, thickness, and depth Printed mesh patterns: square, diamond, slits, crosshatch, or solid Separate preview / 3MF colors for base, front, mesh, and clamp Normal print layout, exploded assembly preview, or single-part output 🚀 Quick Start Measure the real wall opening. Choose a Size Preset or enter your own dimensions. Choose a Function Preset: Rain louver Printed mesh Slicer-infill mesh Inspection cover Backdraft shutter Airflow-compensated louver Glue mount Generate, slice, and test fit before printing a large final part. Presets are starting points. You can keep the preset and disable selected override groups if you want to fine-tune only one part of the design. 🧪 Experimental Features Some features are intentionally marked experimental: Backdraft shutter front - separate moving blades pressed into the front frame. Experimental center-side shutter hinge - optional alternative hinge position for the moving shutter blades. Airflow compensation - enlarges the front grille area when louvers or mesh reduce open area. Real mosquito mesh holder - for testing a clamped piece of real mesh. Asymmetric margins on non-rectangular frames - useful for custom covers, but oval, hexagon, and octagon can render differently than a rectangular frame. Circle and flower stay radial, so margins mainly change overall size. These modes are useful, but fit and movement depend on printer calibration, material, layer height, and selected clearances. Test small before printing large. 🖨️ Print Notes The default output places parts flat on the bed. Assembly preview keeps the mounted orientation so you can inspect how the parts stack together. For the printed mesh, the Solid pattern creates a thin plate that can be turned into a slicer-generated mesh by using sparse infill and disabling top and bottom shells. If the fit is too tight, increase the clearance values before printing a full-size vent. 🌍 Language Versions The generator includes EN, PL, and DE SCAD versions. 🔗 More Customizable Generators KeyForge - Multi-Keychain Generator with SVG Support: https://makerworld.com/en/models/2828084-keyforge-multi-keychain-generator-svg-support WhistleForge - Whistle Keychain Generator: https://makerworld.com/en/models/2854048-whistleforge-whistle-keychain-generator GardenForge - Plant Stake Label Generator: https://makerworld.com/en/models/2875562-gardenfor
