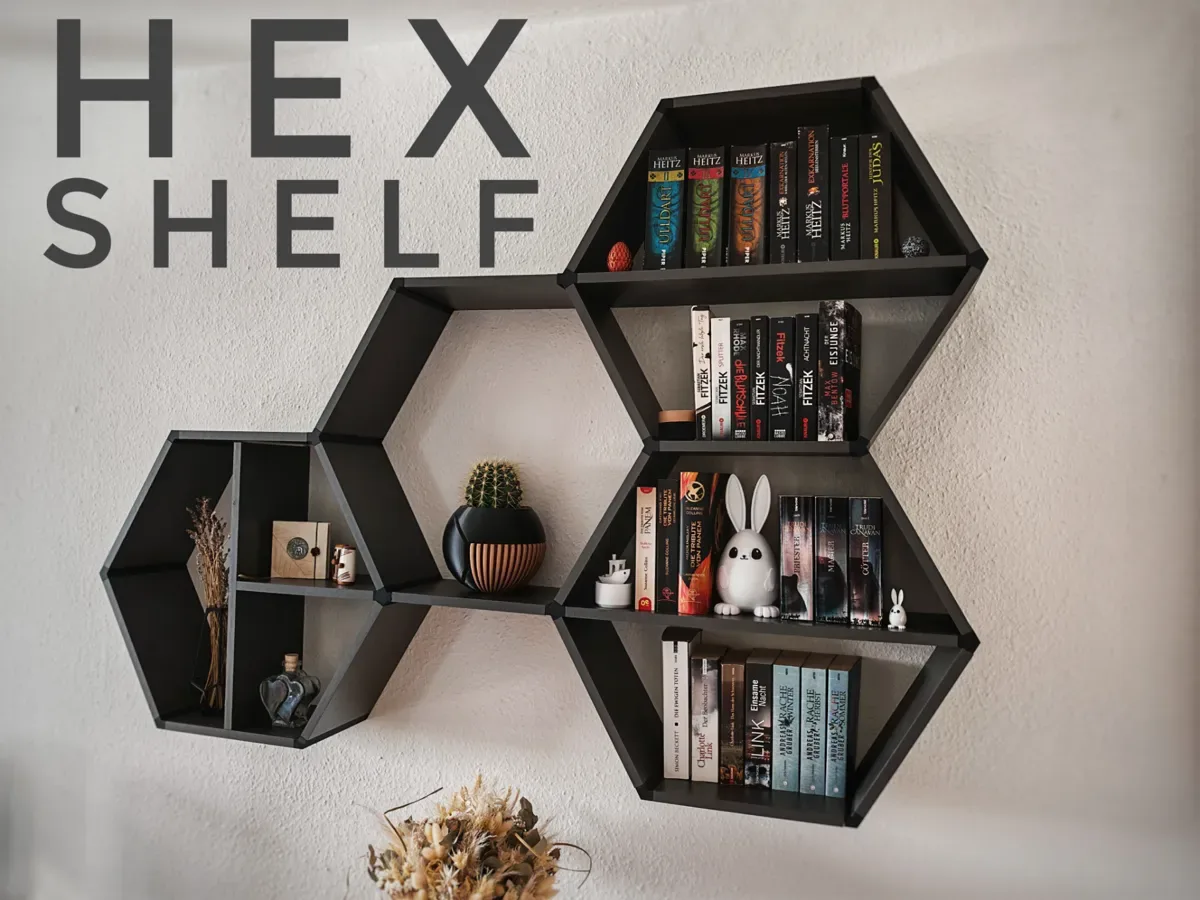

Hex Shelf – Modular Wall System

Designer

DjangoCashflow

Designer relation

Followed

Kategori

Household

Licens

Standard Digital File License

$ ↺

Se platformens konkrete vilkår.

Designer commercial

MakerWorld Commercial License

Først set

2026-07-14 16:37

Sidst set

2026-07-15 10:58

Tags

shelf hex hexagon hexagon aesthetic Honeycomb Storage Wall honeycomb modular wall storage organizer connector mount wood custom system grid corner design clean minimal snapfit furniture DIY

Beskrivelse

Hex Shelf – Modular Wall System with Seamless Printed Connectors This fully customizable hexagon wall shelf system combines the warmth of wood with clean 3D printed corner connectors for a minimalist, seamless look. Only the connectors and rails are printed – the shelves are made from standard 200 mm × 16 mm wooden boards, which slide into place using a clever snap-fit system. The layout is entirely up to you: by mixing 2-way, 3-way, 3-way horizontal, and 4-way connectors, you can build any hexagonal design you like. Each joint consists of two printed parts — a mount base (which can be wall-mounted) and a snap cap (which clicks into place once all boards are inserted). A printable drill guide is included to ensure perfect alignment of all screw holes. Boost Me (for free) Boost 🪵 Materials & Parts (for the shown setup) Wood boards: 22 × 275 × 200 × 16 mm 2 × 566 × 200 × 16 mm 1 × 508 × 200 × 16 mm Printed parts: 44 × rail 9 × 2-way mount base 9 × 2-way snap cap 3 × 3-way mount base 3 × 3-way snap cap 2 × 3-way horizontal mount base 2 × 3-way horizontal snap cap 3 × 4-way mount base 3 × 4-way snap cap 1 × drilling guide Screws: 88 × 4×20 mm countersunk wood screws or BHCS ~10 × 4.5×60 mm countersunk wood screws + wall plugs (for mounting the bases) Optional: A printable shelf board version is included if you're overflowing with filament — but wood is strongly recommended for rigidity, aesthetics, and practicality. 🛠 Assembly Instructions Print the drilling guide and use it to mark and drill the rail holes at the ends of each board. Attach the rails using the 4×20 mm wood screws. Lightly insert a mount base (e.g. a 2-way base) onto the rails of your starting board. Hold the board up to the wall, level it carefully (a smartphone app works great), and press a 4.5×60 mm screw through the mount base to mark the wall position. Take it down, drill the hole, insert a wall plug, and screw the mount base to the wall. Slide the board back into the mounted base using the rails — it should lock firmly into place with the built-in push pin system. Continue corner by corner, building outward. Use a level to keep consistent 30° angles. Once all board slots are filled at a connector, press the snap cap on until it clicks into place. 🧱 Mounting Notes You don't need to mount every connector to the wall. I only secured the top row and a few sagging corners in the middle. The rest holds together just with the push-fit rail system.
