Parametric Motor Mount Adapter – Round Flange & Rectangular Plate Generator

Designer

Rapid3d4service

Designer relation

Ingen

Kategori

Tools

Licens

Creative Commons Attribution ShareAlike Creative Commons - Attribution - Share Alike

$ ↺ SA

Attribution påkrævet; afledte værker skal deles under kompatibel ShareAlike-licens.

Designer commercial

None

Først set

2026-09-16 00:20

Sidst set

2026-09-17 16:20

Tags

adapter plate bolt circle bolt pattern customizable custom flange flange adapter motor mount mounting plate parametric

Beskrivelse

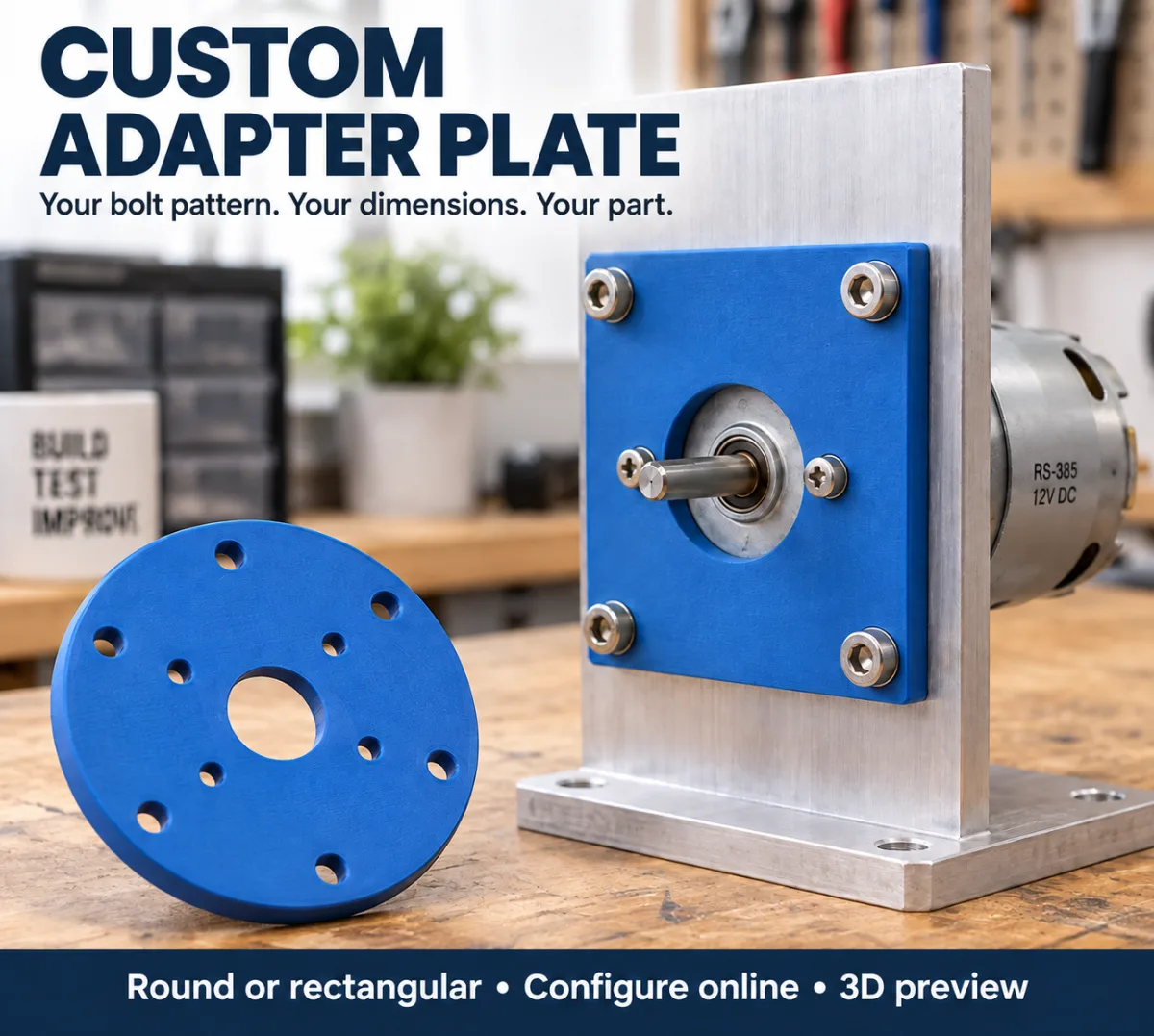

Connect mismatched mounting patterns with a custom adapter plate. This parametric model combines a circular bolt pattern and a rectangular four-hole pattern in one flat plate. Use it to explore motor mounting arrangements, custom panel interfaces and prototype flange connections. EXAMPLE APPLICATION A small DC motor has mounting holes close to its shaft, while the support panel uses a wider four-hole pattern. The adapter bridges those patterns and provides a central clearance opening. Choose a rectangular outline for a panel installation or a circular outline for a flange-style interface. YOUR BOLT PATTERN. YOUR DIMENSIONS. YOUR PART. Change the dimensions conveniently online in your browser and inspect the result in an interactive 3D preview. No CAD software installation is needed. Open the generator: https://www.buildyour3d.com/en/product/parametric_universal_industrial_adapter_plate_v2 Adjust the outline, thickness, center opening, bolt-circle dimensions and rectangular hole spacing. The external website offers paid custom STL downloads and printed-part ordering. BEFORE PRINTING Check both mating components, including hole-center spacing, screw length and shaft clearance. A center opening is not automatically a precision locating feature. For functional motor mounts, evaluate torque, vibration, temperature and print orientation. Test the fit before putting the assembly into service.
