Parametric Corner Protector – Custom-Fit Box Corner Guard

Designer

Rapid3d4service

Designer relation

Ingen

Kategori

Tools

Licens

Creative Commons Attribution ShareAlike Creative Commons - Attribution - Share Alike

$ ↺ SA

Attribution påkrævet; afledte værker skal deles under kompatibel ShareAlike-licens.

Designer commercial

None

Først set

2026-09-14 19:50

Sidst set

2026-09-17 08:20

Tags

Corner protector parametric customizable Screw mount wooden box

Beskrivelse

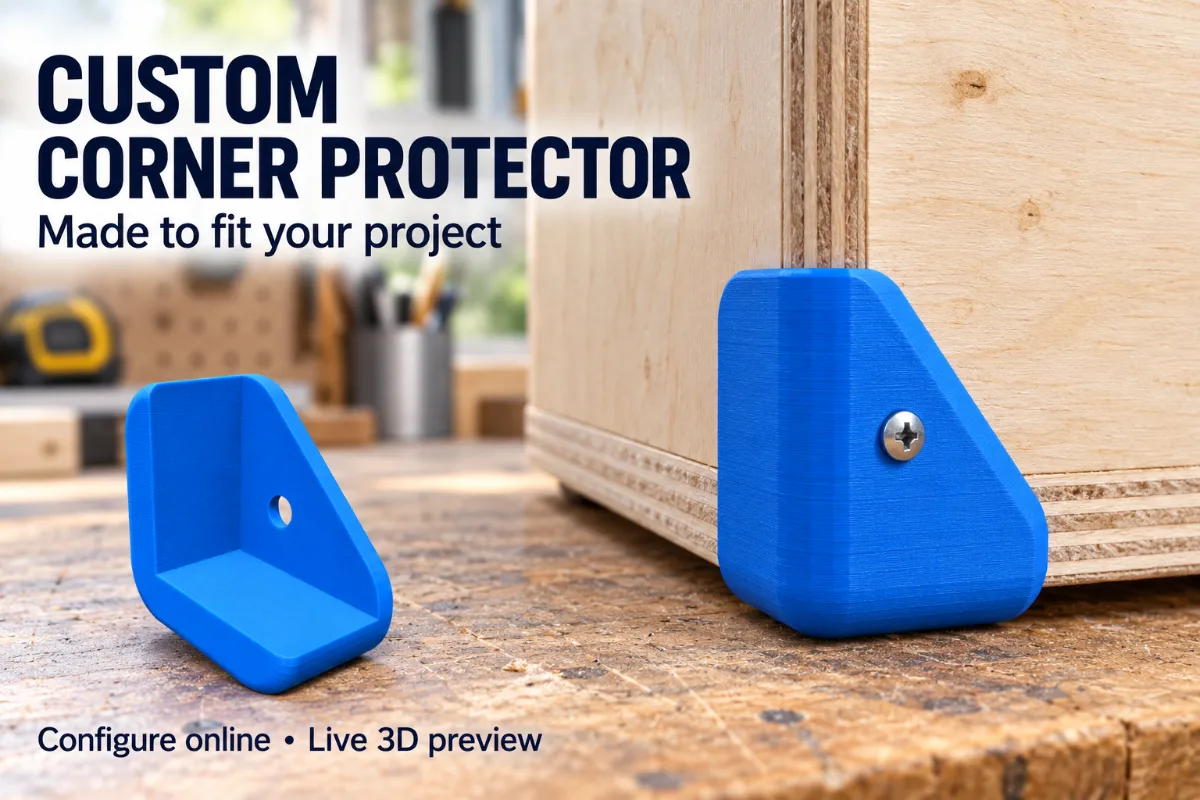

Building a wooden box or replacing a missing corner guard? This customizable corner protector lets you adapt the dimensions to your project instead of designing a new part from scratch. The part covers three adjoining surfaces at an outside corner. A useful application is a plywood storage box: the protector sits against both side panels and extends underneath the bottom corner. The mounting hole provides a screw attachment point. Adjust the parameters directly in your browser and inspect the result in an interactive 3D preview. No CAD installation is needed. Available adjustments: • Width • Inside height • Outside height • Length X • Length Y Open the online configurator: https://www.buildyour3d.com/en/product/eckenschutz The website offers a custom STL download or a printed-part order after configuration. Custom STL downloads are paid. Before printing, check dimensions, clearances and print orientation. When mounting, select a screw that suits the panel thickness and avoid overtightening. Tags:
