Custom Cabinet Hinge Repair Plate – 26/35/40 mm Cup STL

Designer

Rapid3d4service

Designer relation

Ingen

Kategori

Tools

Licens

Creative Commons Attribution ShareAlike Creative Commons - Attribution - Share Alike

$ ↺ SA

Attribution påkrævet; afledte værker skal deles under kompatibel ShareAlike-licens.

Designer commercial

None

Først set

2026-09-14 19:50

Sidst set

2026-09-14 20:52

Tags

Ingen tags fundet

Beskrivelse

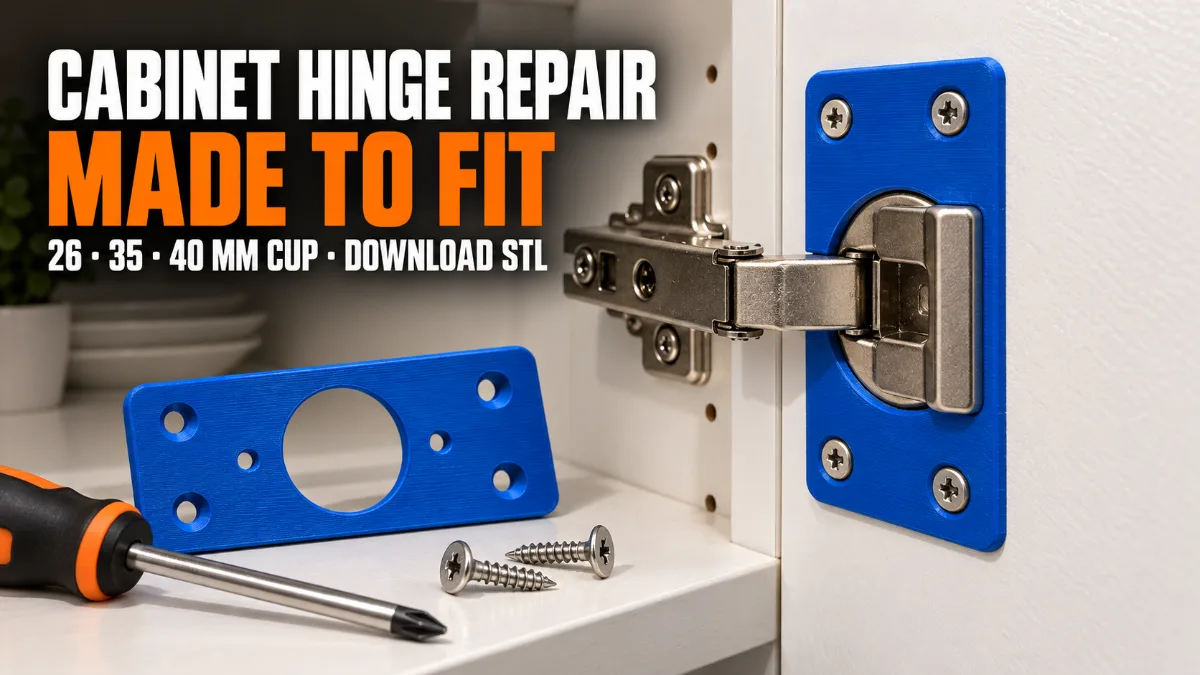

Repair a loose or torn-out cabinet hinge without replacing the entire cupboard door. This parametric cabinet hinge repair plate bridges damaged particleboard, MDF or wood around stripped hinge screw holes. The plate moves the fixing points into undamaged material and provides a stable mounting surface for a concealed furniture hinge. Configure the repair plate online, inspect the generated 3D model and download an STL made to your measurements—no CAD software required. CONFIGURABLE FEATURES • Hinge cup standard: 26 mm, 35 mm or 40 mm • Position of the hinge cup opening • Repair plate width and height • Mounting-hole diameter • Hinge-hole spacing and position • Hinge mounting-hole diameter • Optional countersinks • Countersink diameter and depth • Model resolution USEFUL FOR • Kitchen cabinet hinge repair • Cupboard door hinge repair • Wardrobe and furniture hinge repair • Loose or torn-out concealed hinges • Stripped screw holes in particleboard or MDF • Damaged 26, 35 or 40 mm hinge-cup areas • Custom replacement plates when standard products do not fit • Furniture restoration and functional 3D printing CONFIGURE AND DOWNLOAD Enter your measurements, check the live 3D preview and download your custom STL: https://www.buildyour3d.com/en/product/Reparaturblech MEASURING TIPS Remove the hinge and measure the cup diameter, plate dimensions, hole spacing and required screw positions. The new outer mounting holes must reach solid, undamaged material. Confirm that the plate does not interfere with the hinge arm, cabinet edge or closing movement. PRINTING AND INSTALLATION Select material, wall thickness, infill and print orientation according to the expected load. Countersunk screw heads should finish flush with the plate without weakening it. Drill suitable pilot holes and use screws matched to the door thickness so they cannot break through the visible face. This configurable model is a repair aid and does not have a certified load rating. Check the fit carefully and test the repaired hinge under controlled conditions before normal use.
