Custom Tube & Profile Connector – Elbow, Tee, Cross and Corner STL

Designer

Rapid3d4service

Designer relation

Ingen

Kategori

Tools

Licens

Creative Commons Attribution ShareAlike Creative Commons - Attribution - Share Alike

$ ↺ SA

Attribution påkrævet; afledte værker skal deles under kompatibel ShareAlike-licens.

Designer commercial

None

Først set

2026-09-14 19:50

Sidst set

2026-09-15 08:20

Tags

Ingen tags fundet

Beskrivelse

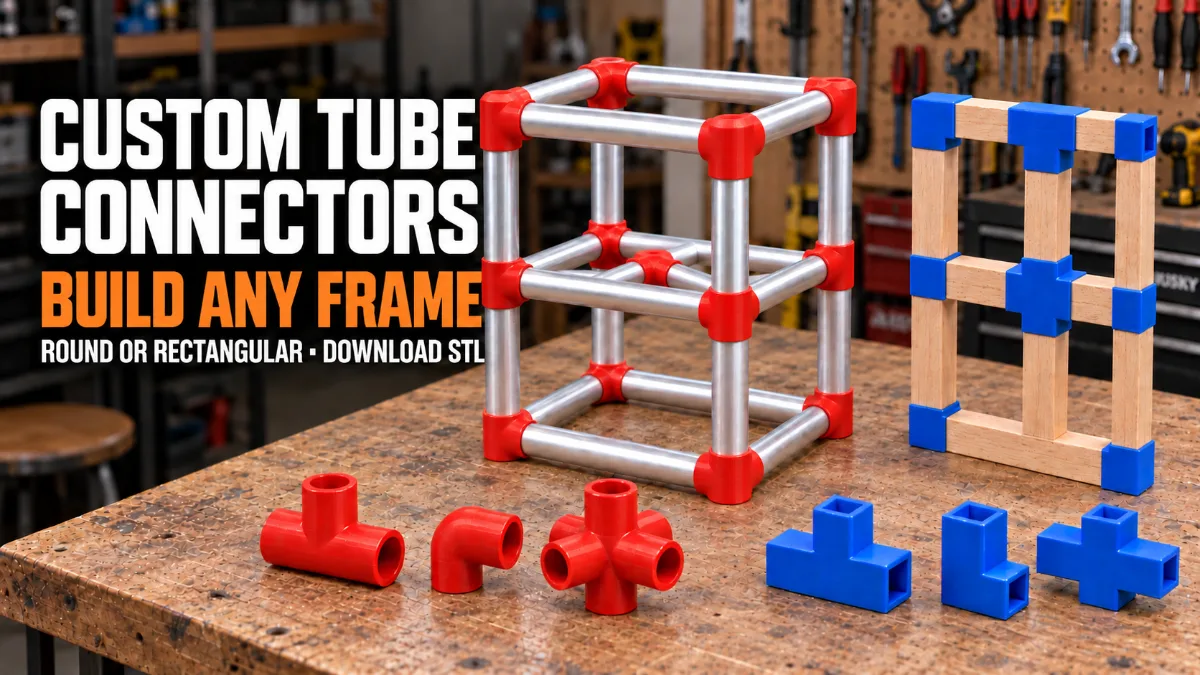

Create custom connectors for round tubes, square tubes and rectangular profiles—directly in your browser and without CAD software. Choose the required connector type, enter the dimensions of your tube or profile and generate a made-to-measure socket connector. The model can include optional side holes for screws to secure the inserted tubes. AVAILABLE CONNECTOR TYPES • 90-degree elbow • T connector • Flat four-way cross • Three-dimensional XYZ corner • Six-way connector SUPPORTED PROFILES • Round tubes and pipes • Square tubes • Rectangular profiles CONFIGURABLE PARAMETERS • Connector type • Profile type • Tube diameter or rectangular-profile dimensions • Socket insertion depth • Connector wall thickness • Fit clearance • Optional bore diameter • Screw dimensions IDEAL FOR • Lightweight modular frames • Workshop fixtures and prototypes • DIY storage racks • Display and exhibition frames • Plant supports and garden structures • Small greenhouse frames • Furniture-style tube constructions • 3D-printer enclosures • Camera and lighting frames • Replacement connectors in uncommon sizes • Round aluminum tubing • Square and rectangular profiles CONFIGURE AND DOWNLOAD Select the connection geometry, enter your measurements and inspect the generated 3D preview: https://www.buildyour3d.com/en/product/UniversalVerbinder After configuration, download the custom STL or continue to the 3D-print ordering option. MEASURING TIPS Measure the outside diameter of a round tube. For a square or rectangular profile, measure its outside width and height. Add suitable clearance so the tube can enter the socket without excessive force. Required clearance depends on the printer, filament, layer orientation and dimensional accuracy. Choose enough insertion depth to keep the connected tubes aligned. If retaining screws are used, confirm that their positions reach the inserted profiles without weakening the connector wall. PRINTING AND SAFETY PLA can be suitable for prototypes and light indoor constructions. PETG provides greater toughness for many workshop applications, while ASA may be preferable for outdoor use because of its improved weather and UV resistance. Print a test socket before producing an entire connector set. Verify dimensions, wall thickness, print orientation and screw-hole strength. These connectors have no certified load rating. They are not intended for climbing equipment, guard rails, overhead loads, safety barriers, pressurized plumbing, gas systems or structures whose failure could cause injury or substantial property damage.
