Parametric Socket Foot – Custom Flanged Base for Posts & Tubes

Designer

Rapid3d4service

Designer relation

Ingen

Kategori

Gadgets

Licens

Creative Commons Attribution ShareAlike Creative Commons - Attribution - Share Alike

$ ↺ SA

Attribution påkrævet; afledte værker skal deles under kompatibel ShareAlike-licens.

Designer commercial

None

Først set

2026-09-14 19:50

Sidst set

2026-09-18 08:20

Tags

ball-and-socket foot bulb socket base customizable display stand diy functional print mounting socket parametric post holder round tube sign stand square tube tube holder

Beskrivelse

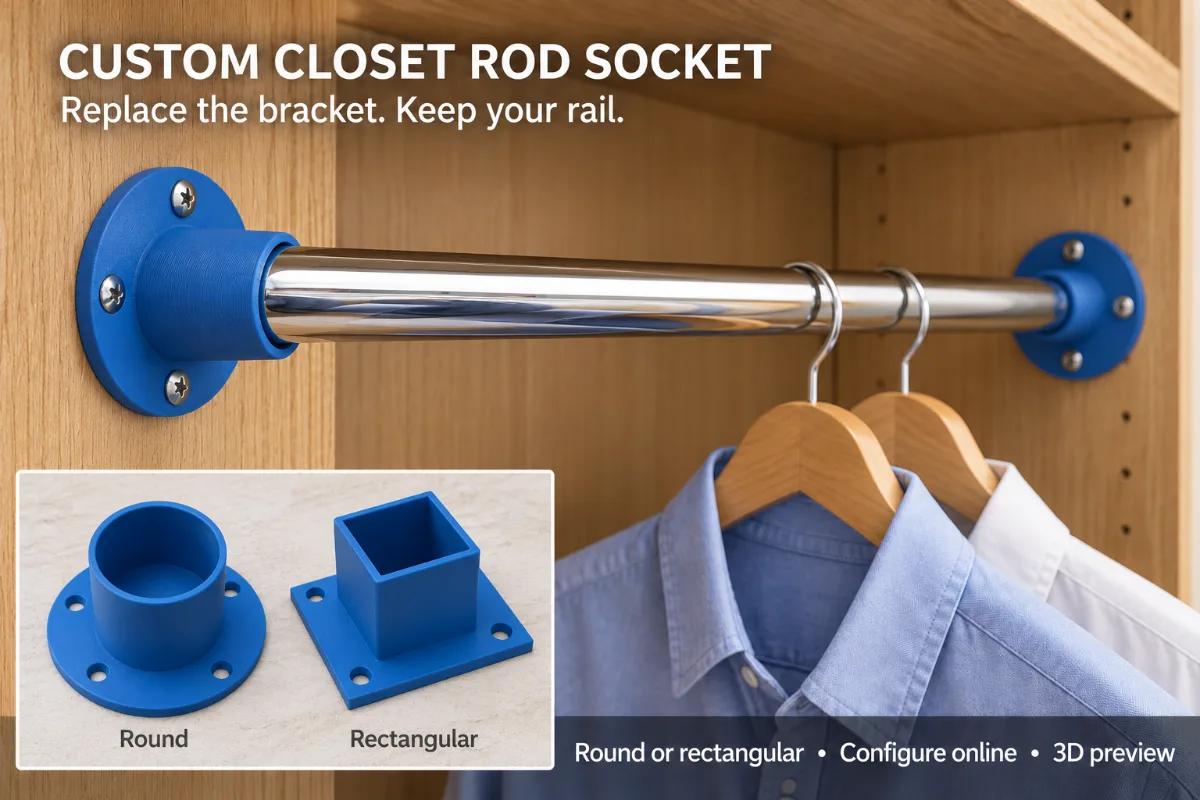

Build a mounting base that matches your profile instead of adapting your project to a fixed-size socket. This model creates a round, rectangular or triangular socket with a closed bottom flange. Optional flange holes let you screw the base onto a suitable supporting surface. One useful application is a lightweight display stand: the wooden upright fits into the socket, while the flange attaches to a separate base board. CONFIGURE YOUR OWN SIZE Adjust the profile dimensions, fit clearance, socket height, wall thickness, plate thickness and flange extension. Configure the mounting-hole count, diameter and position to suit the layout. Change the parameters directly in your browser and inspect the result in an interactive 3D preview. No CAD software installation is needed. Open the configurator: https://www.buildyour3d.com/en/product/custom_parametric_socket_foot_v1 BEFORE PRINTING Check the actual profile size, corner shape and insertion clearance. Make sure the flange leaves enough room for screw heads and tool access. The bottom is closed: this is a receiving socket, not a through-pipe fitting. The design has no automatic pull-out lock, and the final assembly’s stability depends on the upright, supporting base, fasteners and printed material.
