Parametric Electronics Panel Generator Openscad

Designer

iLab

Designer relation

Ingen

Kategori

Hobby & DIY

Licens

Standard Digital File License

$ ↺

Se platformens konkrete vilkår.

Designer commercial

None

Først set

2026-09-15 20:28

Sidst set

2026-09-15 20:28

Tags

SCAD open OpenSCAD parametric electronic generator fan switch rj45 usb usb c display mount organize panel frontpanel controlpanel enclosure universal

Beskrivelse

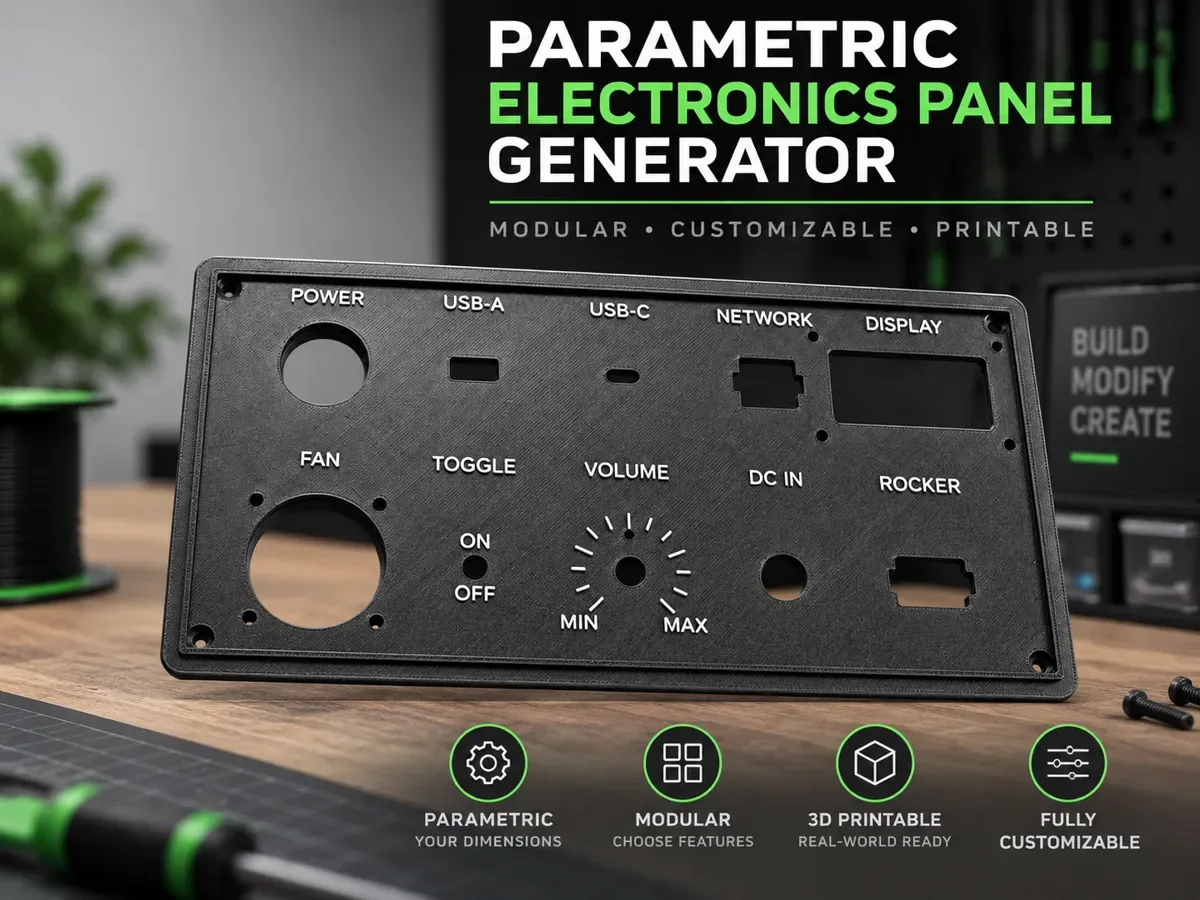

Boost Me (for free) Thank You :) Boost Parametric Electronics Panel Generator Create fully customized front panels for electronics projects directly in MakerWorld’s Parametric Model Maker. This generator combines a configurable base plate, component-specific cutout presets, fan openings, mounting holes and optional labels in one single OpenSCAD file. It is designed for control panels, power supplies, workshop equipment, enclosures, test stations, model-making projects and other custom electronics applications. INFO: use always the latest Version!!! Customizable panel The base panel can be adjusted to fit the required enclosure or installation area. Available panel settings include: panel width and height panel thickness rounded corners upper edge chamfer optional raised border four optional mounting holes optional countersinks manual or automatic cutout arrangement The model is centered around the origin and has a completely flat underside for easy printing. Up to 10 configurable cutouts The panel supports up to ten independently configurable component positions. Each cutout can be: enabled or disabled positioned individually rotated freely arranged automatically in a grid combined with mounting holes combined with anti-rotation holes combined with side locking reliefs labeled separately Selecting None disables the corresponding cutout. Included cutout types The generator includes basic geometric openings as well as presets for common electronic components. Available types include: round hole slot rectangle rounded rectangle USB-A USB-C
