Parametric Pcb Enclosure Generator Openscad

Designer

iLab

Designer relation

Ingen

Kategori

Hobby & DIY

Licens

Standard Digital File License

$ ↺

Se platformens konkrete vilkår.

Designer commercial

None

Først set

2026-09-15 20:28

Sidst set

2026-09-15 20:28

Tags

parametric OpenSCAD generator full electronics box customizable heat insert snap fit case prototype IOT raspberry pi arduino DIY project connector box verteilerdose junktionbox scalable junction box kabelmanagement cable distributor box aufbewahren storage

Beskrivelse

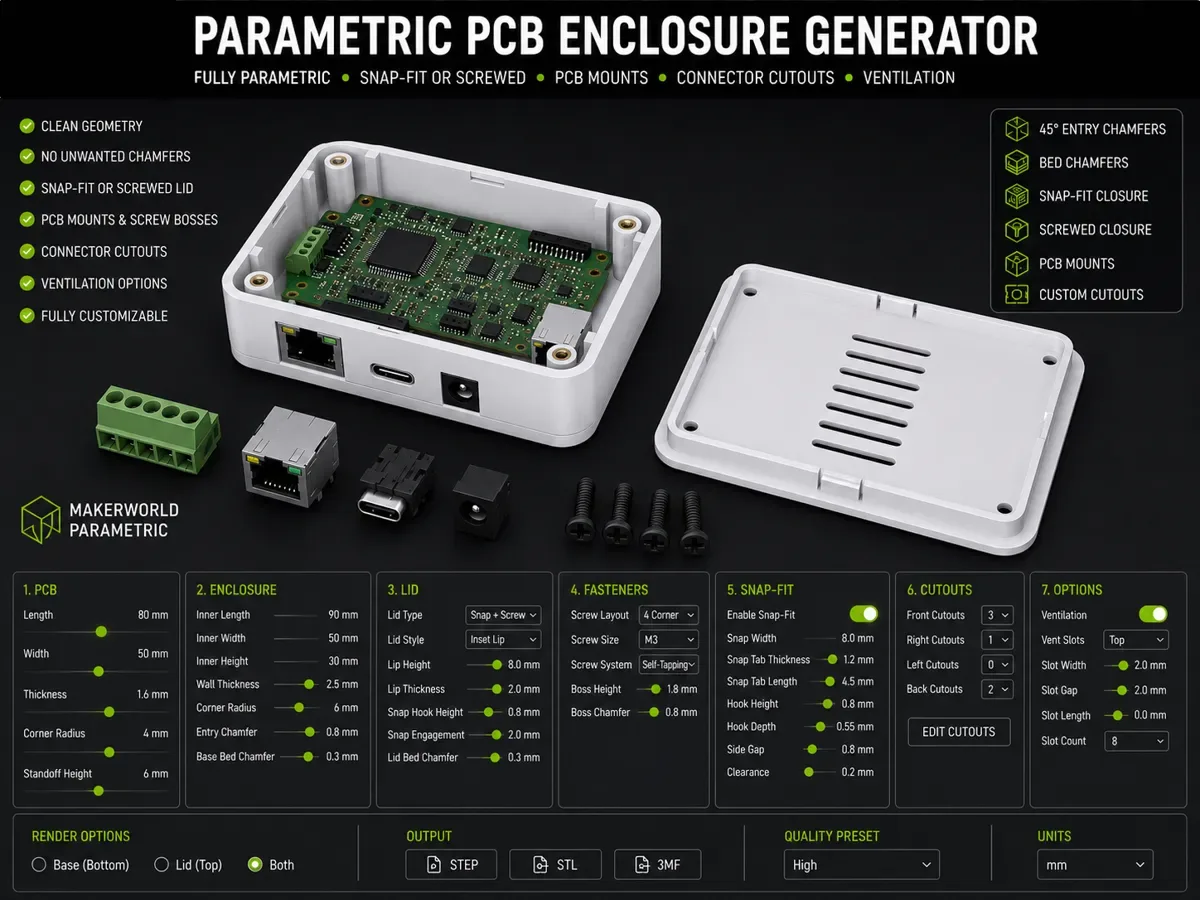

Boost Me (for free) Thank You :) Boost Parametric PCB Enclosure Generator Design fully customized PCB enclosures in just a few clicks! The Parametric PCB Enclosure Generator is a powerful OpenSCAD generator that creates professional enclosures for virtually any PCB. Simply enter your board dimensions, mounting-hole positions, and enclosure settings to generate a printable case tailored to your electronics. Whether you're building a prototype, an IoT device, a sensor module, a controller, or a custom embedded project, this generator helps you create clean, professional-looking enclosures without the need for CAD modeling. Features ✔ Fully parametric PCB enclosure ✔ Custom PCB dimensions ✔ Rectangular or individually positioned mounting holes ✔ PCB mounting standoffs with optional locator bosses ✔ Rounded enclosure corners ✔ Adjustable wall and bottom thickness ✔ Adjustable enclosure height ✔ Inset Lip or Overlapping Rim lid styles ✔ Snap-Fit lid ✔ Screw-fastened lid ✔ Snap + Screw combination ✔ Independent enclosure corner screw bosses ✔ Self-tapping screws, through holes or heat-set inserts ✔ Automatic screw size presets (M2 / M2.5 / M3 / M4) ✔ Fully configurable connector cutouts on all four sides ✔ Multiple cutout shapes: Rectangle Rounded Rectangle Circular Slot ✔ Adjustable ventilation patterns ✔ Configurable corner radius ✔ Local 45° entry chamfers ✔ Optional print-bed chamfers ✔ Generate: Base Lid Both Perfect For Arduino projects ESP32 / ESP8266 Raspberry Pi Pico STM32 Sensor modules Relay boards Power supplies Custom electronics DIY projects Industrial prototypes Printing Recommendations Layer Height: 0.20 mm Wall Count: 3–4 Top / Bottom Layers: 4–5 Infill: 15–25 % Supports: Not required (default settings) Material: PLA, PETG, ABS or ASA Measuring Your PCB For the best fit, measure: PCB length PCB width PCB thickness Mounting-hole diameter Mounting-hole positions Height of the tallest component Required connector locations The generator automatically creates the enclosure around these dimensions while maintaining the selected clearances. Notes Connector openings, ventilation, screw bosses, and mounting features are fully configurable, allowing you to create anything from a simple protective enclosure to a feature-rich project box. The generated geometry is optimized for FDM 3D printing and designed to produce clean, printable parts with minimal post-processing. If You Like This Model ⭐ Please leave a rating if you find this generator useful. 📸 I'd love to see your finished projects—feel free to upload photos of your printed enclosures! 💚 Happy printing!
