Modular Background Panels / Wall Art

Designer

CE_YT

Designer relation

Followed

Kategori

Household

Licens

Standard Digital File License

$ ↺

Se platformens konkrete vilkår.

Designer commercial

MakerWorld Commercial License

Først set

2026-07-15 10:58

Sidst set

2026-07-15 10:58

Tags

acoustic background panel plate shape triangle cube bolt 3dprintedthread thread connection stand hook small large magnet camera photo video youtube instagram TikTok vertical horizontal light box white relief art modular tiles wall decorative

Beskrivelse

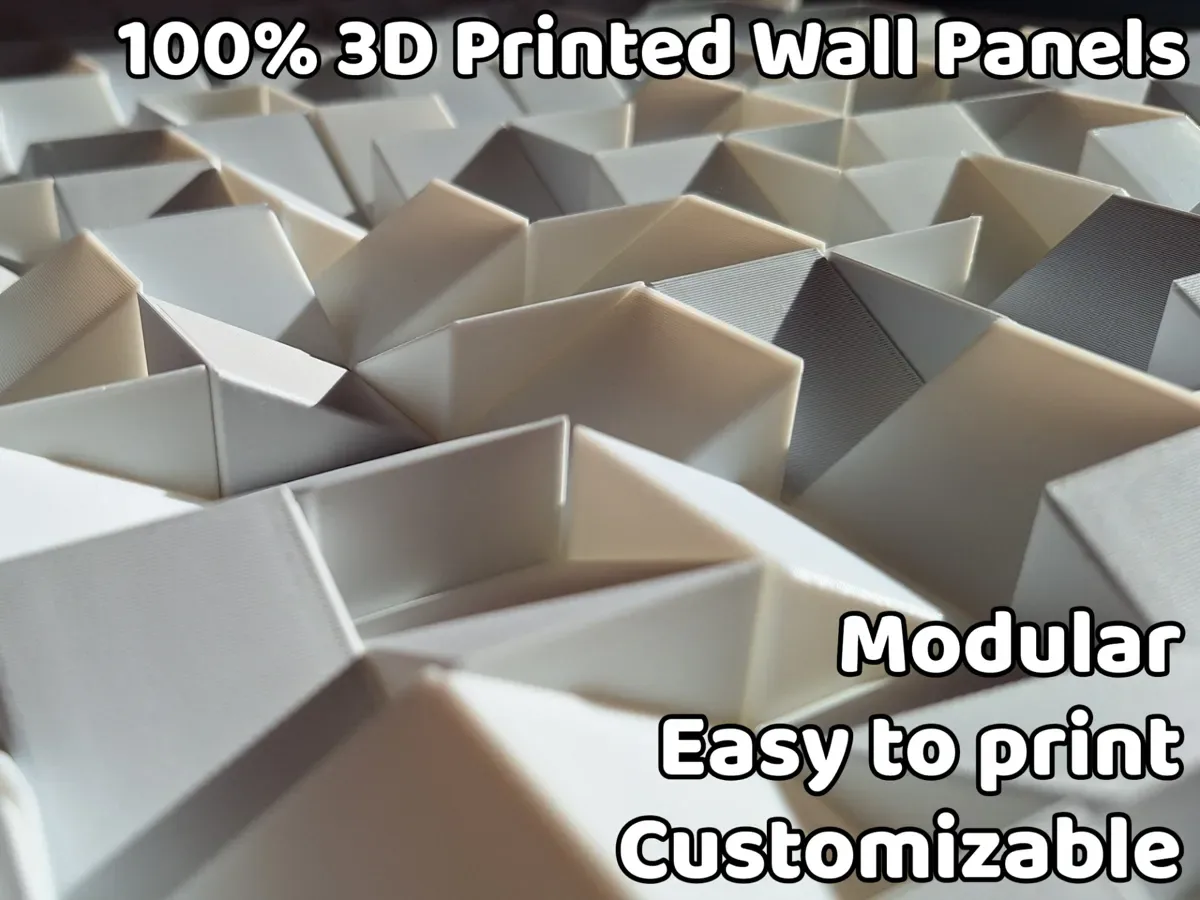

I made these panels to be lightweight, sturdy and perfect for video backdrops. Inspired by traditional wood panel ard, I created a scalable system using efficient triangular shapes and minimal filament use (all dimensions you see are in Millimeter). I designed 2 different shapes you can choose from: You have the triangular shapes: Shape_A22 Shape_A32 Shape_A42 I also made cube shapes: Shape_B10 Shape_B20 Shape_B30 As you can tell, the length of the shape is in het name. All shapes have 3D printed thread for the 3D printed bolts. I made 2 different size bolts: Bolt_Connection > To mount all the connection pieces and extra parts into the plates Bolt_Panel > To mount all the shapes onto the plates The thread is the same but to mount the shapes properly I recommend using the longer bolts I made different panels, these are the dimensions: 090x090 150x090 150x150 180x090 180x180 210x210 240x240 300x150 300x300 360x180 360x360 420x210 420x420 480x240 480x480 For the big panels I provided the 3D printed thread only in the corners and the middle of the side. The 3D printed thread is for all connections and extra parts which need to be mounted with Bolt_Connection Boost Me (for free) Do you like this model? Please consider supporting me with a boost! Boost If you have any suggestions for new shapes, more dimensions of the panels or something different, please let me know in the comments!
