Large Illuminated Lunar Wall Lamp Version 1

Designer

DazedDice

Designer relation

Ingen

Kategori

Household

Licens

Creative Commons Attribution NonCommercial CC BY-NC license

$ ↺

Attribution påkrævet; kommerciel brug er ikke tilladt.

Designer commercial

MakerWorld Commercial License

Først set

2026-07-14 16:37

Sidst set

2026-07-14 16:37

Tags

moon lamp led led light wall relief no support lunar wall lamp wall light Light illumination home decor high detail ambient

Beskrivelse

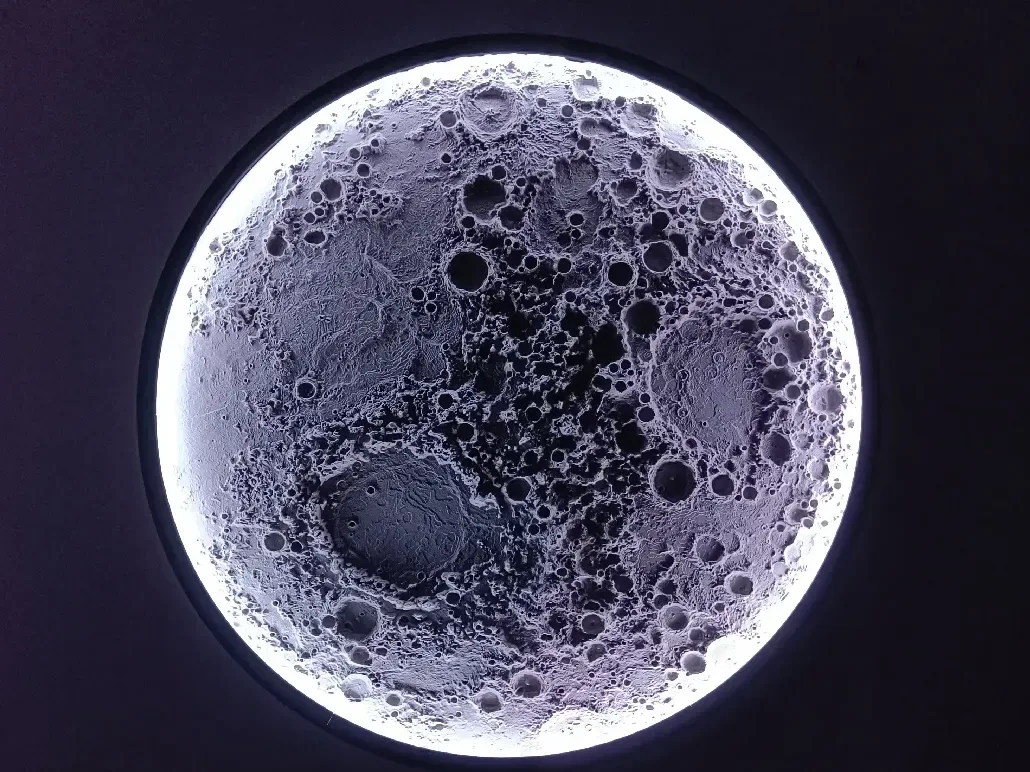

Note: A refined Version 2 is available. This original Version 1 remains fully printable, while Version 2 introduces an improved frame design, better light sealing, and easier assembly. Version 2 model: Version 2: https://makerworld.com/nl/models/2320985-large-illuminated-lunar-wall-lamp-version-2#profileId-2534929 This is a larger and more decorative remix of a moon lamp originally designed by Martin Kozak. The moon is split into four separate pieces and has a diameter of almost 50 cm. I also designed a custom frame that is more subtle than the original and better matches the modified moon shape. To achieve the best surface quality, the moon parts were printed flat on the build plate using variable layer height. No supports are needed. Materials used: PLA (matte recommended for frame) Superglue Joint sealant (to fill small gaps between the moon pieces) Spray paint (light gray or beige recommended, after filling the gaps) MDF board thickness 3mm (to cut a circle of 50.2 cm diameter to glue all the pieces on and add strength) 1.53m LED strip max 9mm width (COB LED strips are recommended for a more uniform light output) Frame/painting hook This remix inherits the CC BY-NC license. Boost Me (for free) If you like this model, a boost, like, or rating would be greatly appreciated. Thank you! Boost
