Parametric Ventilation Filter Grid Openscad

Designer

iLab

Designer relation

Ingen

Kategori

Household

Licens

Standard Digital File License

$ ↺

Se platformens konkrete vilkår.

Designer commercial

None

Først set

2026-07-14 16:37

Sidst set

2026-07-14 16:37

Tags

vent grid cover parametric ventilation ventcover wallvent fancover airflow airgrille honeycomb louvers filtergrid drainvent customizable air flow

Beskrivelse

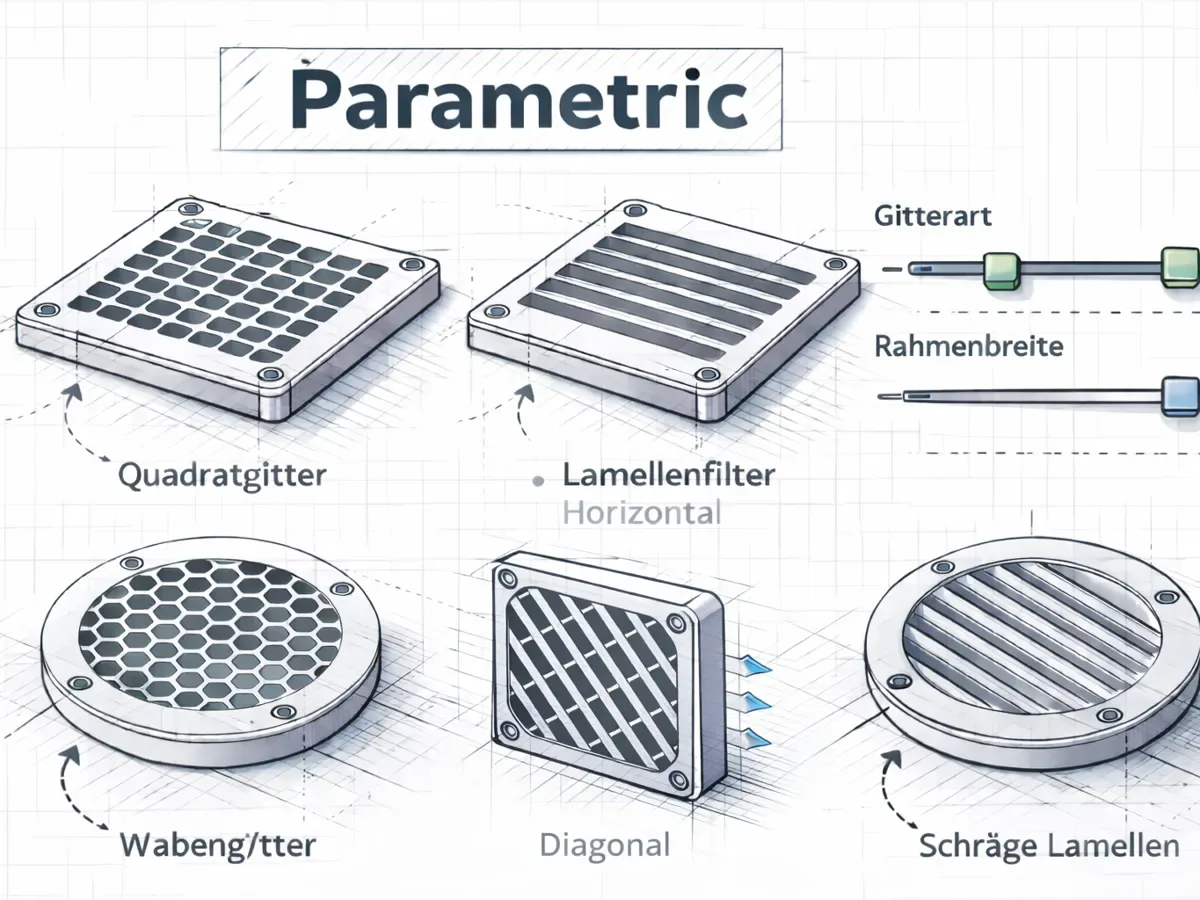

Boost Me (for free) Thanks :) Boost Parametric Ventilation / Filter Grid A fully parametric ventilation and filter grid designed for wall outlets, fans or air ducts. All important dimensions can be adjusted directly in OpenSCAD, allowing you to generate the exact size and grid type you need. The model automatically generates the frame around the mounting holes and keeps the grid evenly distributed. Perfect for: Wall ventilation outlets Fan covers Dust filters Air intake protection Drain / weather grids Features Fully parametric design Adjustable mounting hole distance Multiple grid types Optional round or rectangular design Symmetrical grid distribution Automatic frame generation Optional 45° drainage louvers for outdoor vents Chamfered edges and screw holes Available Grid Types Square Grid Diagonal Grid Honeycomb Grid Horizontal Louvers Vertical Louvers 45° Drain Louvers (for wall outlets and water drainage) Parameters Mounting filter_breite Distance between screw hole centers (X axis) filter_hoehe Distance between screw hole centers (Y axis) schraubloch_durchmesser Diameter of the mounting holes Frame rahmenbreite Width of the frame around the mounting holes. The screw hole is centered within this width. Example: rahmenbreite = 10 5 mm toward the grid 5 mm toward the outer edge
