Air Conditioner Vent Outlet for Window

Designer

3ddruckandi

Designer relation

Ingen

Kategori

Household

Licens

Standard Digital File License

$ ↺

Se platformens konkrete vilkår.

Designer commercial

MakerWorld Commercial License

Først set

2026-07-10 08:57

Sidst set

2026-07-24 20:40

Tags

klima klima adapter air conditioning seal air hose kalt cold air window window lead-through AC Adapter air conditioning cover air conditioning lines

Beskrivelse

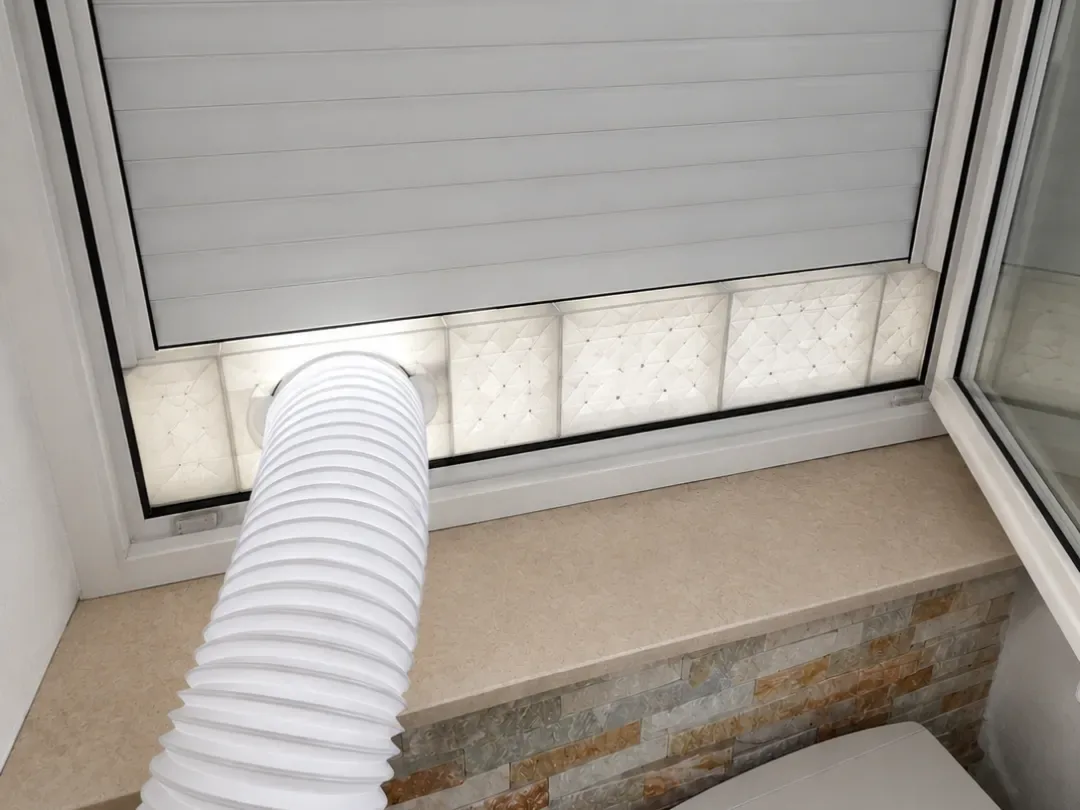

Air Conditioner Vent Outlet for the Window I have designed a model with which you can easily seal the window without much effort. I highly recommend printing it from PETG due to the temperatures. Currently, it only works with an adapter on the hose, but I will also create a model for that in the coming days. However, if your adapter has the dimensions shown in the picture below, it will fit. The adapter must have a height of approx. 73mm, a width of 203mm, and a depth of 10mm. The inner window frame must be at least 17mm for the parts to be slid in. For all parts, I have named the plate according to the width of the parts. This always refers to the inner width without the plug connection, which is an additional 20mm and must be subtracted when adapting the model to fit your window. Please print one of the two end pieces first to ensure that the window fits and the roller blind closes perfectly. In the next picture, you can see from where measurements are always taken. I wish you great success with printing and would greatly appreciate a review.
