Custom U-Profile Bracket with Holes – Parametric Mounting Channel

Designer

Rapid3d4service

Designer relation

Ingen

Kategori

Tools

Licens

Creative Commons Attribution ShareAlike Creative Commons - Attribution - Share Alike

$ ↺ SA

Attribution påkrævet; afledte værker skal deles under kompatibel ShareAlike-licens.

Designer commercial

None

Først set

2026-09-14 19:50

Sidst set

2026-09-15 16:20

Tags

3D printable bracket cable channel support electronics holder mounting aid mounting channel profile support bracket rail mounting bracket U channel bracket U profile bracket

Beskrivelse

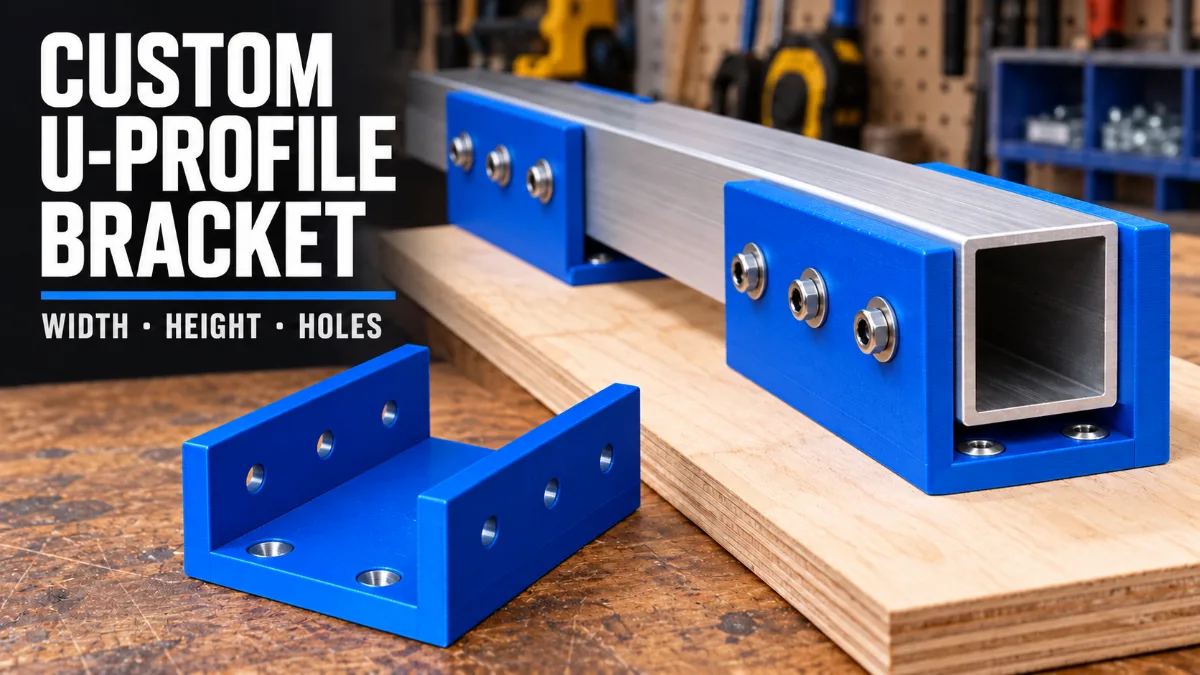

Create a custom U-profile bracket for mounting, guiding or retaining rectangular profiles, lightweight rails, housings and workshop components. The model consists of a flat base and two parallel side walls. Its width, height, length and material thickness can be configured to match the component being held. Centered hole rows can be added to the base, both side walls or one selected side. Adjustable parameters: Outer width Overall height Profile length Material thickness Number of holes per surface Hole spacing Hole diameter Surfaces containing holes Typical applications include: Rectangular tube holder Lightweight aluminum-profile support Custom mounting channel Workshop fixture Equipment guide bracket Cable-channel support Electronics housing holder Prototype assembly fixture Spacer and alignment bracket Furniture and shelf accessory For the illustrated application, two brackets are fixed to a plywood panel through their base holes. A lightweight rectangular aluminum tube rests inside both U-channels and is secured through aligned side holes. The brackets are positioned far enough apart to guide the profile without twisting. Configure the bracket and generate your custom STL: https://www.buildyour3d.com/en/product/parametric_u_profile_bracket_with_holes_v1 Measure the component at its widest point and include suitable manufacturing clearance. Confirm that the selected wall thickness, hole spacing, fasteners, material and print orientation are appropriate for the expected load. This configurable 3D-printed model is intended for prototypes, mounting aids and individually verified, non-safety-critical applications. It must not be used as a structural joist hanger, fall-protection component, vehicle part or support where failure could cause injury or significant damage. The product supports adjustable dimensions and centered hole rows on the base, both sides or one selected side: BuildYour3D.
