Dual-color furniture handle / drawer handle

Designer

mgm86

Designer relation

Followed

Kategori

Household

Licens

Standard Digital File License

$ ↺

Se platformens konkrete vilkår.

Designer commercial

Patreon

Først set

2026-07-14 16:37

Sidst set

2026-07-15 10:58

Tags

drawer handle furniture handle handle dual color multi color customizable customizable handle

Beskrivelse

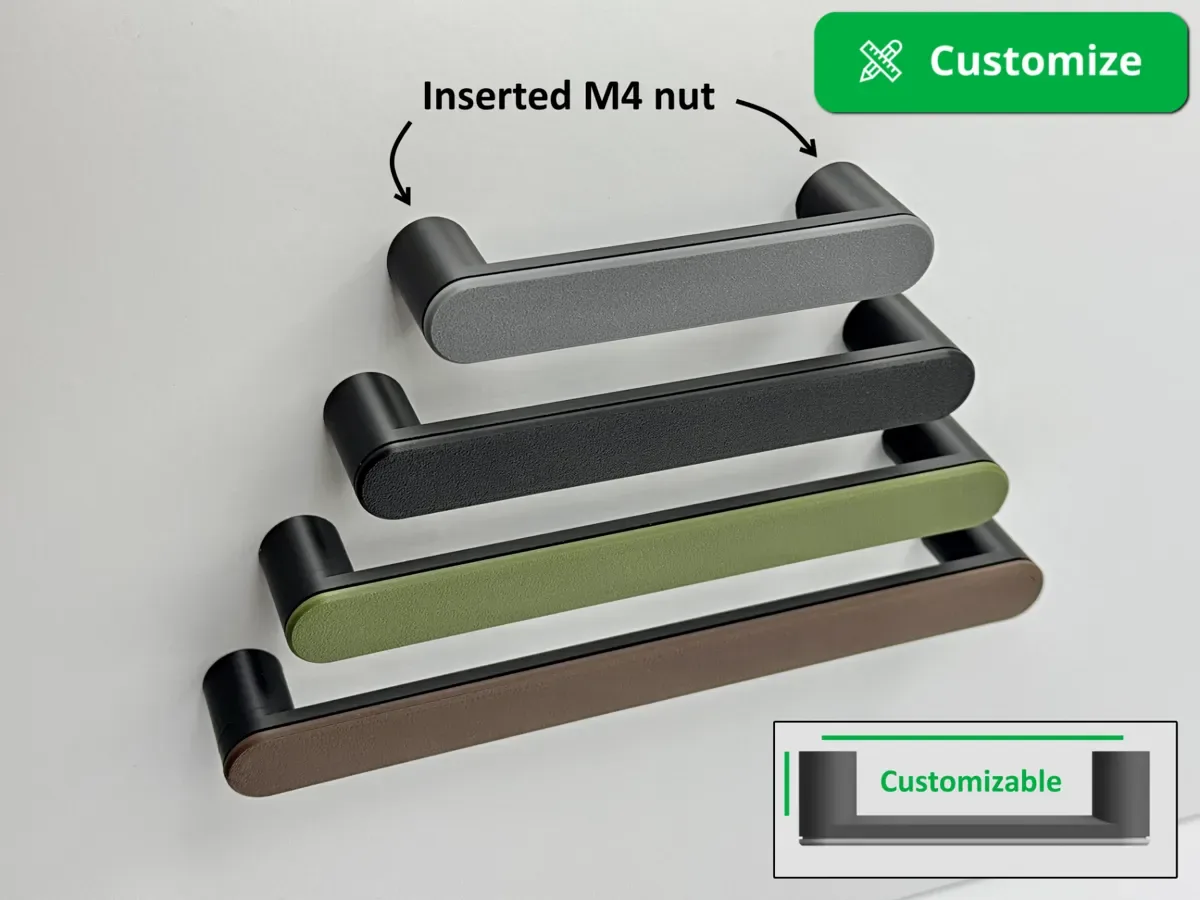

Boost Me (for free) Thanks for your support! Boost Bored of the usual single-color furniture handles? Then this model could be the solution. Thanks to the separate front panel, there are endless color combinations. Also great for brightening up furniture in children's rooms. M4 nuts are used for high stability. The back is rounded for a comfortable feel. There are 4 standard sizes and an additional generator for freely customizable handles. Print profiles: 96mm hole distance 128mm hole distance 160mm hole distance 192mm hole distance You need a different hole distance? Just use the generator. Assembly: Print settings: Main part: 0,12mm layer height (due to the rounded back) 20% infill 3 walls for the 96 and 128mm variant 4 walls for the 160 and 192mm variant Cover plate: standard settings Print generated handles in 2 colors: Rightclick on the part → Cut → into Objects. Now you get 2 seperate parts and you can move one part on a seperate print part. Nut / screw: You need two M4 nuts and standard M4 screws for fastening the handle. Maximum room for the screw in the handle: 21mm. A screw with a length of 25-30mm should be suitable for the most furniturs. Link to the knob: https://makerworld.com/de/models/2579997-dual-color-furniture-knob-drawer-knob#profileId-2845407
