Foldable Coat Hook Print In Place Spiral Vase

Designer

mgm86

Designer relation

Followed

Kategori

Household

Licens

Standard Digital File License

$ ↺

Se platformens konkrete vilkår.

Designer commercial

Patreon

Først set

2026-07-14 16:37

Sidst set

2026-09-15 20:28

Tags

foldable coat hook coat coat hook clothes hook Foldable print in place spiral spiral vase hook wall hook

Beskrivelse

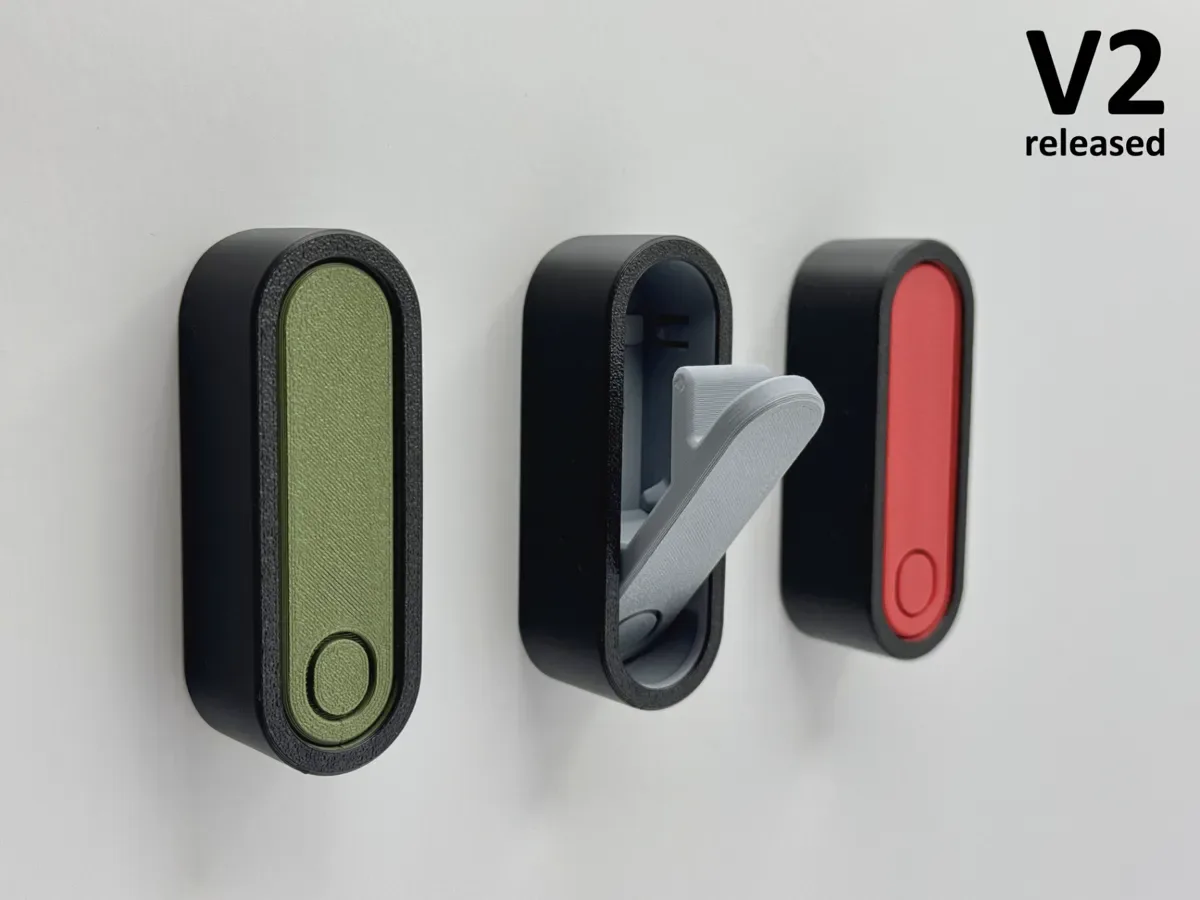

Boost Me (for free) Thanks for your support! Boost Keep your space organized and with this minimalist folding hook. It’s designed to be functional when you need it and unobtrusive when you don’t. Features: Stable print in place hinge The hook engages when closing to prevent accidental opening Without z-seam (spiral vase print) Multicolor without AMS Easy assembly without glue or other non-printed parts UPDATE V2: Some people had the problem that the spring in the locking mechanism broke. That's why I developed the V2 and optimized the locking mechanism. The locking force is now more comfortable, and nothing should break anymore. Print settings if you don't use the print profile: Frame + Hook and mounting part: Frame + Hook must be print as one part! 3 walls 0,2mm layer 20% gyroid infill Cover: Sprial vase mode with 0,8mm line width (can be print with 0,4mm nozzle Print profiles: The added print profile from “user_3646624132" does not use the spiral vase mode. If you choose this profile you will have a z-seam on the cover part. Assembly: Screw the mounting plate to the wall Open the hook. The first time, you'll need to use a little more force: Attach the frame with hook as shown: Push the cover on the frame
