Hexagonal Light

Designer

ZampoElia93

Designer relation

Ingen

Kategori

Household

Licens

Standard Digital File License

$ ↺

Se platformens konkrete vilkår.

Designer commercial

MakerWorld Commercial License

Først set

2026-07-14 16:37

Sidst set

2026-07-14 16:37

Tags

esagono light hexagonal lighting ceiling light electronics Lamp modulabile modular garage LED led strip lighting 12V do it yourself makers poly hexagon honeycomb ledlighting hexagon lamp hexagonaldesign modular led support geometry homedecor MakerLab A1 A1 MINI

Beskrivelse

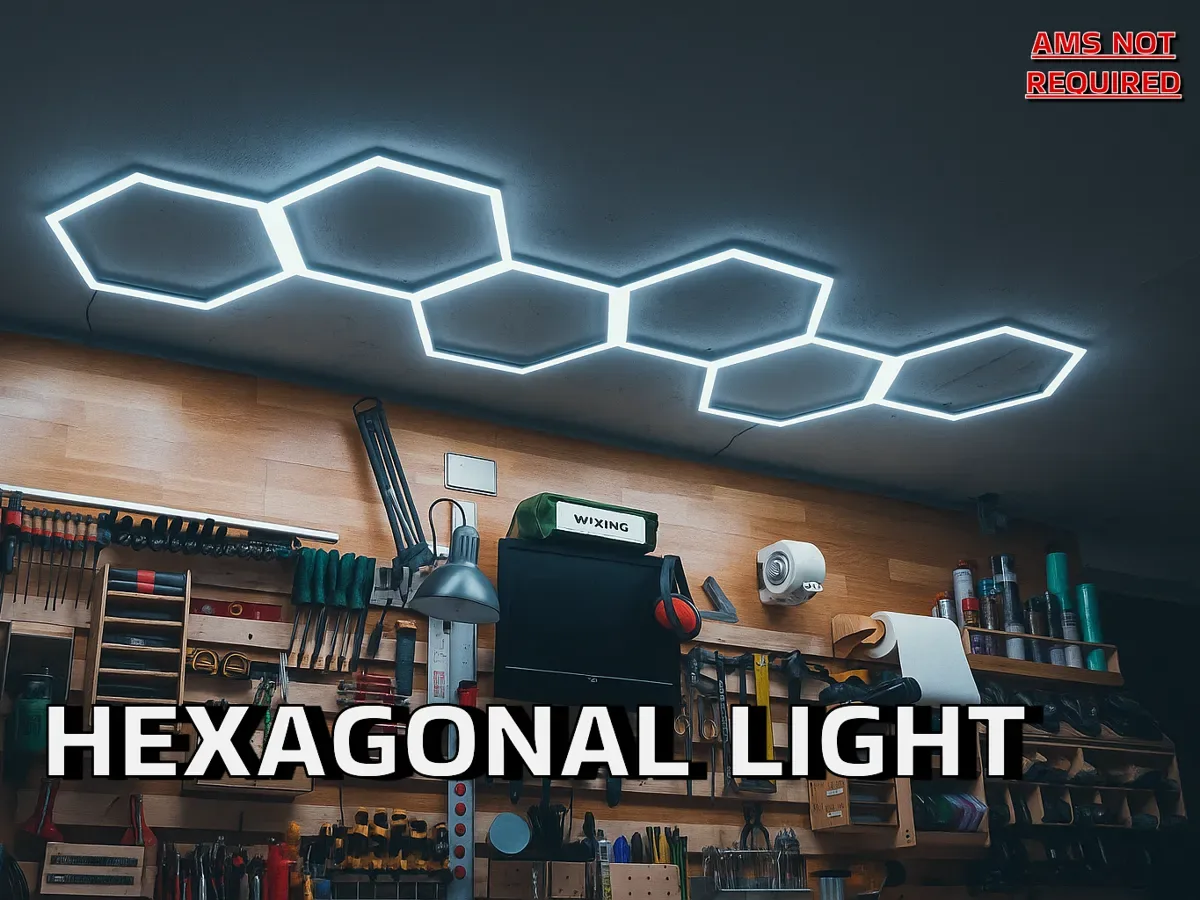

🟡 Modular Hexagonal Ceiling Light for LED Strips – 3D Printable This modular hexagonal ceiling light is designed to be 3D printed and easily customizable Each module can be combined with others to create infinitely expandable configurations, adapting to walls or ceilings in a creative and functional way Designed to house COB LED strips (cool or warm light), the ceiling light features a 3D printable opal cover, which ensures a uniform and soft light diffusion Boost Me (for free) 🚀Do you like this geometric design? Help me 'boost' the project!🚀 Boost 🔹 Key features Module dimensions: approximately 420 × 480 mm Recommended lighting: COB LED strip – each module uses approximately 1.4 meters Opal cover: PETG Translucent for a diffused light effect Modular expandability: interlocking connections to create various geometric shapes Internal channels: designed to house and protect the LED strip 🧩 Components included in the printable files 6 perimeter channels with interlocking fit for the opal cover (per module) Opal diffuser 3D printable in PETG Translucent Corner connectors in three variants: 🔸 Single interlocking – for closure or wall anchoring 🔸 Double interlocking – for linear connection of two modules 🔸 Triple interlocking – for central connections to three modules 🧩 Recommended components for the project LED STRIP : 👉 12 volt COB 5m 👈 👉 220 volt COB 5m 👈 POWER SUPPLY: 👉 12 volt 100w Power Supply 👈 CONNECTORS: 👉 COB LED strip connectors 👈 ELECTRICAL CABLES 👉 Cables for LED connection 👈 🛠️ Technical and assembly tips ✅ Print bed calibration: perform it precisely to ensure adhesion and compatibility of the interlocking parts 🔒 Assembly: glue the interlocking parts after a test assembly to ensure solidity 🔥 Heat dissipation: you can apply aluminum adhesive tape inside the LED channels to improve heat dissipation (optional but recommended) ⚡ Electrical connection between modules: To electrically connect multiple modules, simply drill a small 3 mm hole at the joining point Through this hole, you can pass the cables to parallel the LED strip between the modules, achieving a uniform and tidy power supply throughout the structure 💡 Customization The system is completely modular: you can expand the composition by adding new hexagons, rotating them, or combining them into unique geometric patterns, adaptable to any space or environment Membership "Turn your passion into a business ✨" Unlock the commercial license and sell my designs in your store. Join 🧾 Final notes An elegant and functional 3D printable ceiling light, ideal for those looking for a customizable lighting project with a modern geometric design Perfect for walls, ceilings, or as a decorative lighting installation
