Heavy duty structural shelf brackets, set of 3

Designer

Alexandru Serban

Designer relation

Ingen

Kategori

Household

Licens

Standard Digital File License

$ ↺

Se platformens konkrete vilkår.

Designer commercial

MakerWorld Commercial License

Først set

2026-07-10 08:57

Sidst set

2026-07-17 16:08

Tags

brackets bracket angle support shelf bracket structural wall mount shelf corner brace diy organization functional supporti

Beskrivelse

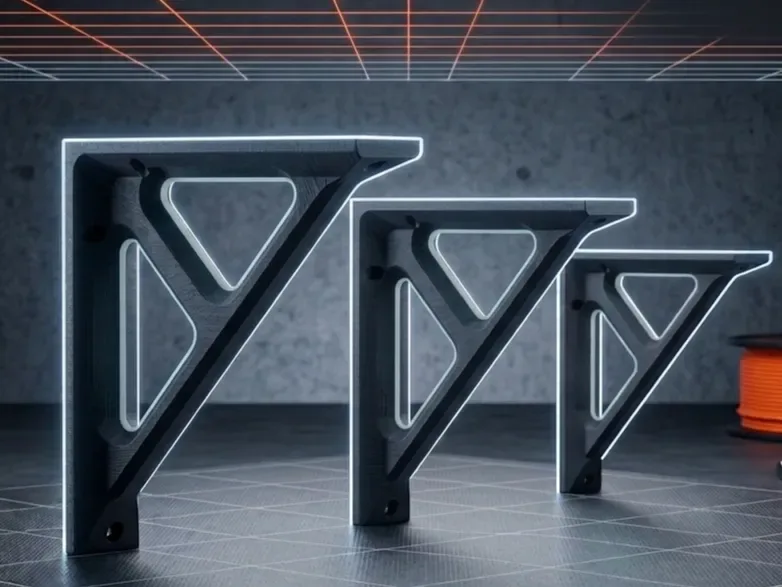

Heavy-Duty Structural Brackets (Set of 3 Sizes) - Material Optimized This is a set of 3 heavy-duty structural brackets designed with a perfect balance between material consumption and mechanical strength. Thanks to the optimized geometric internal truss system, these brackets offer maximum rigidity and weight-bearing capacity without wasting filament. Perfect for workshop shelving, custom furniture reinforcement, or any demanding DIY project. Technical Specifications & Dimensions Size Dimensions (Length x Height) Width / Thickness Mounting Hole Diameter Large 22.0 cm x 22.0 cm 4.80 cm 0.6 cm (6 mm) Medium 17.6 cm x 17.6 cm 3.80 cm 0.5 cm (5 mm) Small 13.2 cm x 13.2 cm 2.88 cm 0.4 cm (4 mm) Recommended Print Settings To guarantee the best structural performance, I recommend the following slicing parameters: Filament: PETG, ABS, ASA, or PA-CF for heavy loads. High-quality PLA/Tough PLA works great for standard utility shelves. Wall Loops: 4 to 6 perimeters (critical for structural brackets). Top/Bottom Layers: 5 layers. Infill: 25% - 30% using Gyroid or Cubic pattern for uniform multi-directional strength. Like this design? Don't forget to give it a Like, download it, and upload your makes! Seeing your prints and setups helps a lot. Happy printing! Membership Join my membership to get access to my commercial-use 3D models. Members can print and sell physical products made from my designs, while supporting the creation of new models, updates, and exclusive releases. Perfect for makers, small shops, and 3D printing businesses. Join Boost Me (for free) THANKS! Boost Commercial License Available Thank you for checking out my model! This model is for personal use only unless a commercial license is purchased directly from me. If you would like to sell physical prints of this design, use it for your business, or include it in your shop, please contact me to get a commercial license. The commercial license allows you to sell finished 3D printed products made from this model, but it does not allow you to resell, share, remix, redistribute, or upload the digital files anywhere. For commercial license requests, custom versions, or business use, please contact me here on MakerWorld. Thank you for supporting independent 3D creators!
