Slide-Lock Carabiner

Designer

mgm86

Designer relation

Followed

Kategori

Hobby & DIY

Licens

Standard Digital File License

$ ↺

Se platformens konkrete vilkår.

Designer commercial

Patreon

Først set

2026-07-15 10:58

Sidst set

2026-07-15 10:58

Tags

carabiner karabiner snap hook slide lock Hook snap carabiner carabiner spring carabiner rubber band rubber rubber band spring metal spring spring accessory keychain keychain carabiner

Beskrivelse

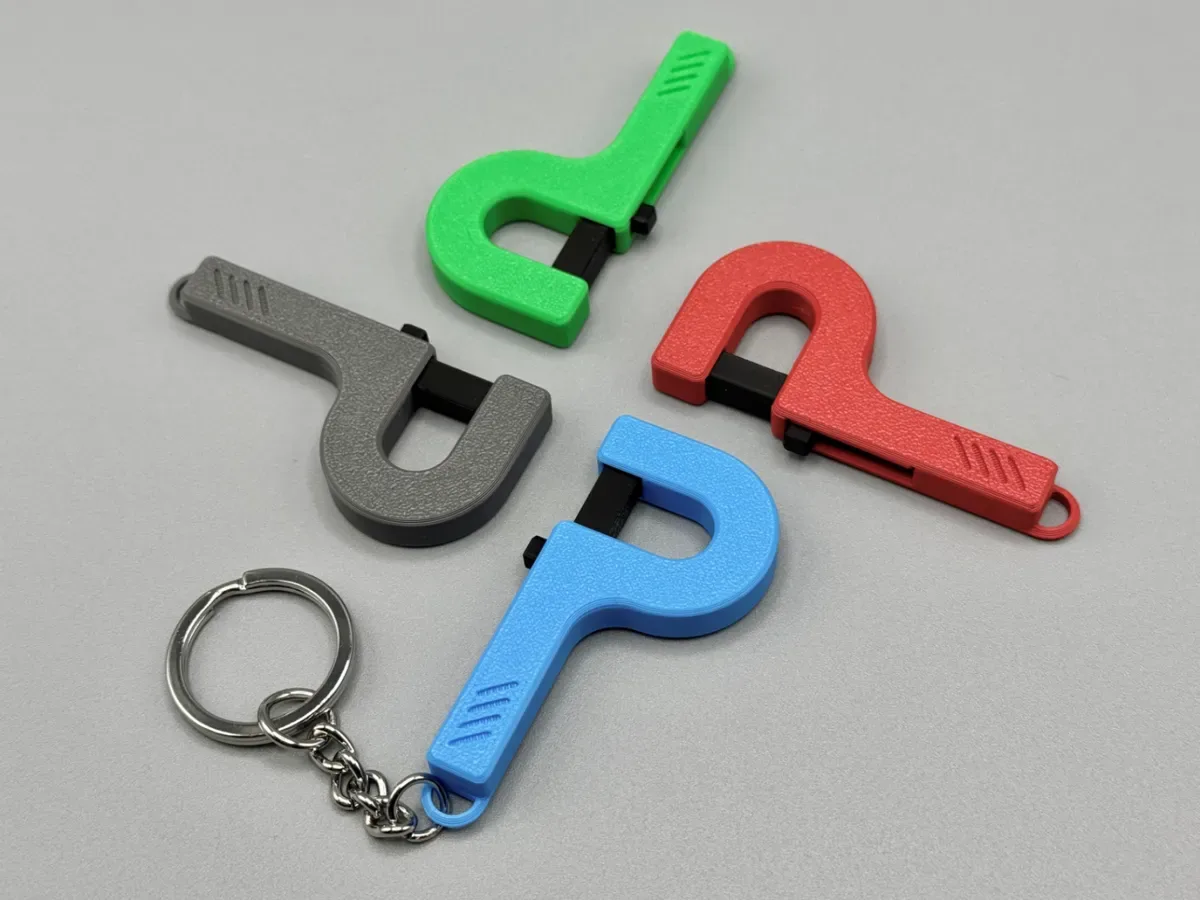

Boost Me (for free) Thanks for your support! Boost A compact and sturdy carabiner featuring a smooth sliding lock mechanism. The internal spring ensures a secure closure, while an optional rubber band version offers a simple and flexible alternative. Perfect for attaching to belt loops, bags, or keychains! Available in 2 versions: Rubber band (Ø1,4 x 20mm) Metal spring (0,4 x Ø5 x 25mm or 05 x Ø5 x 25mm I prefer the 0,4mm spring variant, because it has a nice pulling force and it is very easy to assemble. Tip: If you don't have the right rubber or spring at home: Since printing only takes approx 30 minutes and requires just 8 grams of filament, you can also print and assemble the carabiner without rubber or spring on a trial basis. Then you can buy the necessary components if you like it. Size of the opening: 10 x 13mm Do you wish a bigger version? Write it in the comments! Spring version installation: Place the slider and the spring measuring 0.4 x Ø5 x 25mm or alternatively 0.5 x Ø5 x 25mm into the carabiner. Then press the cover onto it. Use a drop of glue if necessary. The springs are linked below the text and can be ordered directly from the Bambulab Shop. Rubber band mounting option: Slide the slider all the way to the left. Hook in the rubber band (dimensions 1.4 x 20 mm). Pull the rubber band with your left hand and press it into the groove with your right thumb. Run your right thumb along the groove to press the rubber band in completely. With a little patience, this works quite well. Then press the cover on. Use a drop of glue if necessary. Tip: You can also start at the 180° turn and hook the rubber into the slider at the end. The rubber band is linked below the text and can be ordered directly from the Bambulab Shop. Both the spring and the rubber band are included in the Makers Beginners Kit. Print settings: For the main part and the lid: 0.2 mm layer height 50% infill Slider: 0.12 mm layer height Otherwise, standard settings. Information about the print profiles with only one print plate: The narrow strip is only used to clean the nozzle. It can be discarded after printing.
