Compact bottle opener (keychain)

Designer

mgm86

Designer relation

Followed

Kategori

Hobby & DIY

Licens

Standard Digital File License

$ ↺

Se platformens konkrete vilkår.

Designer commercial

Patreon

Først set

2026-07-15 10:58

Sidst set

2026-07-15 10:58

Tags

bottle opener bottle opener compact keychain bottles flaschenoeffner

Beskrivelse

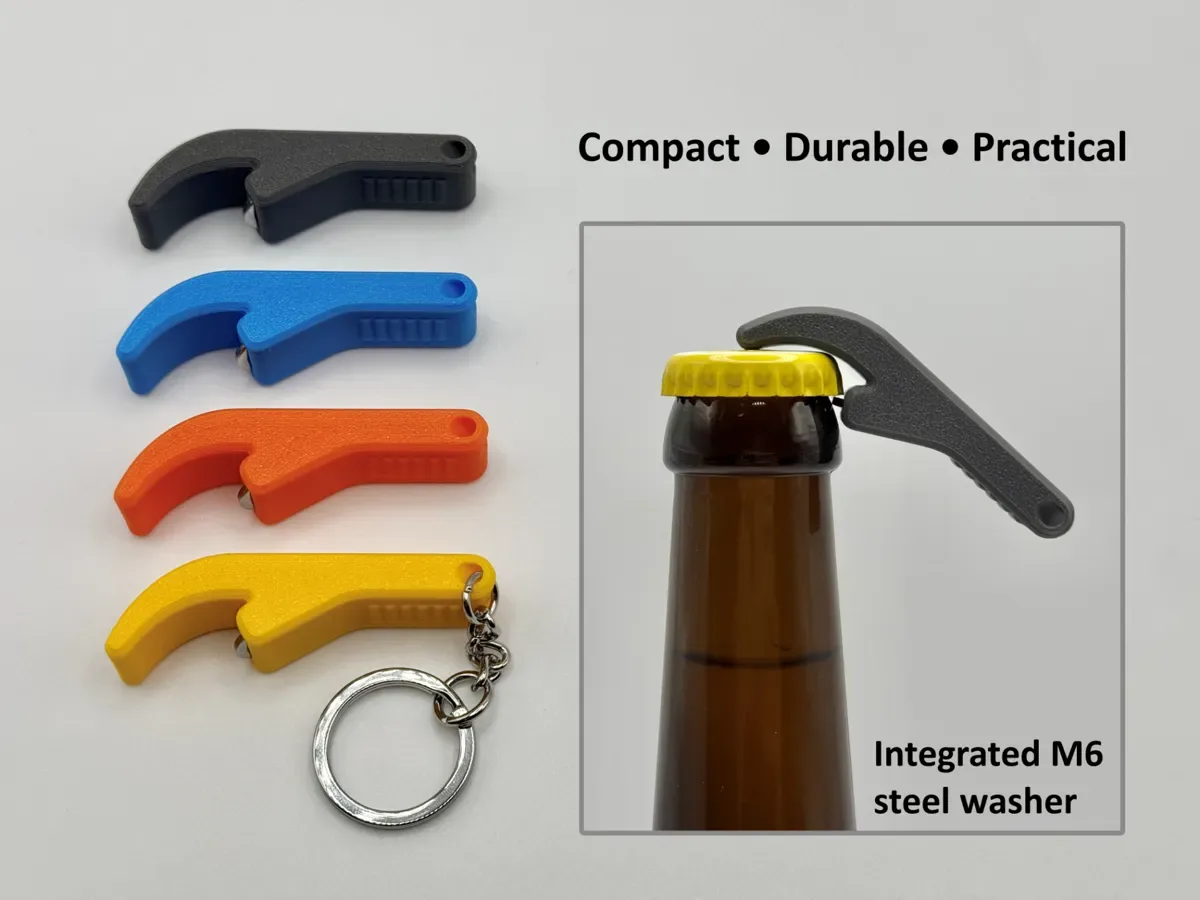

Boost Me (for free) Thanks for your support! Boost This compact bottle opener is perfect for on the go. For example, on a keychain, in a purse, or in a jacket pocket. Features: As small as a key (perfect keychain size) Sturdy and durable thanks to the inserted steel washer (M6) Easy to use. The focus was on ensuring a bottle can be opened on the first try without frustration The model is designed for washers of the following size: Outer diameter: Ø12mm Thickness: 1.60 mm You can buy them in a hardware store or directly from Bambulab (link). Since material thickness can vary due to manufacturing tolerances, the model is available for different sheet metal thicknesses. Available variants: 1,50mm (-0,10) 1.55 mm (-0,05) 1,60mm (standard) 1,65 mm (+0,05) 1,70mm (+0,10) I recommend starting with 1.60 mm. For a perfect fit you can print the small test part with all 5 slots: Ideally, the washer would slide into the groove without resistance and wobble as little as possible to prevent noise. Assembly: Part overview: Insert the washer. The sharp-edged side faces inward. The rounded side faces outward: Add the cap. It should fit without glue. If not, please add a small amount of glue. If the cap is too tight, it can be scaled down slightly. Print settings: Both parts: Arachne wall generator 6 walls 50% infill Cap only: 0.12 mm layer height
