Weekly Pill Box

Designer

mgm86

Designer relation

Followed

Kategori

Household

Licens

Standard Digital File License

$ ↺

Se platformens konkrete vilkår.

Designer commercial

Patreon

Først set

2026-07-15 10:58

Sidst set

2026-07-15 10:58

Tags

pill pill box Box supplement supplement box pill organizer supplement organizer pill organiser tabletten

Beskrivelse

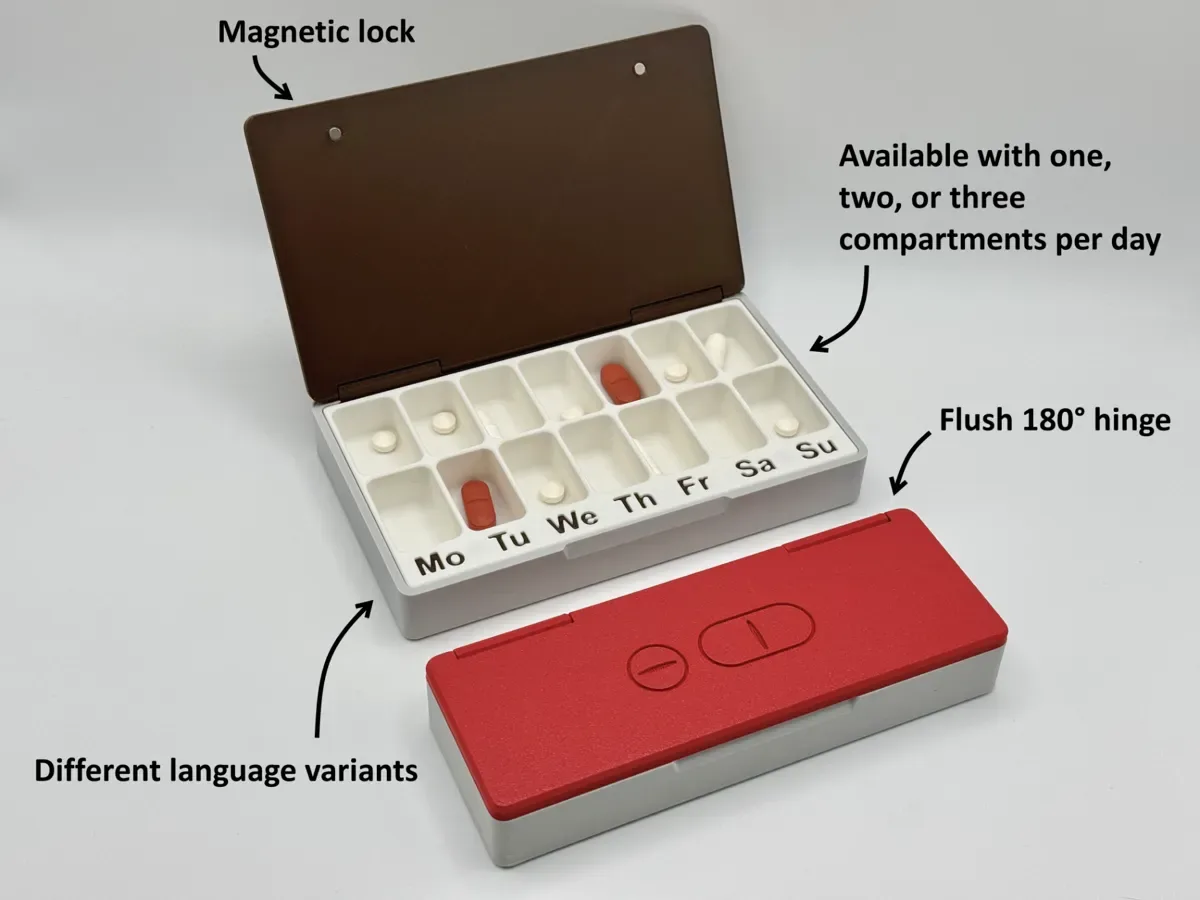

Boost Me (for free) Thanks for your support! Boost This is a pill box with one, two, or three compartments per day. The compartments are strongly rounded so that the pills can be easily removed. The insert can be removed for easy cleaning. Tip: Print it with a temperature-resistant filament such as PETG or ABS so that it can be cleaned in the dishwasher. The hinge opens 180° and is completely flush with the box. Four magnets measuring Ø4x2mm are required for a high-quality opening and closing feel. However, the lid is also available without holes for magnets. The label is available in several languages. Do you need another language? Write it in the comments. Assembly: Remove the brim from the box and the support from ther lid : Press in the 4 magnets (Ø4 x 2mm): If you have problems with the magnets in the lids: Use any flat block as a pressing aid. They are too loose? Add a drop of glue. Press the lid into the box (The pictures shows the parametric variant of the box): Print Settings: Box: Activate edge brims to avoid warping Lid: Activate supports for the little pins Insert: Wall generator = Arachne Otherweise standard settings Single color print of the inserts: If you want print the insert in single color (the text) click on the insert → click on the color button → Click on delete all: Variant without magnets: There is a further print profile with Lids without magnet hole.
