Dishwasher container for small parts V2

Designer

mgm86

Designer relation

Followed

Kategori

Household

Licens

Standard Digital File License

$ ↺

Se platformens konkrete vilkår.

Designer commercial

Patreon

Først set

2026-07-15 10:58

Sidst set

2026-07-15 10:58

Tags

dishwasher dishwasher accessories dishwasher container dishwasher box spuelmaschine dishwasher storage spuelmaschinen box

Beskrivelse

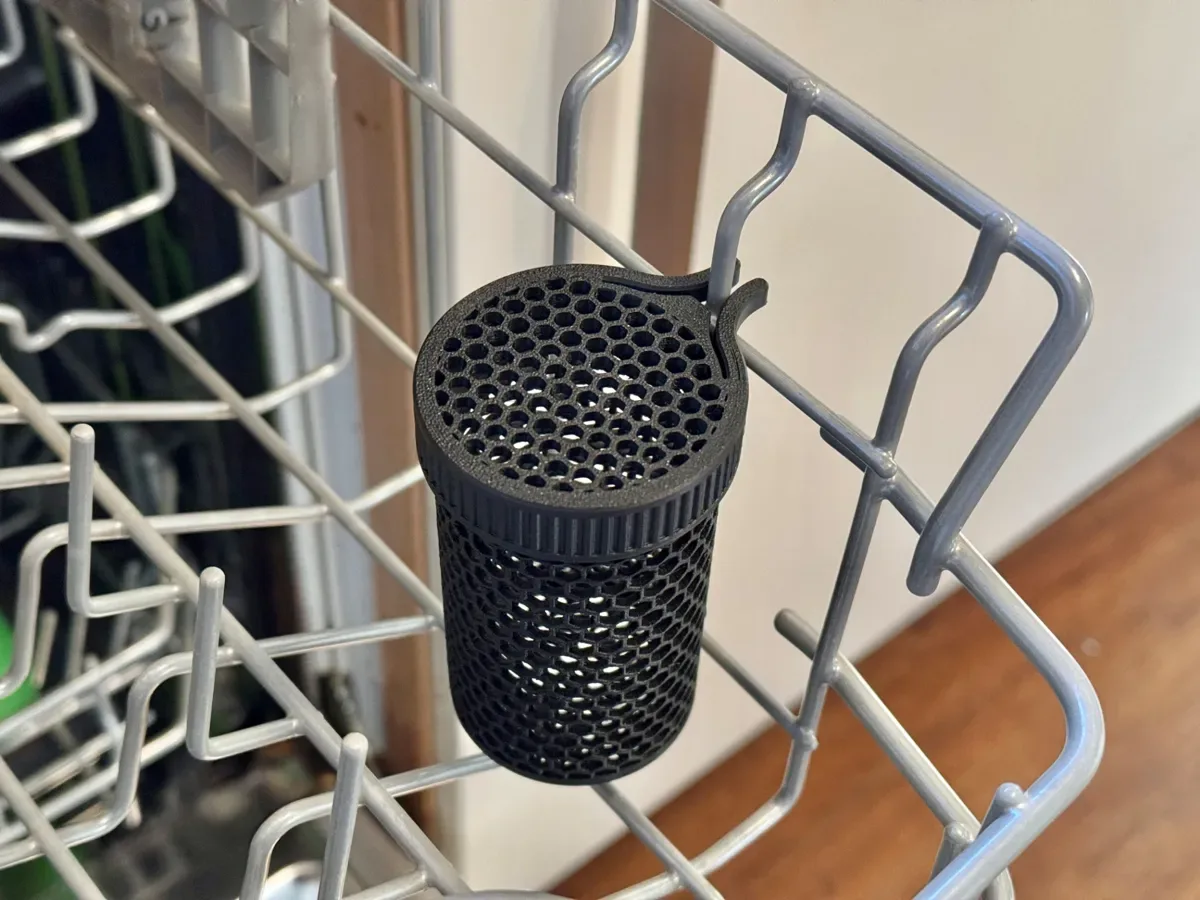

Boost Me (for free) Thanks for your support! Boost This dishwasher container is perfect for small items such as skewers. Version 2 offers slightly more storage space and a significantly improved clamping mechanism. This allows the container to be secured to one of the rods inside the dishwasher. My Bosch dishwasher has rods with a diameter of 3.8 mm. Please leave a comment if the rods in your dishwasher differ significantly from this. Internal dimensions: Diameter at the opening: Ø40mm Diameter at the bottom: Ø43mm Height: 80mm Print settings (print profile V2): 0,2mm layer height for the hexagon area 0,16mm layer height for the threads (height range modifier) Filament: Please print with heat-resistant filament such as PETG, ASA or ABS. I printed the model myself using Bambulab's PETG HF. PETG is heat-resistant up to approx 70°C. Be careful with the dishwasher program you choose. Eco mode works with PETG. Other modes may reach or exceed 70°C. ASA/ABS: Work with every dishwasher mode.
