Sliding case V2 (lockable) for small parts

Designer

mgm86

Designer relation

Followed

Kategori

Household

Licens

Standard Digital File License

$ ↺

Se platformens konkrete vilkår.

Designer commercial

Patreon

Først set

2026-07-15 10:58

Sidst set

2026-07-15 10:58

Tags

sliding case sliding small parts lockable slider box slider sealable Sliding Box

Beskrivelse

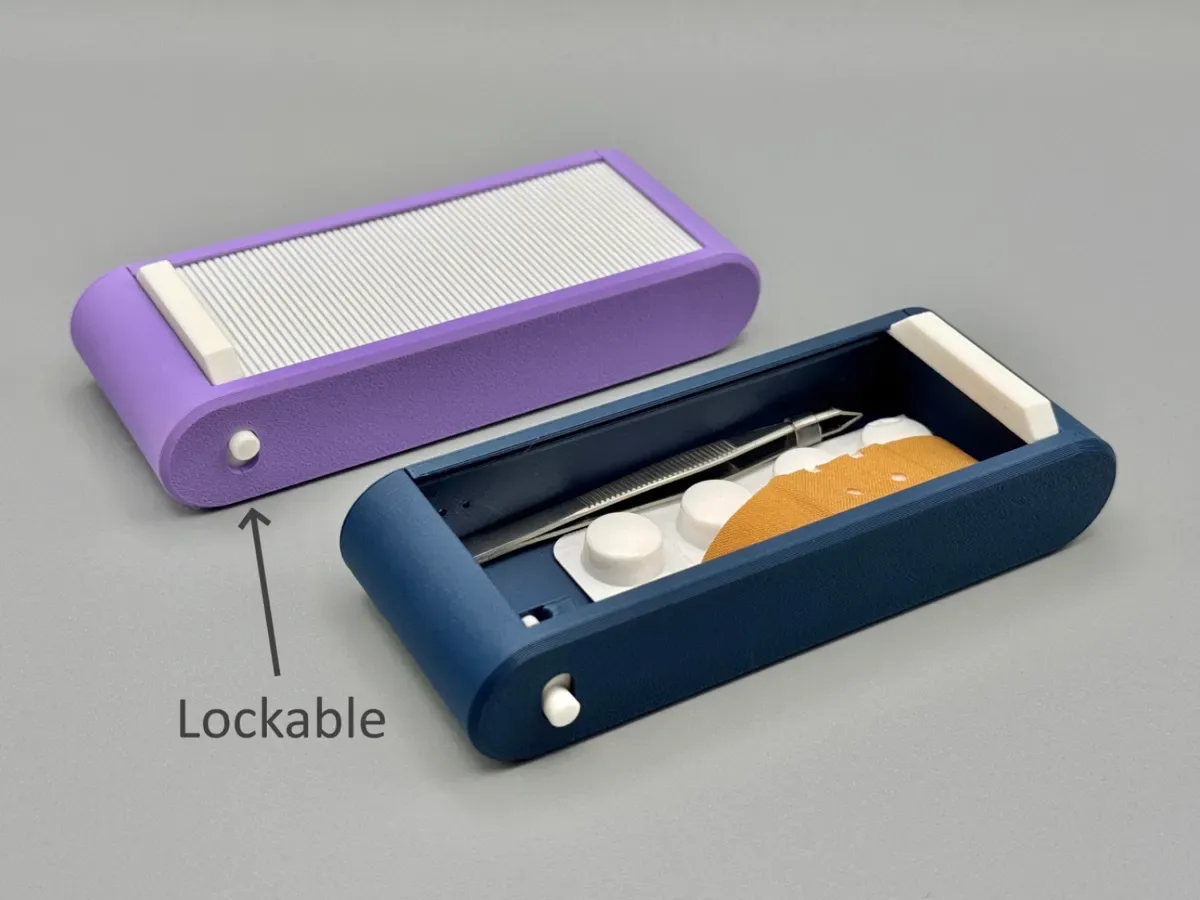

Boost Me (for free) Thanks for your support! Boost This is the updated version of my small sliding case. Now with a locking function to prevent it from opening accidentally in the bag. The switch engages in both positions. You can use it for thinks like: Pills / first aid box for hiking tours etc. Cotton swabs Hair clips Earplugs Tampons Etc Dimensions: Outer: 124 x 48 x 24 Inner: 100 x 45 x 18mm (10x10mm in one corner is blocked for the switch unit. See pictures) Further variants: Variant for non electric toothbrushes Variant for electric toothbrushes Assemly: Part Overview: Push the lid on the switch guide (add a drop of glue if necessary. It depends on the choosen filament/flow settings) Add the swich Press the switch unit in the base part (add a drop of glue if necessary. It depends on the choosen filament/flow settings) Add the slider as shown in the photo. Add a drop of oil at the red arrows for best functionality. Add the lid (add a drop of glue if necessary. It depends on the choosen filament/flow settings)
