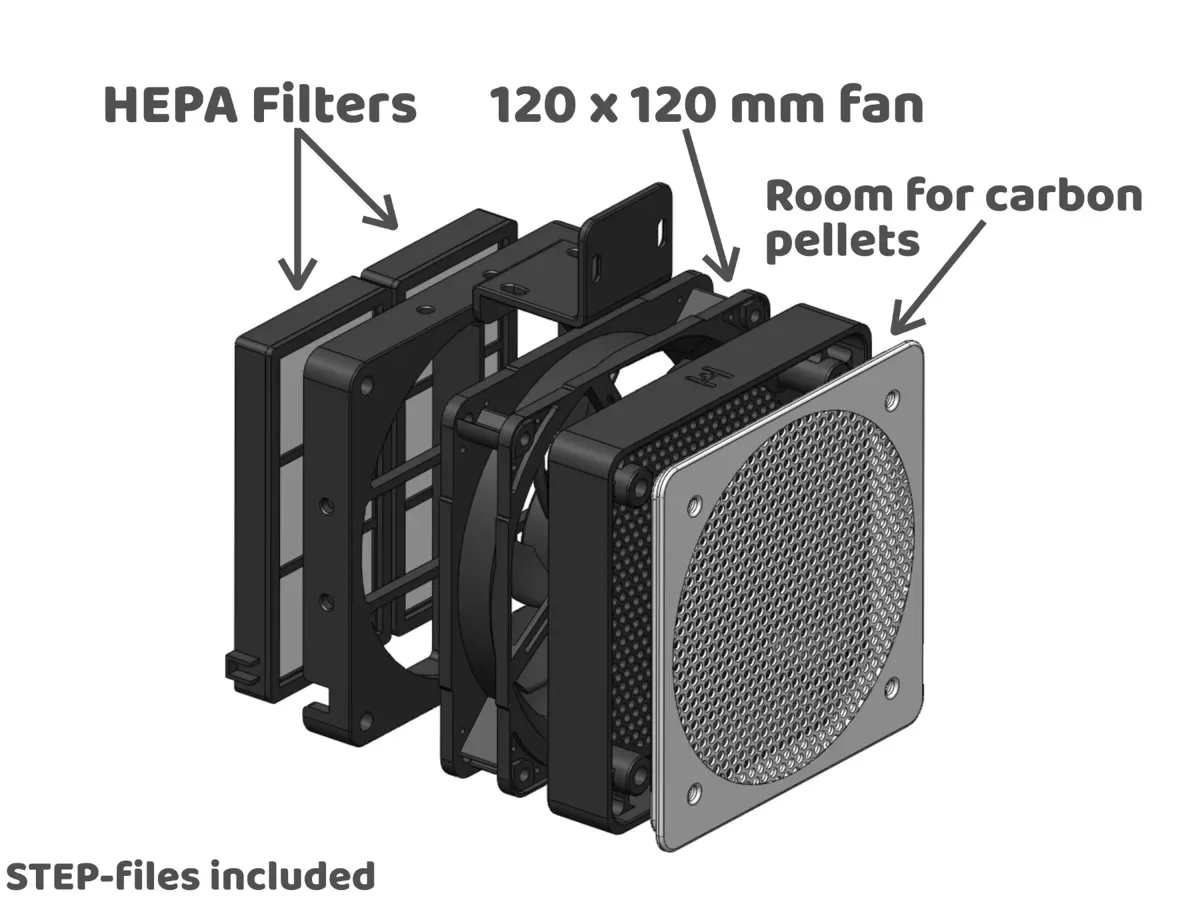

Compact Airfilter for 120x120mm Fan

Designer

CE_YT

Designer relation

Followed

Kategori

3D Printer

Licens

Standard Digital File License

$ ↺

Se platformens konkrete vilkår.

Designer commercial

MakerWorld Commercial License

Først set

2026-07-15 10:58

Sidst set

2026-07-15 10:58

Tags

air filter hepa carbon pellets smallest most compact mesh Noctua fan 120x120mm upgrade small thin extension

Beskrivelse

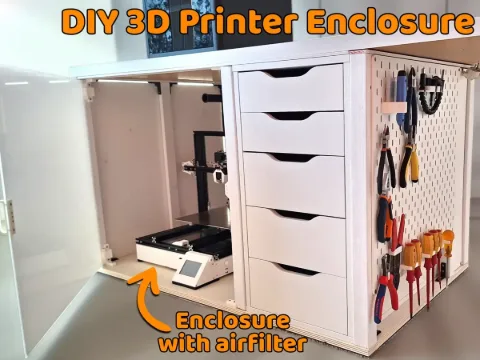

I made my own 3d printer enclosure with at the back an airfilter, I made a video about the project: Necessary materials: 4x DIN7380 M4 x 8 4x DIN912 M4 x 30 8x M4s Threaded inserts 2 HEPA Filters: https://www.amazon.de/gp/product/B07CM7ZT4H/ref=ppx_yo_dt_b_asin_image_o08_s00?ie=UTF8&th=1 Carbon pellets: https://www.amazon.de/gp/product/B095PZLXPQ/ref=ppx_yo_dt_b_asin_image_o08_s00?ie=UTF8&th=1 Noctua NF-F12 (I used a fan from a radiator but with the same dimensions Download the full enclosure: https://makerworld.com/en/models/214682#profileId-233996 Download the tool holders for the pegboard: https://makerworld.com/en/models/221465#profileId-239825 Airfilter upgrades Update 13/06/2025: I added Pt3.2_Fan_Holder and Pt5_Fan_Holder Now you can add another module for pellets (Pt2_Fan_Holder) Using Pt3.2_Fan_Holder you can use long M4 bolts/threaded rods to add another fan/airfilter. Necessary hardware parts for this upgrade: 6x DIN912 M3 x 5 4x M4s Threaded inserts 4x DIN7991 M4 x 8 4x Long M4 bolts or threaded rods to connect an additional filter or fan
