Modular cube shelf with box drawer

Designer

anagf

Designer relation

Ingen

Kategori

Household > Office

Licens

Creative Commons Attribution NonCommercial Creative Commons — Attribution — Noncommercial

$ ↺

Attribution påkrævet; kommerciel brug er ikke tilladt.

Designer commercial

None

Først set

2026-07-15 08:10

Sidst set

2026-07-15 08:10

Tags

table shelf spool box filament furniture modular cube storage customizable home petg drawer cubicle homedecor library books nightstand bedside durable cubic auxiliar

Beskrivelse

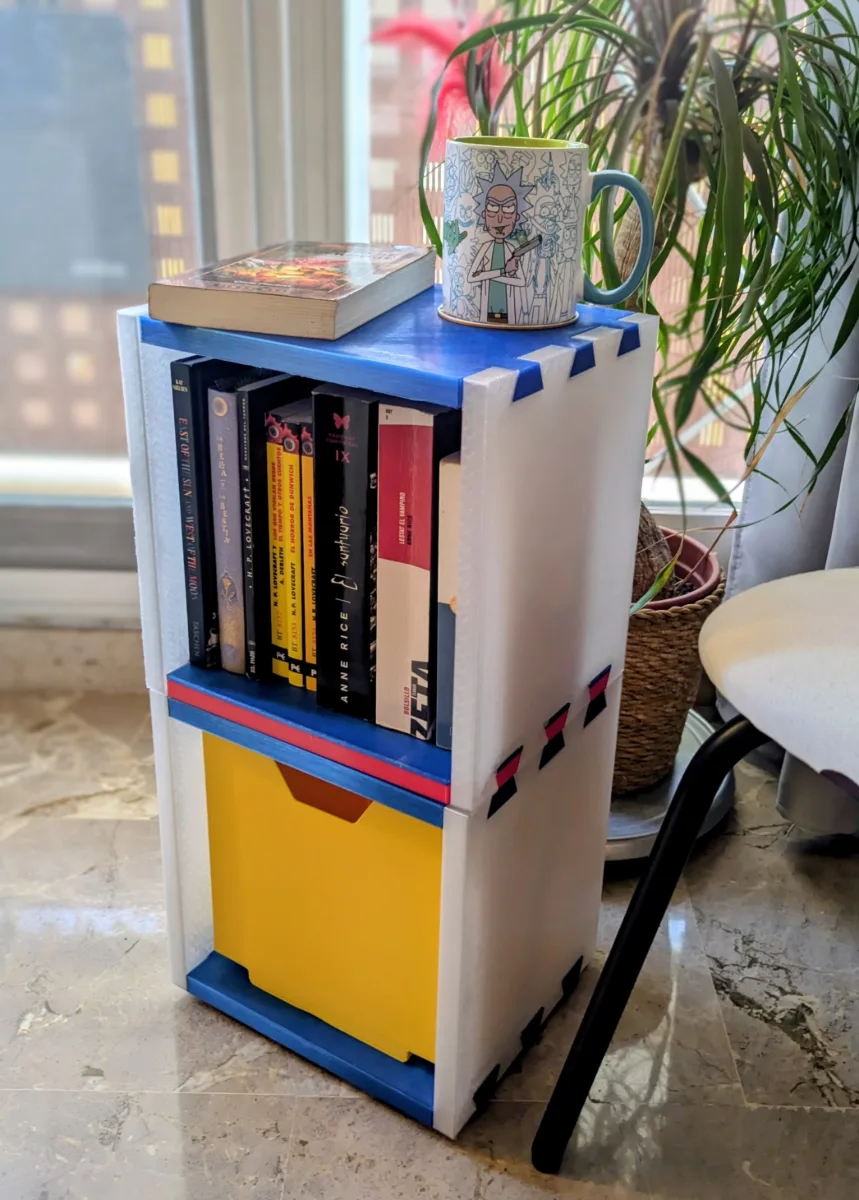

This is a modular cubic shelf with box drawers. It is designed to be printed by parts (each board separately) and then be assembled. Designing the model this way with dovetails had a few pros: - More structural strength and durability - Resistant to humidity and water, compared to regular melamine cubic shelves - Dividing the printing process, therefore avoiding the use of supports, printing problems and reducing printing time rather if it was printed as a whole model - Customization and aesthetics. Tip: mix different filament colours! - Depending on the cost of the materials you are using, it might be cheaper than regular modular shelves on the market (check average filament costs for calculating this) I suggest printing the shelf structure and joining pins with materials like PETG or even more durable. However, you can print the drawer box with any rigid material you wish, like PLA. By the way: each cube models can fit three 1kg filament spool boxes, in case you find it handy. Assembly instructions - (Recommended) The project includes a dovetail tester. I strongly recommend printing it with the project's tolerances to check if you need adjustments based on your printer. - For each cube module, you will need to print 2 boards of each type (4 in total) and assemble them together. It is advised to apply some super glue inside the dovetails when assembling. - If you want to assemble two modules, you can glue them, but if you want to be able to rearrange them in the future, the project also includes a joining pin model. You'll need at two for connecting two modules, and attach them to two matching inner corners (see the print's photo). You can also print 4 to secure 4 corners, the drawer box is prepared for that just in case. - (Optional): attach adhesive legs or wheels on the bottom of the cube composition. The print in the pictures has four adhesive wheels. Scaling The uploaded model measures 24,5x24,5x20 each module, but you can scale it to match your needs. Just take into account the dovetails need to be scales proportionally. That's why the .3mf project includes the boards models as assemblies with separate pieces for the dovetails. That way, you can scale the central board to whatever measures you need, and then all the dovetails proportionally. Please take this into account when customizing. Printing configuration The .3mf project already includes all the needed configuration, but if you'd rather manage the shelves, this is the recommended printing configuration: ❗ 1. Global Settings - Layer height: 0.28mm - X-Y hole compensation / X-Y contour compensation: 0.4mm 🟥 2. Cube Modules (Main Structure) The cubes are printed as separate panels (boards) to ensure maximum speed, avoid excessive supports, and optimize the mechanical finish. Each cube measures 24.5cm x 24.5cm x 20cm. - Recommended Material: PETG (provides flexibility and torsional resistance under load). - Printing Strategy: Print the panels separately / flat on the bed to save print time, eliminate the need for supports, and prevent printing issues by splitting the process. - Slicer Parameters: - Wall loops (Perimeters): 3 or 4 (depending on the weight they will support). - Sparse infill density (Infill): 10% using Gyroid or CrossHatch pattern (they handle inertia better and prevent nozzle collisions). - Bed adhesion: Requires a generous Brim to prevent warping (corner lifting), which is typical for PETG on long parts. - Outer wall speed: 60 - 100 mm/s. - Inner wall & Infill speed: 100 - 150 mm/s. - Sparse infill speed: 80 mm/s. - Estimated Consumption: ~420g per panel / 1680g per module. 🔩 3. Shelf Support / Joining Pin - Recommended Material: PETG. - Bed Orientation: Crucial! Print the part lying horizontally flat. If printed vertically (standing up), the structural load of the furniture will easily break the part by separating the layers. By printing it flat, the filament lines run along the length of the part, making it virtually indestructible. - Slicer Parameters: - Wall loops (Perimeters): Increase to 6 or 8 walls. - Sparse infill density (Infill): 40% - 50% ( Gyroid pattern). Combining this many walls with this infill density makes the narrow areas practically solid. - Top/Bottom shell layers: 5 layers to stiffen the flat surfaces. - Estimated Consumption: ~10g per shelf support. 📥 4. Drawer / Custom Organizer Box - Recommended Material: Any rigid material, including PLA! - Slicer Parameters (Maximum savings without losing strength): - Wall loops (Perimeters): 3 walls. With 2.4 mm walls in the design, the printer will make the wall 100% solid plastic, eliminating vertical infill. - Bottom Infill: 12% - 15% using Grid or Cubic pattern. Ideal for withstanding compression from the weight of tools on horizontal surfaces. - Bottom layers: 3 bottom layers and 3 top layers. - Support Management: Requires Supports due to the U-shaped grooves at the bottom. - Estimated Consumption: ~390g
