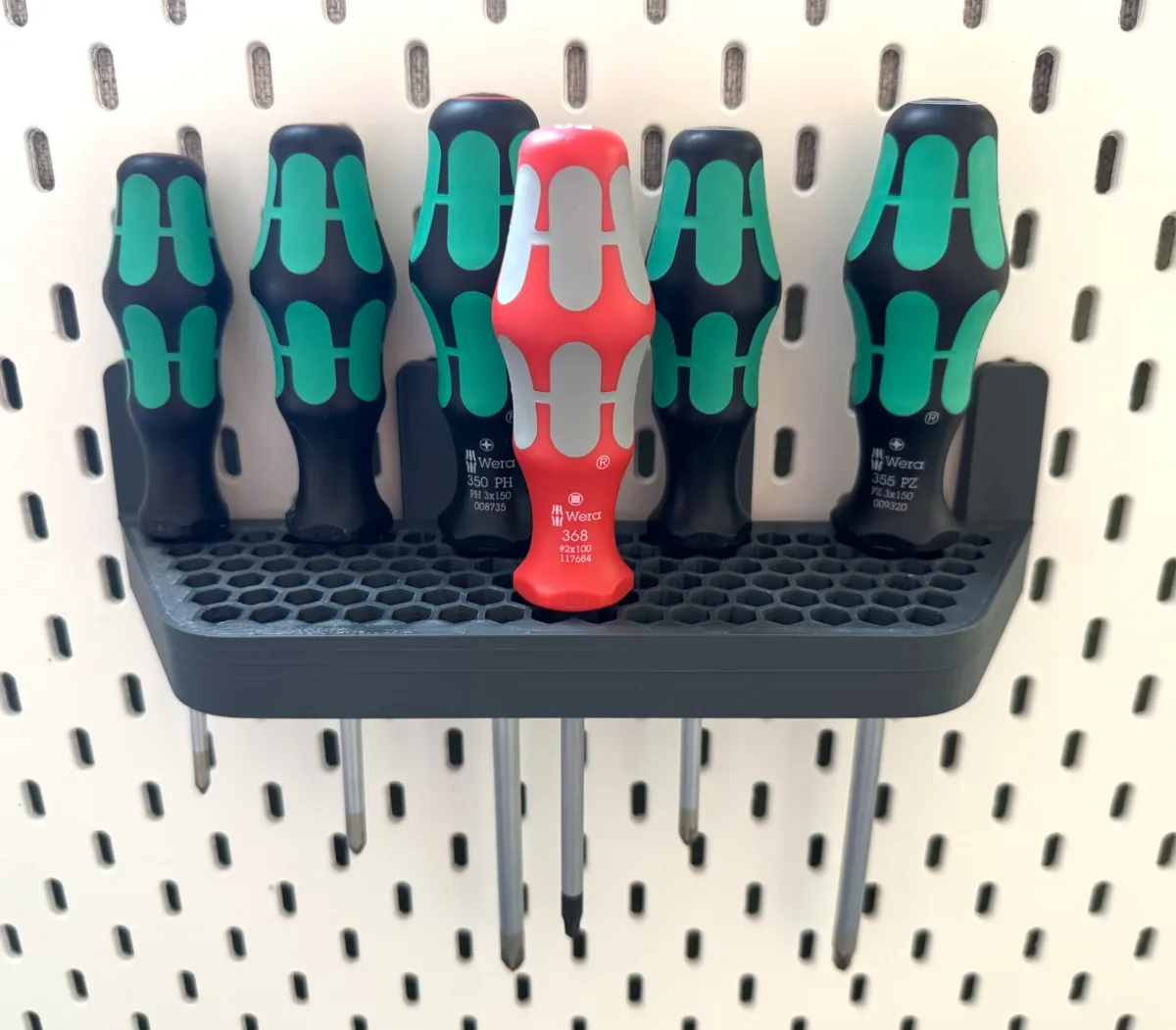

Ikea Skådis big screwdriver holder, honeycomb pattern / Velký držák na šroubováky pro Skadis

Designer

wubbr

Designer relation

Ingen

Kategori

Household > Office

Licens

Creative Commons Attribution ShareAlike Creative Commons — Attribution — Share Alike

$ ↺ SA

Attribution påkrævet; afledte værker skal deles under kompatibel ShareAlike-licens.

Designer commercial

None

Først set

2026-07-15 08:10

Sidst set

2026-07-19 08:10

Tags

hexagon tool ikea holder mount hex screwdriver skadis

Beskrivelse

Remix I really liked @Jirka_4226633 's model Big screwdriver holder, honeycomb pattern (Děkuju) but I wanted to put it on my IKEA SKÅDIS wall. If you like this model please also like the original as Jirka did most of the work. This attaches to Ikea Skadis easily and securely. If you have any questions or suggestions let me know! Original four hook version. Four may be unnecessary for some people, especially with PETG so I made a two hook version as well. I spent 99% of the time testing different hook designs as I was not happy with the previous ones I found on Printables. I will probably put this out as a seperate model The hook locks into place and prevents movement in all axis except upwards with some resistance. Support are mandatory for the lower hook, but also useful for the top to ensure a smooth fit I recommend an outer brim for PETG/ABS, I had some warping when I printed mine in PETG the first time Print Settings I had issues the first time I printed this model with PETG lifting off the plate, the supports coming free, which is why I switched to 0.4mm nozzle for PETG and added a brim. PLA is more flexible what print settings you use. - Filament: I think this could be printed in most filaments , not just PETG/ASA. - Nozzle: Recommend 0.4mm for predictable results with the hook (in v1.0 when I printed with a 0.6mm nozzle the hooks were too wide, i have updated the model to be 0.2mm thinner so in theory it should be fine now in 0.6mm but untested) - Profile: Structural or Balanced - Perimeters: 3 - Infill: 15% - Supports: Required I may make a longer version as I have a lot of Wera screw drivers.
