AVEX RC - Goblin 700 mm - 3D Printed RC Airplane

Designer

Spike141

Designer relation

Ingen

Kategori

Hobby & Makers > RC & Robotics

Licens

Creative Commons Attribution NonCommercial Creative Commons — Attribution — Noncommercial

$ ↺

Attribution påkrævet; kommerciel brug er ikke tilladt.

Designer commercial

None

Først set

2026-09-14 19:50

Sidst set

2026-09-15 00:10

Tags

rc drone plane rcplane petg fpv flying airplane wing 3dprinted aviation goblin fixed aerovelox

Beskrivelse

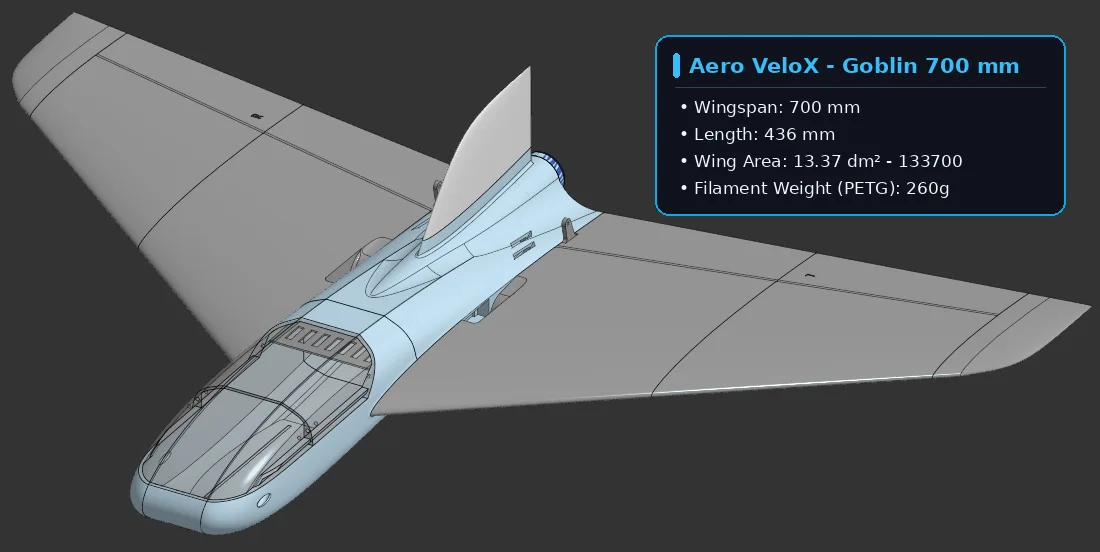

Aero VeloX Extreme RC - Goblin 700 🛠 Technical Specifications Wingspan: 700 mm Length: 436 mm Wing Area: 13.37 dm² - 133700 📦 Hardware & Reinforcement Required Main Wing Spar: 6mm x 500mm Rod (1x) Secondary Wing Spar: 6mm x 250mm 1x) Elevon Control Rods: 3mm x 300mm (1x) ⚙Printing Settings Layer Height: 0.28 mm Wall Loops: 1 Top Shell Layers: 3 Bottom Shell Layers: 2 Sparse Infill Density: 3–4% Sparse Infill Pattern: Cubic 📊 Weight Breakdown & Specs • Filament Weight (PETG): 240g – 300g Max • Electronics Payload: ~485g – 500g - 6S Battery: ~350g - 2806.5 Brushless Motor: ~50g - ESC: ~70g - Flight Controller: ~20 g - 2x Mini Servos: ~20g - GPS Module: ~20g (Calculated based on maximum expected weights for electronics + maximum printed airframe weight: = 830g) • Target AUW (All-Up Weight): ~800g – 900g (MAX) • Estimated Stall Speed: 34 - 38 km/h
