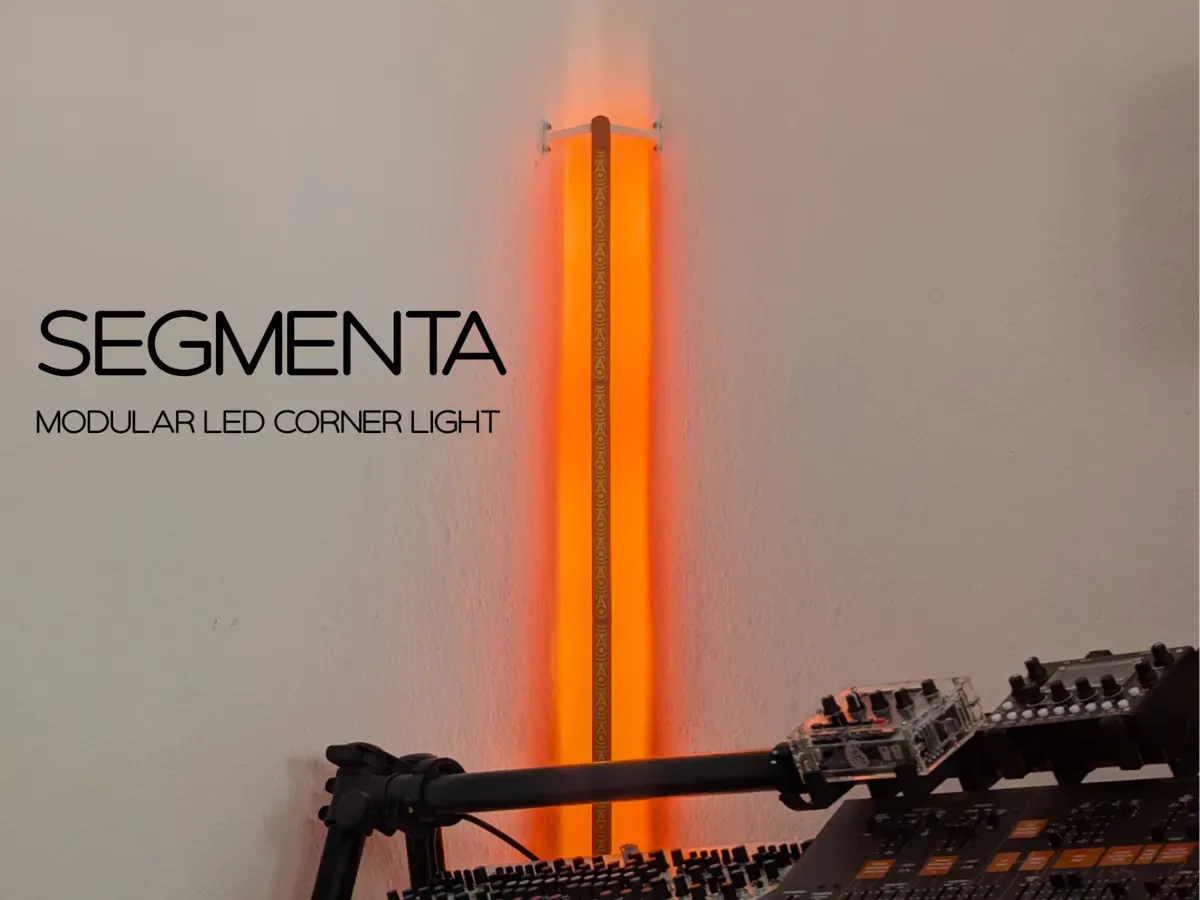

Segmenta - Modular LED Corner Light

Designer

ModularMapping

Designer relation

Followed

Kategori

Household

Licens

Standard Digital File License

$ ↺

Se platformens konkrete vilkår.

Designer commercial

Patreon

Først set

2026-07-15 10:58

Sidst set

2026-07-15 10:58

Tags

lamp light led corner ws2811

Beskrivelse

Transform your space with this sleek, modular LED corner lamp. Designed with both simplicity and customizability in mind, this light fixture seamlessly integrates into any room corner to cast a warm, ambient glow. Whether you are looking for a clean, minimalist aesthetic or a more intricate light installation, this design adapts to your vision. It features two distinct variations: a standard "raw" version for a pure, modern look, and a detailed version featuring beautiful decorative inlays on the backside. To ensure anyone can build this regardless of their equipment, the structural files are available in three different sizes to perfectly match your specific 3D printer's build volume. Print Guide This model is designed to be highly accessible and straightforward to print. Print with Support No other setting changes needed Bill of Materials (Printed Parts) Depending on how tall you want your final lamp to be, print the following: Your amount of LED Profiles Matching amount of Diffusers (1 per LED Profile) 1x End Part Bottom 1x End Part Top 2x Holder Left 2x Holder Right Step-by-Step Build & Installation Guide 1. Assemble the Frame Start by clipping the End Part Bottom onto your first LED Profile. If you are building a taller lamp, connect your additional LED Profiles together—they feature easy-to-use snap-fit connectors. Once your tower is built to your desired height, snap the Top Endpart securely into place. 2. Prepare the Lighting Measure and cut your LED strip to match the length of your assembled profiles. Connect your power cable to the LED strip, and route the wire through the designated hole in either the top or bottom end part (depending on how you want to manage your room's cable setup). 3. Install the LEDs Carefully stick the LED strip down into the center channel of your connected profiles, then attach your printed diffusers over the front. 4. Mount to the Wall Temporarily attach the Left and Right Holders to the top and bottom Endparts. Hold the entire lamp assembly perfectly vertically in your chosen room corner and mark the screw hole positions on the wall with a pencil. 5. Final Setup Set the lamp aside, drill your marked holes, and screw the holder parts directly into the wall. Finally, gently slot your assembled LED profile structure into the mounted holders. A Video of this process will be uploaded very soon! If you have any problems along the way feel free to reach out! Boost Me (for free) If you liked this model please consider supporting me with a free boost! Boost Membership And if you want to print my models commercialy you can do so by getting my commercial license! Join Also have a look at my lights, some are 100% 3D printable! Florahedron V2 - A Fully 3D printable Lamp Prisma Petal - Bambu Lab LED Kit Water Lily Lamp Shade PrismaPetal V2 - A Fully 3D Printed Lamp Orbiflora - A 100% 3D printable Lamp! Grid Light Icosaeder Christmas Light
