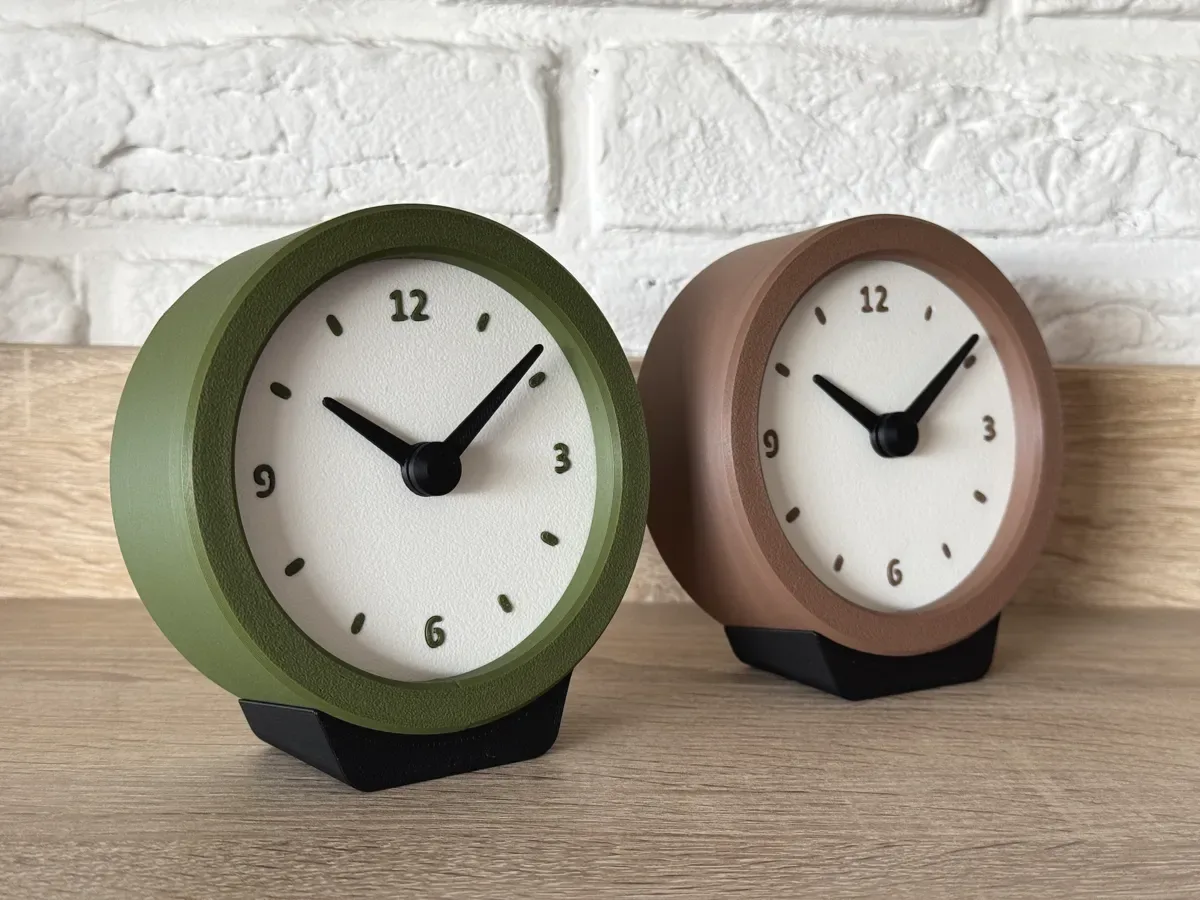

Desk clock / shelf clock

Designer

mgm86

Designer relation

Followed

Kategori

Household

Licens

Standard Digital File License

$ ↺

Se platformens konkrete vilkår.

Designer commercial

Patreon

Først set

2026-07-15 10:58

Sidst set

2026-07-15 10:58

Tags

clock desk clock shelf clock

Beskrivelse

Boost Me (for free) Thanks for your support! Boost Features: Modern design with good readability Multicolor without AMS Hidden brass nut Hidden back cover for easy access to the clock mechanism (twist lock) Easy print and easy assemble Dimensions: Width: 105mm Height: 112mm Depth: 40mm Alternativ wall clock variant with 22cm diameter: Link Assembly: Step 1: Take the back of the dial and the clock mechanism with the brass nut. You don’t need other parts from the clock component kit: Step 2: Press the brass nut into the dial backside: Step 3: Check the dial backside for printing errors. Remove any problem areas so that the dial can be slid on easily in the next step. Press die dial on the dial backside: Step 4: Press the dial into the main body. Important: The 6 on the dial must be located at the hexagonal holes from the main body (mounting position of the stand). The picture shows the correct alignment. Step 5: Take the clock mechanism and put the spacer part on it: Step 6: Now you can screw the clock mechanism on the brass nut. Be carefull. Don’t use too much force! The orientation of the clockwork is not important. Step 7: Take the back cover and lock it by turning it slightly to the right. Step 8: Add the hour hand first. Leave a little bit space to the dial surface. After that add the minute hand. You can scale the hour/minute hand a little bit if the fitting to tight or to loose. It depends on your choosen filament. Step 9: Take the stand and press it onto the main body. Use a drop of glue if necessary.
