Monitor riser - adaptable to your monitor stand

Designer

mgm86

Designer relation

Followed

Kategori

Household

Licens

Standard Digital File License

$ ↺

Se platformens konkrete vilkår.

Designer commercial

Patreon

Først set

2026-07-15 10:58

Sidst set

2026-07-15 10:58

Tags

monitor riser monitor lifter monitor Monitor elevation monitor stand

Beskrivelse

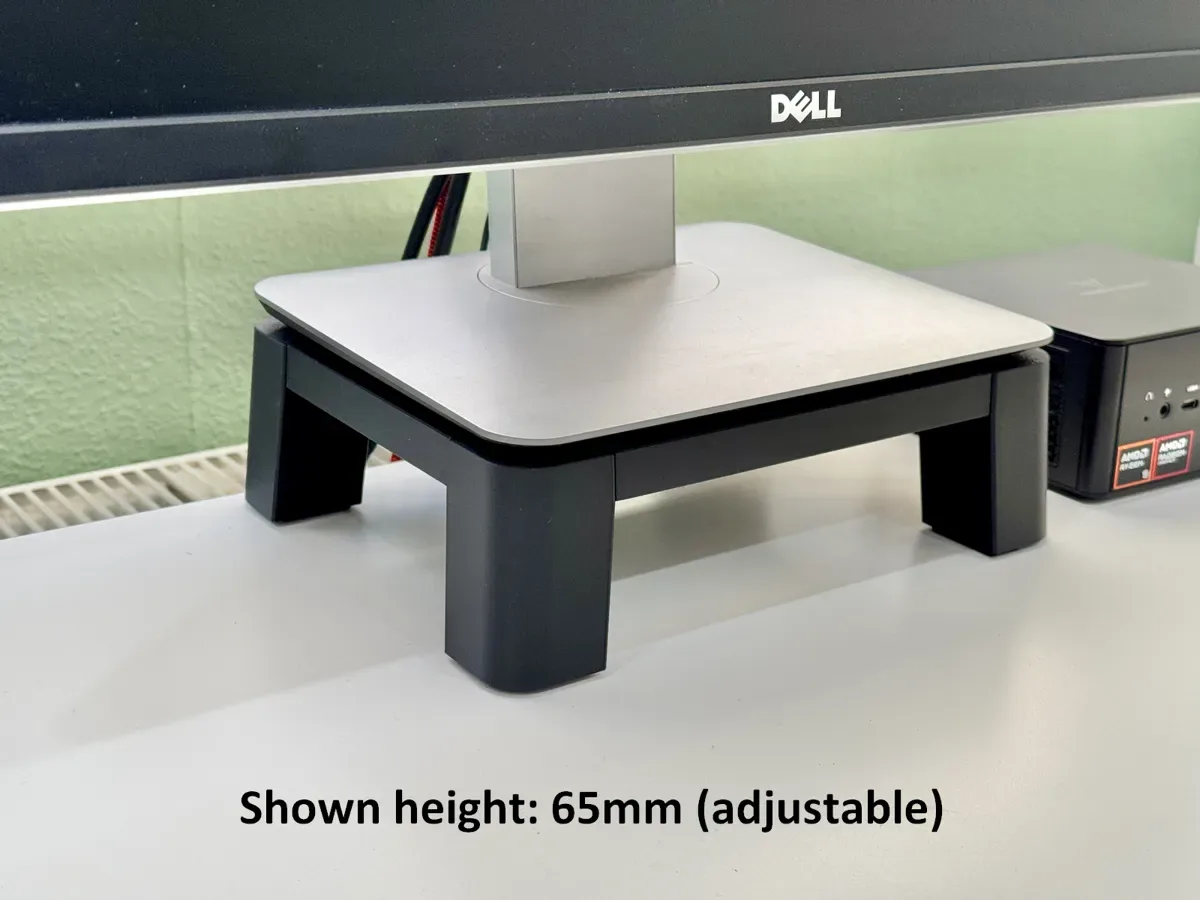

Boost Me (for free) Thanks for your support! Boost A monitor riser which is adaptable to your (rectangle) monitor stand. Can be used for monitors/All in one PC’s without height adjustment like iMacs. Or/and to generate additional space on your desk under your monitor. To store thinks like: Mini PC, speaker, external hard disk, USB hub. pencils etc. If you want use it for monitors without rectangle stand, you could also mount a wooden board on it with double sided adhesive band. Features: clean design which can be adapted to the (rectangle) monitor stand Choose between different radii’s (R5, R10, R15, R20) Choose width, depth and height in Bambu Studio For more space on your desk, and/or to lift your Monitor for better ergonomic Important: The monitor has to be stand directly on the 4 foots of the lifter. Not only on the connector bars. The foots has a dimension of 35x35mm. You could add silicon pads on the foots if the pads from the stand are not suitably positioned. Print Instruction To choose the correct print profile you have to measure your monitor stand radius like shown in the picture: Available Radii’s: R5, R10, R15 and R20. Do you need a different radius? Write it in the comments and I would upload the needed model. To choose the correct width and depth: Measure your monitor stand and substrate 70mm from both dimensions. This is the needed length for the connector bars. Example: Your Monitor stand has a width of 220mm, then you need 2 connection bars with a length of 150mm (220mm–70mm = 150mm). And a depth of 180mm, then you need 2 bars with 110mm (180–70mm = 110mm). Standard dimensions of the bars are 130mm for a final length of 200mm. Substrate 70mm because each foot has a dimension of 35mm. Please carry out the following steps to set the length in bambu studio: Mark one connection bar und click on “scale”: Uncheck the box and write the required length in the X field. The Y and Z values must not change: Choose the height: The standard height is 90mm. The connection bar is 15mm thick, so you have 75mm space under the monitor lifter. If you want it lower (if you only store flat thinks like external hard disks etc.) you can cut the model in Bambu studio: Click on one foot and then choose the cut command: Write the desired height into the marked field and click ok: Delete the cutted part with the delete key on the keyboard: Assembly: Just push the connector bars on the foots. Make sure that you choose the correct alignment. You can use a drop of glue to prevent it from coming loose. Please mount it this way: The yellow marked edges must be parallel. If they are not parallel you mast turn the connection bar. General print settings if you not use bambu Studio See the part alignment in the 3d preview. 3 walls 0,2mm layer height 15% gyroid infill
