Couch holder for cups, glasses and bottles

Designer

mgm86

Designer relation

Followed

Kategori

Household

Licens

Standard Digital File License

$ ↺

Se platformens konkrete vilkår.

Designer commercial

Patreon

Først set

2026-07-15 10:58

Sidst set

2026-07-15 10:58

Tags

coffee holder couch couch holder drink drink couch drink holder Beverage holder adjustable adaptable adjustable drink sofa halter coach bier halter beer holder

Beskrivelse

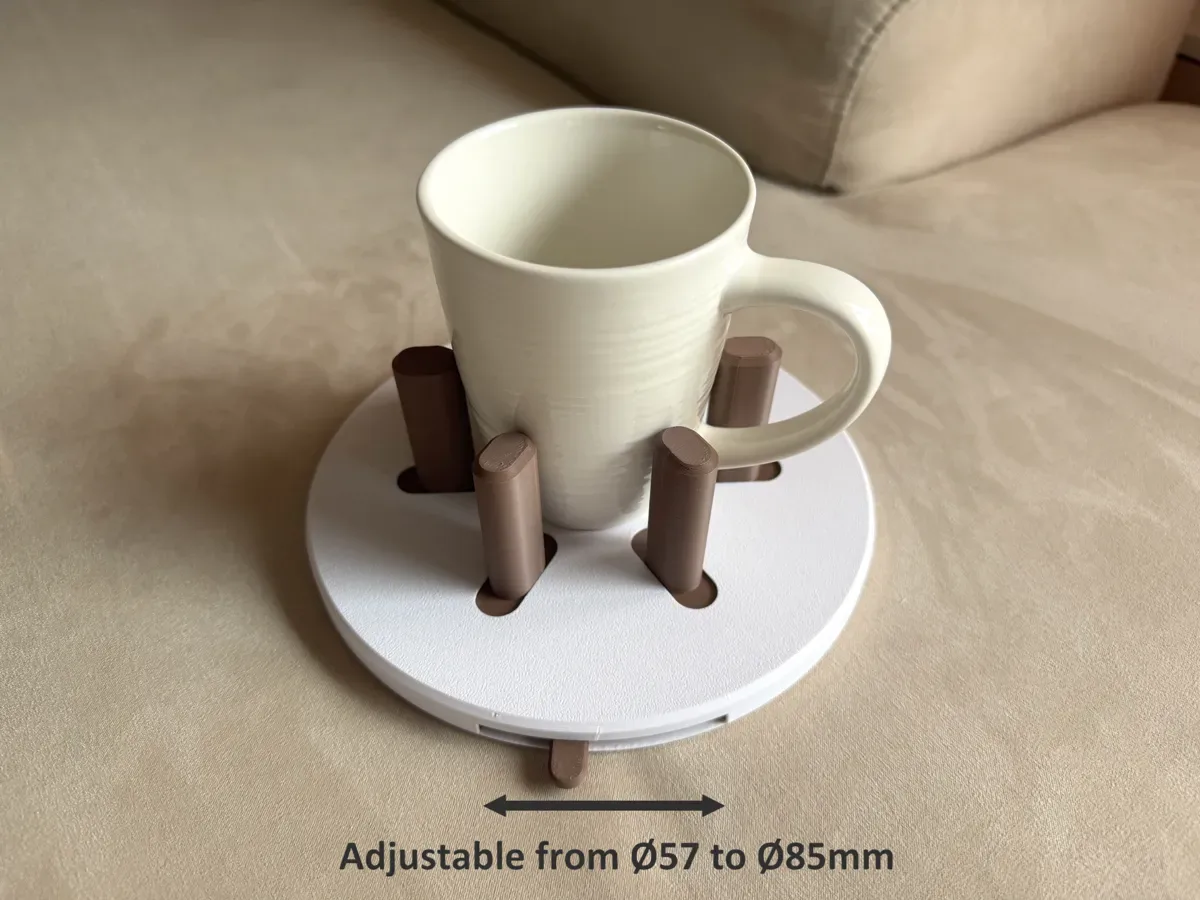

Boost Me (for free) Thanks for your support! Boost A coach holder for cups, glasses and bottles. It holds drinks securely on the couch and prevents them from falling over. Once adjusted, the drink can be easily removed and put back again. The only time you need to re-adjust the holder is when you change the cups, glasses or bottles. Features: Stepless adjustable from Ø57 to Ø85mm to hold a cup, glass or a bottle The position can be locked with a printed nut Outer diameter: 178mm to fit on a A1 Mini. Without non printed components Assembly: Step 1: Take the bottom part and the turning plate: Step 2: Press the turning plate onto the bottom plate. Make sure that it can rotate before you go on: Step 3: Take the slider plate and put it on the table as shown on the picture. Make sure that the slider can move. Step 4: Add the 6 pins: Step 5: The slider must stay in the outer position as shown in step 4. Now take the bottom plate with the turning plate and press it on the slider plate. The lever must be turned all the way to the right. The thread from the bottom plate must be positioned in the center of the hole from the slider plate. If you can’t press it together, please check the positions of the 6 slider (outermost position) and the position of the lever (right). Step 7: Turn it and press the different plates completely together. Press also in the middle: Step 8: Press the coverplate on it: Step 9: Add the nut: Tip: I have print the cover plate with PETG. For a good heat resistance for hot coffee cups.
