Battery box (battery lift feature)

Designer

mgm86

Designer relation

Followed

Kategori

Household

Licens

Standard Digital File License

$ ↺

Se platformens konkrete vilkår.

Designer commercial

Patreon

Først set

2026-07-15 10:58

Sidst set

2026-07-15 10:58

Tags

battery box Battery battery case battery organizer battery organiser batterie batterie box

Beskrivelse

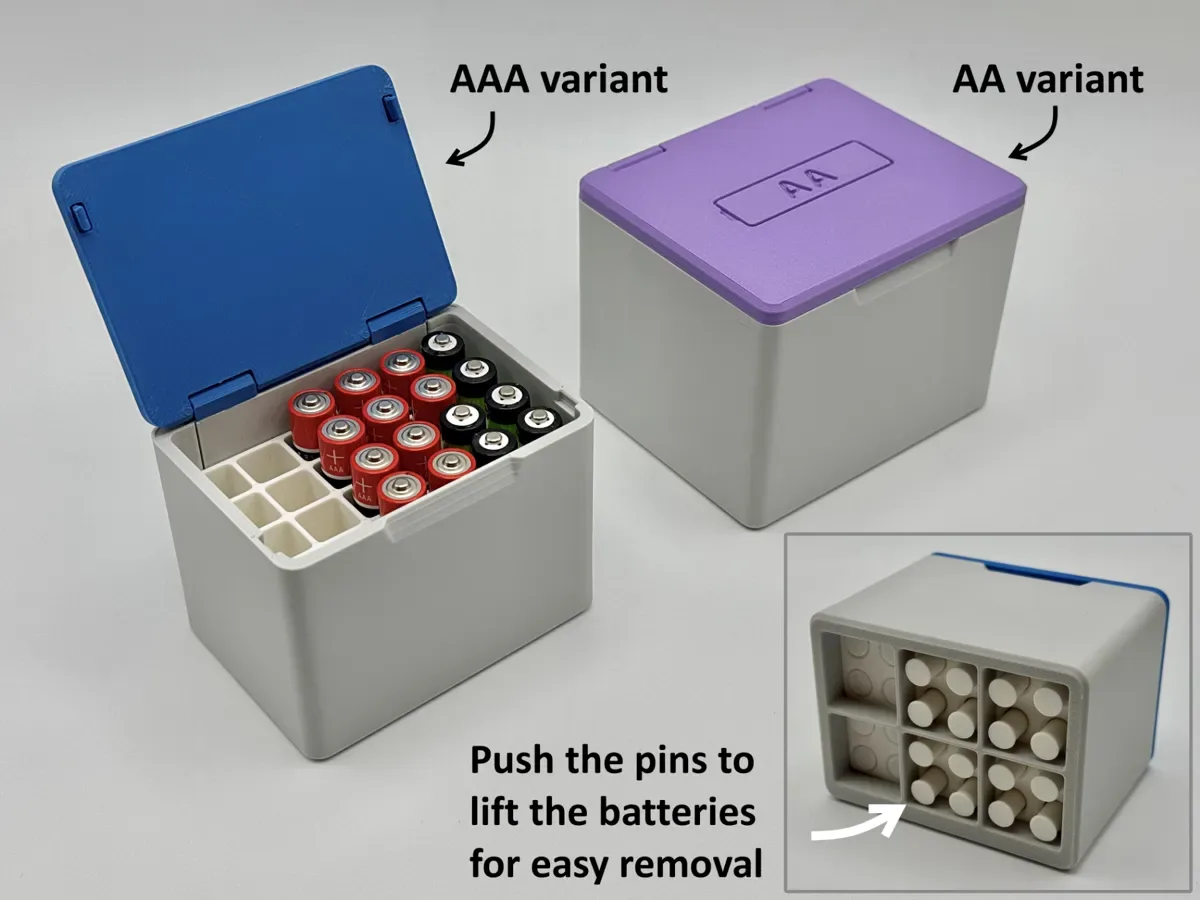

Boost Me (for free) Thanks for your support! Boost Are you also frustrated because it’s hard to remove batteries from traditional battery boxes? With this model, it’s much easier because you can lift the batteries using a pin on the bottom for easy removal. See the GIF in the gallery for a demonstration. The hinge is completely flush, and the lid snaps into place when closed. 2 versions: AAA version for 24 AAA batteries AA version for 20 AA batteries Assembly: Remove the supports from the lid and the brim from the box. Move the hinge of the lid slightly to make it move smoothly. Slide the lid into the box with a little pressure. Usually, no glue is needed. This photo shows the similar parametric variant. Add the battery insert. Print settings: Box: Add discs to the edges to avoid warping. An outer brim will also work. Insert: 0,28mm layer height and wall generator: Arachne. Lid: Activate support for the 3 little pins. Standard is a dual color print to get a clean look. You need an AMS for this print. If you want to print it in single color, you must edit both marked elements to filament 1: Otherwise standard settings Filament: I tested the lid using Bambulab PLA Matte and Bambulab PLA Basic. Both work well. The PLA Basic lid closes a bit harder. If it's too stiff at first, just open and close it a few times. Be careful with the small pins of the snap mechanism when using PLA Matte!
