Silent Treatment MKI - 4 Shot Rubber Band Rifle

Designer

Zurlingo3D

Designer relation

Followed

Kategori

Props & Cosplays

Licens

Standard Digital File License

$ ↺

Se platformens konkrete vilkår.

Designer commercial

Patreon

Først set

2026-07-15 10:58

Sidst set

2026-07-15 10:58

Tags

rubber band rubber band gun silent treatment rubber band rifle rifle toy fun nerf blaster band band blaster

Beskrivelse

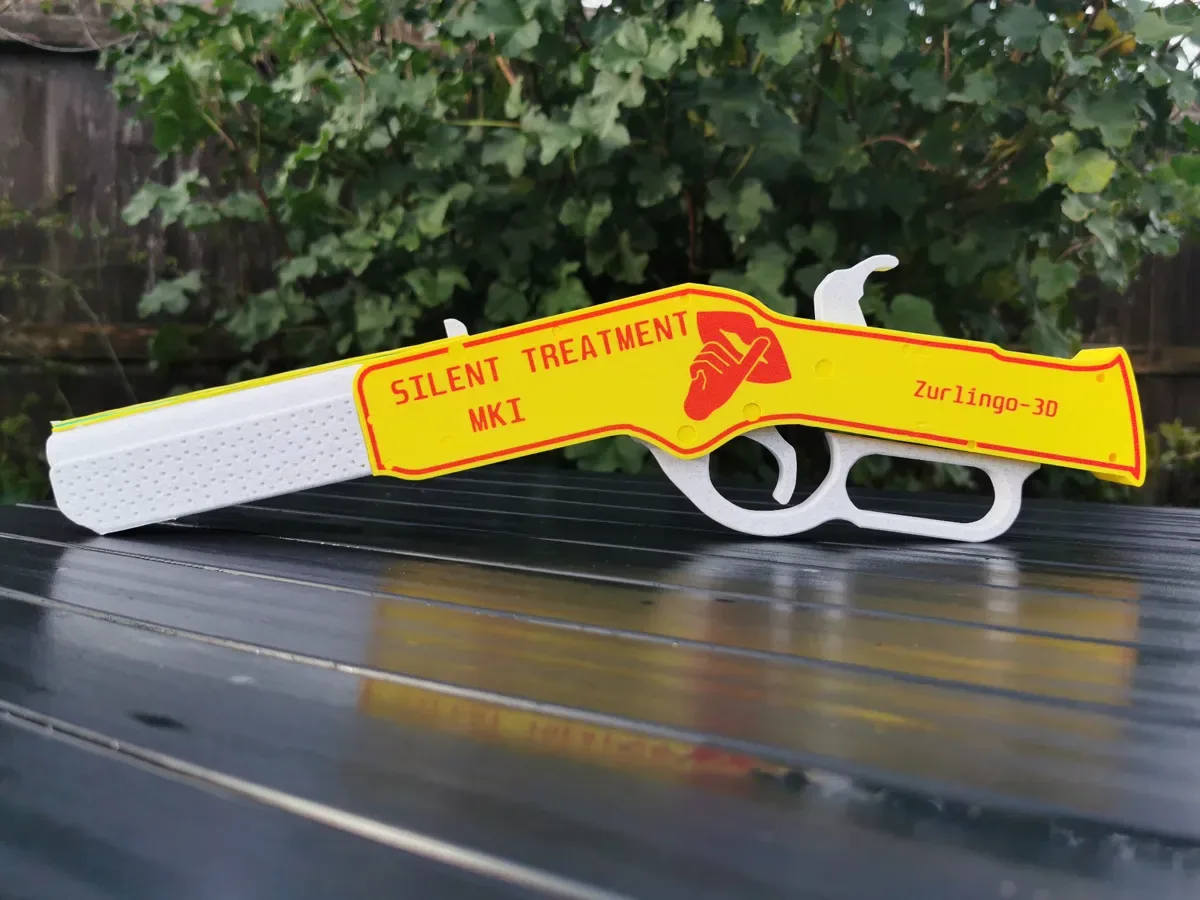

Silent Treatment MKI - 4 Shot, Lever Action, Rubber Band Rifle Features: Simple Push fit assembly Fully 3D printed apart from 1 match stick and some rubber bands Functional lever action design 4 Shot Very accurate Prints in under 8 hours Under 250g of filament Cheap, replaceable ammo A great print at home alternative to Nerf wars ;) Remove all support material before assembly. Sharp side cutters and a long bladed craft knife work best for the hard to reach areas. Assembly (Follow the Gif below): Rubber Band Size: Loading: Animation: Extra Info: You can lube the Slide and any pivot points with a light oil or grease to ensure smooth functionality. Lubing the Rotor also makes loading and firing easier. You can add more bands to the internal mechanism to suit your personal tension preference. This will affect how much force the lever action and hammer take to load. You can use very strong bands for projectiles as long as they're thing enough to rotate around the Rotor. This rifle is built strong and can take a fair amount of tension here. Be careful when removing the Side Plate as it is easy to snap the locator pins in the Main Body, if you don't gently ease it off squarely. You can of course glue the side plate on, but this will stop you being able to replace the internal bands when they eventually wear out. Use of a match stick is my personal preference but anything that will fit in the hole of the rocker and lever will work fine. It must be strong enough to take the pressure of the bands and must be trimmed flush (See assembly gif). Firing and Loading examples with sound: * I'm also in the process of scaling and testing this to suit an A1 Mini build plate, so please follow me to stay updated :) * If you have any issues or suggestions for improvement, please leave a comment below :) Thanks for looking! Please rate and review your printing experience :)
