Capsule Vending Machine

Designer

Zurlingo3D

Designer relation

Followed

Kategori

Tools

Licens

Standard Digital File License

$ ↺

Se platformens konkrete vilkår.

Designer commercial

Patreon

Først set

2026-07-15 10:58

Sidst set

2026-07-15 10:58

Tags

vending machine capsule trade school school accessories teacher

Beskrivelse

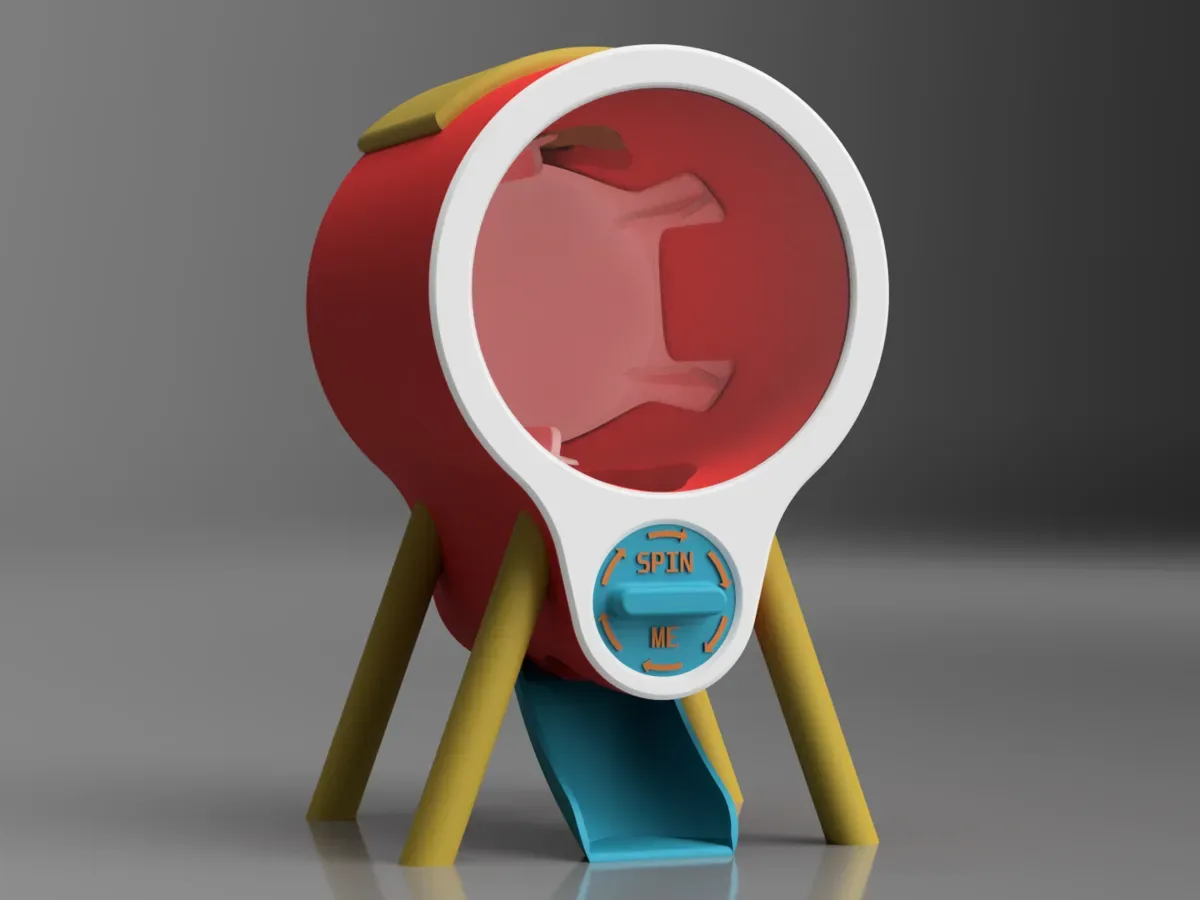

Capsule Vending Machine This vending machine is ideal for selling small prints at trade shows or for teachers to give rewards to students. You could also fill the capsules with tickets that relate to larger models or items that won't physically fit into the capsules. Features: Designed for 50mm capsules. Fully 3D printed apart from 1 acrylic window and the capsules. Simple push fit assembly. Rotating agitator to ensure smooth feeding of capsules. Support free printing. Can be printed on any printer with a bed size of 230mm+. Pre sliced and painted 3MF and all Individual STL's included. Extra Info: Bambu Studio is recommended for trouble free printing when using the included 3MF. All parts are separated within Bambu Studio and ready to print. You can also use the 'Assembly View' to see the full assembly. You can assemble the whole machine by simply pushing the parts together. If the machine will get heavily used then I would recommend adding some strategically placed super glue to the legs and facia. The handle and agitator assembly are threaded together through the main body. Care must be taken no to over tighten these threads during assembly. There should be some in and out movement here to allow for smooth operation. Do not over fill the vending machine with capsules. You should be able to fit 8-10 in there with no issues, but if the agitator becomes stiff while turning the handle, stop and remove 1 or 2 capsules. This is a fairly straight forward print using under 800g total filament. Please refer to the assembly animation above. Link for capsules: https://www.amazon.co.uk/dp/B0D2HQXTMN?ref=ppx_yo2ov_dt_b_fed_asin_title Link for acrylic window: https://www.amazon.co.uk/dp/B0C5J2SXPY?ref=ppx_yo2ov_dt_b_fed_asin_title The above links are from Amazon UK but you should be able to find the identical items in your own Countries Amazon store. Video of it working: If you have any issues please get in touch! Boost Me (for free) If you like this design, please consider giving it a boost :) Every single boost is very much appreciated. Thank you. Boost Thanks for looking! Please rate and review your printing experience :)
