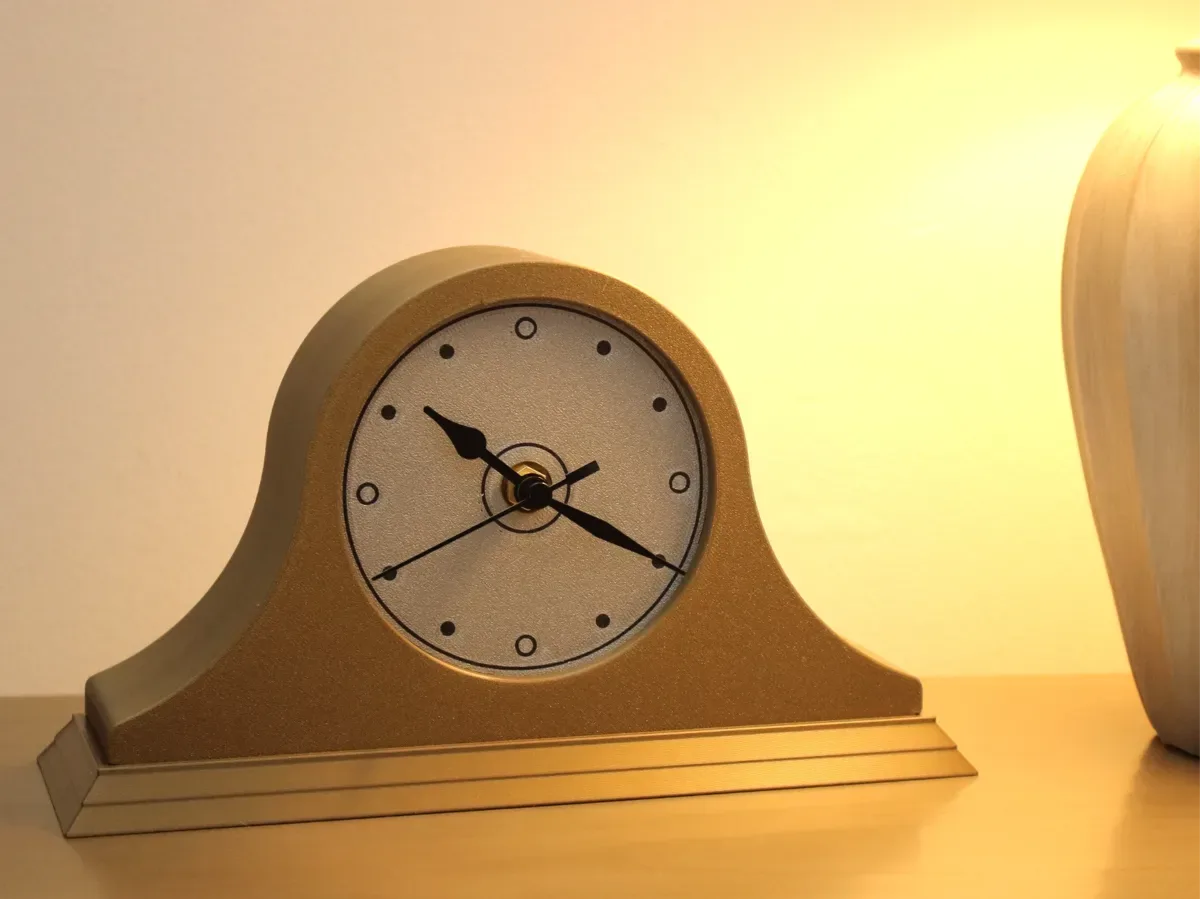

Mantel clock with a classic design. Easy to print and assemble, requiring no fasteners or hardware other than a clock kit. Measures 220mm x 131mm x 60mm, so unfortunately it's just a little too large for the A1 mini. Exploded View Assembly Start by hooking the top edge off one of the shorts ends of the base into the notch on a short end of the clock body. Next rotate the base up to latch the other end onto the clock body. This may take a bit of force. Now place the face into the back of the clock body. The small arrow on the back of the face should to rotated counter-clockwise 30 degrees from vertical to aligned its three notches with the three lugs in the clock. Once the face sits flush with the clock body, rotate it clockwise 30 degrees to lock it into place. Next install the clock movement in through the back ensuring the battery holder is on the bottom. Fix the clock movement in place with the flat brass washer and nut. Press on the hour, minute and seconds hands onto the clock shaft. Add a AA battery (the positive end points to the right) and enjoy!
