Newton's Cradle

Designer

JimLarsen

Designer relation

Followed

Kategori

Education

Licens

Standard Digital File License

$ ↺

Se platformens konkrete vilkår.

Designer commercial

MakerWorld Commercial License

Først set

2026-07-15 10:58

Sidst set

2026-07-15 10:58

Tags

physics science science fair newton newton's cradle

Beskrivelse

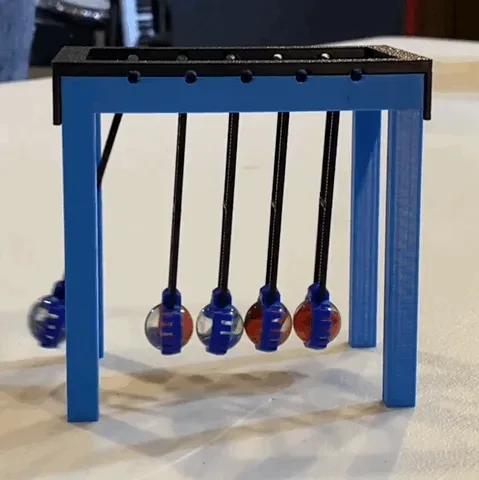

Newton's cradle is a physics demonstration device that illustrates the principles of the conductance of energy, the conservation of energy, the conservation of momentum, and friction. The energy from the end ball dropping is transferred through the stationary balls. When the energy reaches the last ball, the ball swings out. When it swings back it repeats the cycle of transferring energy through the row of stationary balls. Each successive swing is shorter as a result of friction. This model will repeat the cycle about 8 to 10 times before the marbles come to rest. The GIF image has been slowed down to better illustrate the effect. Due to the small scale and low mass of this model it will move through the cycle fairly quickly. Using a cellphone to take a slow motion video is a great way to see the effect in action. These models are traditionally built with heavy steel ball bearings. This example uses standard toy marbles that measure between 15.6mm and 15.8mm. The parts print without supports. Snap the marbles into the marble holders. Snap the marble holders onto the swing arms. Set the swing arms so they hang in the frame. Snap the top cap on to hold everything in place. Pick up the first marble on either end and let it drop. Have fun as you learn about physics. Boost Me (for free) If you like my models, please give them a boost! Your boosts are a great encouragement to me, and help me to keep making more fun models. Boost Membership Click "Join" to make a small donation or to purchase a license for the commercial use/sale of my designs. Thank you for your support. Join
