Dual Axis Motorized Camera Slider

Designer

CE_YT

Designer relation

Followed

Kategori

Hobby & DIY

Licens

Standard Digital File License

$ ↺

Se platformens konkrete vilkår.

Designer commercial

MakerWorld Commercial License

Først set

2026-07-15 10:58

Sidst set

2026-07-15 10:58

Tags

dual axis motorized camera slider noarduino noprogramming mechanical modular phone bolt aluminium profiles universal easytoprint singlecolor multicolor stl 3mf rotation mechanism

Beskrivelse

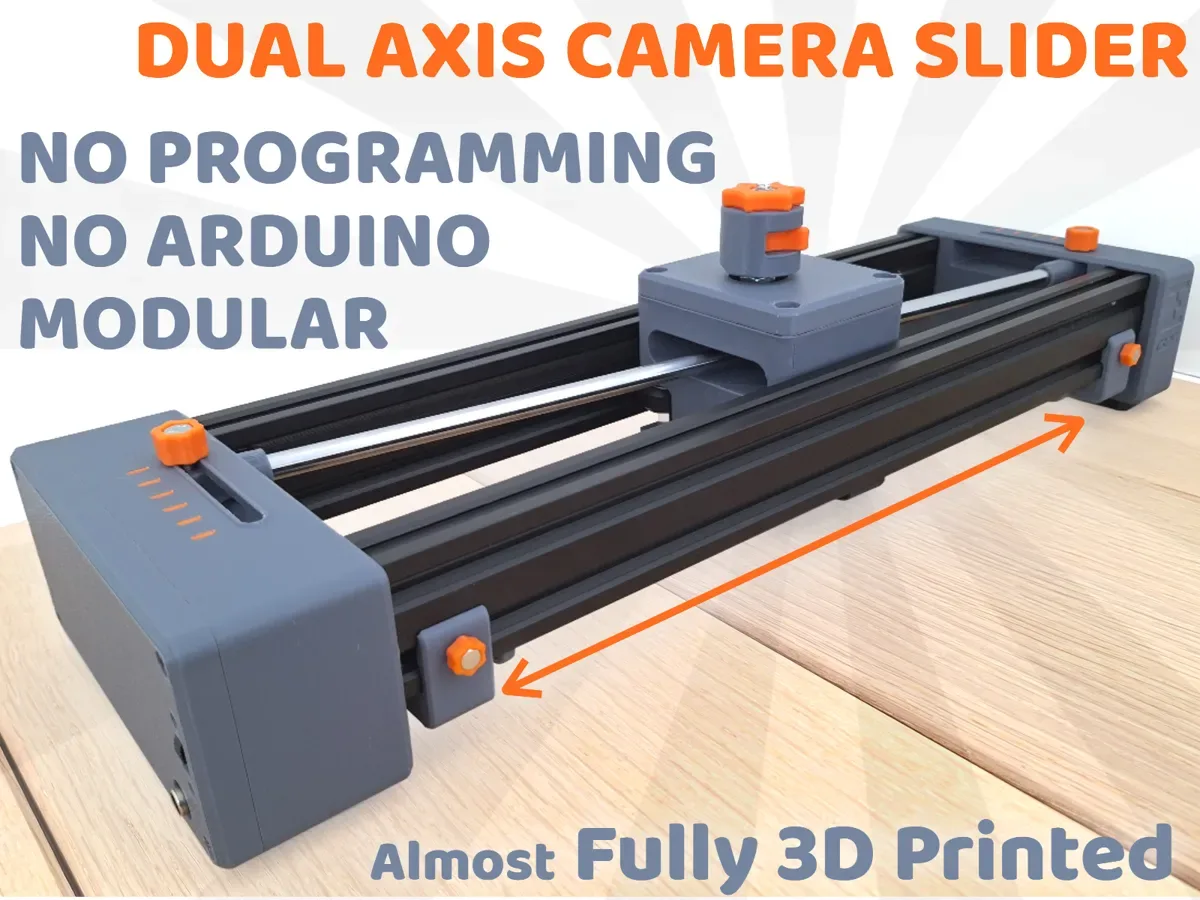

I made this modular motorized camera slider, no arduino or programming needed! Only some simple electronics and nice mechanisms to get 2 axis moving at the same time :) I made an in depth building guide with all the materials you need clearly shown in the video (scroll to the bottom of this page for the Bill of materials/BOM): I also made an exploded view animation so you can see how to put the slider together: Electric scheme: Down here you will only find the links to the electronic parts I used in the project. The hardware parts can be found in the first linked video. I also included a PDF with some drawings with dimensions of different electronic and hardware parts. Number of parts Part name Link to website 2x Mini switch https://www.gotron.be/schuifschakelaar-dubbelpolig-on-on-0-5a-125vac-dpdt.html 1x 12VDC Worm gear electromotor https://www.amazon.de/-/nl/dp/B08QYJG2SK?pd_rd_w=FZ8ZC&content-id=amzn1.sym.f8d7a548-bbf2-44c3-9e1d-c9d9592522cd&pf_rd_p=f8d7a548-bbf2-44c3-9e1d-c9d9592522cd&pf_rd_r=RBY81VMQX798MC6BA2QB&pd_rd_wg=4fe6U&pd_rd_r=aa98d341-2055-4d20-b5dd-50d20746f6da&pd_rd_i=B08QYJG2SK&ref_=pd_bap_d_grid_rp_0_1_ec_pr_pd_hp_d_atf_rp_1_i&th=1 1x 12VDC Connector https://www.amazon.de/dp/B07QLTWQ66?ref=ppx_yo2ov_dt_b_fed_asin_title 1x Potentiometer https://www.amazon.de/dp/B0BLBZ5ZWS?ref=ppx_yo2ov_dt_b_fed_asin_title&th=1 1x JST XH Connector cables (2 pin) https://www.amazon.de/dp/B06WGM9W7S?ref=ppx_yo2ov_dt_b_fed_asin_title 1x JST XH Connector cables (4 pin) https://www.amazon.de/dp/B07PX37XX5?ref=ppx_yo2ov_dt_b_fed_asin_title 1x Steppermotor cable (500 mm) https://www.123-3d.nl/123-3D-Stappenmotor-kabel-4p-6p-JST-50cm-i8338-t13138.html
