Flashforge AD5X - Replacement part cooling fan cover

Designer

Namida Verasche

Designer relation

Ingen

Kategori

3D Printers > Other Printer Parts & Upgrades

Licens

Creative Commons Attribution Open Community License v1.1 + General Attribution v1

$ ↺

Attribution påkrævet.

Designer commercial

None

Først set

2026-07-15 08:10

Sidst set

2026-07-15 08:10

Tags

part cover fan cooling shroud blower adventurer ad5x

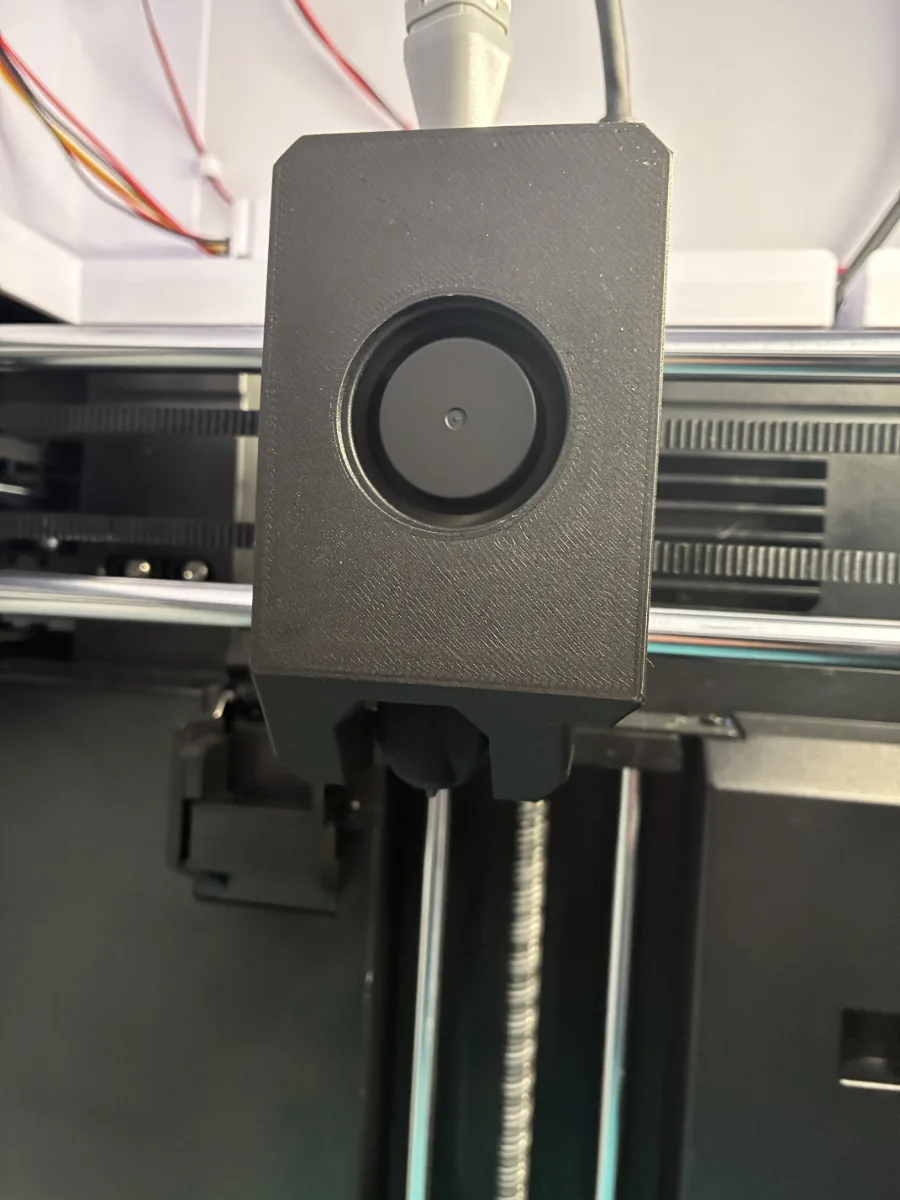

Beskrivelse
